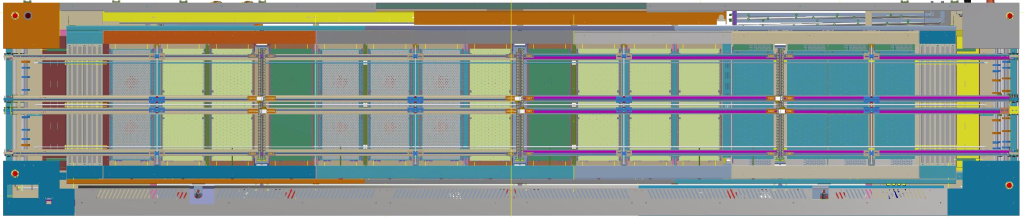

What is the Reflow Oven？
Reflow oven is essential in electronics manufacturing, specifically for soldering components onto printed circuit boards (PCBs) through a controlled heating process. The oven uses temperature profiles to gradually heat and cool the board, ensuring the solder melts and solidifies effectively. This process ensures secure electrical connections and structural integrity for the manufactured product.
Choosing the Right Reflow Oven
Air Reflow Oven Best for General Applications
Air reflow ovens use convection to circulate hot air, making them suitable for a wide range of standard PCB assemblies.
Benefits: Cost-effective and widely available,ideal for medium to large-scale production where basic soldering needs are met.
Considerations: May not be optimal for highly sensitive components due to potential oxidation.
Nitrogen Reflow Oven Optimal for Solder Quality
Thistypeutilizesnitrogengastcreateaninert atmosphere,reducing oxidation during soldering.
Benefits: Enhances solder joint quality and reliability, perfect for products requiring superior finish and precision.
Considerations: Higher operational costs due to the need for nitrogen supply, justified by improved solder quality and fewer defects.
Vacuum Reflow Oven For High-Precision Requirements
Utilizes vacuum technology to eliminate air, greatly reducing voids in solder joints.
Benefits: Essential for high-reliability applications such as aerospace and medical devices where defect tolerance is minimal.
Considerations: Typically more expensive,but necessary for the highest quality standards and critical applications.
Industry Trends and Innovations
Smart Technology Integration
Modern reflow ovens incorporate loT and Al for better monitoring and control, reducing human error and optimizing processes.
Các yếu tố môi trường
With a growing focus on sustainability, reflow ovens are adapting to reduce energy consumption and emissions, including nitrogen and vacuum options.
Customization and Flexibility
Manufacturers are offering more customizable solutions to cater to specific industry needs,improving adaptability and performance.
FAQs
What is a reflow oven temperature profile?
A temperature profile is a controlled path that dictates how the reflow oven heats and cools the PCB during the soldering process,crucial for achieving optimal solder joints.
Why is SMT reflow oven important?
Surface Mount Technology (SMT) reflow ovens are vital for mounting components directly onto PCBs efficiently, supporting the trend toward miniaturization and high-density assemblies.
How does a vacuum reflow oven differ?
Vacuum reflow ovens use vacuum technology to remove air and prevent oxidation during soldering, ensuring cleaner and more reliable connections, especially critical for sensitive applications.
