You face five big mistakes when picking your next smt solution. Picking the wrong one can cause costly delays, extra work, or even failed projects. In electronics manufacturing, a full smt solution is more than just putting a part on a board.
It also means putting all parts together into a full, tested unit.
You check if everything fits, mounts, and looks right, and handle small size differences.
Tests and special checks make sure every part works as it should.
The process includes packing, labeling, and shipping straight to you, so you do not need extra steps.
You get control over the process, with checks and tests for every smaller part.
The solution works for both small and big orders, while keeping quality and records.
You can track every electrical and mechanical part, and see any changes made.
This way, electronics, mechanics, wires, and cases all come together as finished systems.
Think about how you pick your smt solution now. Are you sure you avoid these mistakes, or could hidden problems hurt your next project?
Key Takeaways
Do not pick SMT solutions just because they are popular. Always look at how well they work and what support you get before you buy.
Choose the right parts with all the needed details. This helps stop expensive mistakes and slowdowns during assembly.
Use SMT processes that can change easily. This helps make products faster, wastes less, and makes better products.
Always follow strong quality control steps. Check machines often and inspect parts to find problems early.
Watch solder paste printing and placement closely. This helps stop common assembly issues and makes more good boards.
Technology Hype Trap
Shiny New SMT Solutions
You see new SMT solutions everywhere in electronics. Companies say their newest machines work with smaller, more exact parts very fast. They talk about how these SMT systems help make things smaller, which matters for pcb manufacturing in areas like telecommunications, medical devices, and automotive electronics. You hear about pick-and-place machines that put tiny 0201 chips in the right spot. Vendors also say their SMT equipment can build high-frequency, high-density parts for 5G and IoT devices. They promise special features like precision soldering, automated inspection, and embedded solutions to help your product portfolio.
Note: Marketing talks a lot about speed, precision, and making smaller, lighter devices. You may also hear about better use of space on the PCB, less wiring, and thinner designs. But these claims do not always match what happens in real pcb manufacturing.
Risks of Unproven Tech
You face real risks if you pick an SMT solution just because of hype. New technology may not work as promised in your factory. Some SMT systems have trouble with thermal management or may not fit your current pcb manufacturing needs. If you choose too quickly, you could get equipment that causes delays, costs more, or does not give the quality you want. You might also find that support and training for new SMT machines are not enough, so it is hard to fix problems fast.
Smart Evaluation Steps
You can avoid the technology hype trap by using a clear process for picking SMT solutions:
Check the placement rate. Compare the machine’s speed to what you really need. Lower vendor claims by 40-50% to get a true number.
Make sure the SMT machine can handle your biggest boards and fixtures.
Look at feeder input and slot capacity. Make sure the SMT system fits your component packaging and lets you change parts easily.
Test accuracy and repeatability. Look for steady placement within tight limits, especially for fine-pitch parts.
Check software features. Easy programming and simple controls save time and cut down on mistakes.
Find out about service, support, and training. Good support and training help you avoid downtime and keep your SMT line working.
Use a detailed questionnaire and scoring system. This helps you compare SMT solutions fairly and pick the best one for your needs.
If you focus on facts and match SMT features to your real production goals, you will make a smarter choice and avoid costly mistakes in pcb manufacturing.
Component Selection Mistakes
Common Pitfalls in Component Selection
You must be careful when picking parts for every smt project. Many teams make the same mistakes, which can cause big problems in smt assembly. Here are some of the most common mistakes:
If you do not have orientation data, like pin 1 or cathode marks, parts can go in the wrong way and not work.
If you leave out manufacturer part numbers in your bill of materials, you might get the wrong parts or have trouble buying them.
If you do not include datasheets for things like resistors, capacitors, or memory chips, it is hard to check if the parts are right.
If there are not enough parts, smt assembly gets delayed and you may need to use different parts that might not fit your design.
These mistakes can mess up pcb manufacturing and make your final product work worse.
Impact on SMT Assembly
Picking the wrong parts can hurt smt assembly yield and cost more money. Even small mistakes, like using the wrong footprint or missing data, can cause problems like putting parts in backwards, breaking parts, or leaving parts out. These problems lower first pass yield and make you spend more to fix things. The table below shows how different mistakes can cost you:
Error Type | Average Cost Impact |
|---|---|
$2,800 | |
Mixed Technology | $1,750 |
Thermal Violations | $4,200 |
Detection Stage | Average Repair Cost |
|---|---|
Component Storage | $0.85 |
Post-SMT | $4.20 |
Final Assembly | $17.50 |
Field Failure | $420+ |
You can see that if you find a mistake later, it costs more to fix. These errors also make smt assembly yield go down, which means more waste and worse performance.
Best Practices
You can stop these problems by following good smt assembly steps and picking parts wisely. Here are some things you can do:
Always give full orientation data and manufacturer part numbers for each part.
Add datasheets for all parts to your paperwork.
Check if parts are easy to get before you finish picking them, so you do not run out.
Use a checklist when picking parts to catch missing or wrong details.
Go over your part choices with your smt supplier to make sure they work with their process.
Smart part picking helps your product work better, saves money, and lets you follow the best smt assembly steps in pcb manufacturing.
Design Inflexibility
Problems With Old SMT Processes
You might like your current smt process. But using old ways can slow your business down. Old smt systems often break up data and do not connect machines well. This makes it hard to see what is happening right now. Without this, you cannot find problems fast or make things better. Your team spends more time fixing issues and less time making things work better. Old equipment and bad connections also make it hard to handle many product types or pass checks. These problems cause more downtime and lower how many good products you make. It also makes it harder to track parts. If you keep using old ways, you have fewer smt choices and your results get worse.
How Inflexibility Stops New Ideas
If your smt process cannot change, you cannot try new things. You miss out on cool features and smart tools. You cannot use things like predictive maintenance or smart scheduling. These are important for modern factories. Bad connections mean you cannot make things work better or choose the best options. Your products may not keep up with others. You also pay more and have more mistakes because you cannot use new parts or layouts. If you cannot share data in a standard way, your results stay below what others can do.
Why Flexibility Matters
You can do better by picking flexible smt design ideas. Flexible smt lets you use machines that place parts, special soldering, and AI checks. These tools help you put many parts on boards quickly and correctly. You can make tricky designs and use tiny parts for new uses. This makes your work faster and saves money. You also waste less material and need fewer workers. The table below shows how flexible smt helps:
Benefit | Measurable Impact / Description | Example / Detail |
|---|---|---|
Faster Assembly Times | Up to 50% less time than old ways | Standard designs save time by skipping custom changes |
Reduced Material Waste | Scrap drops by as much as 30% | Better part placement and routing follow IEC rules |
Lower Labor Costs | Labor costs drop up to 40% for big jobs | Machines mean fewer workers and fewer mistakes |
Scalability | Easy to make lots of the same SMT design | Example: same 4-layer PCB made thousands of times with good results |
Defect Rate | Less than 0.5% defects with automated SMT | Standard stencils and heat steps keep quality high |
Inspection Accuracy | AOI finds over 95% of mistakes | Makes sure you meet IEC quality rules |
Precision and Consistency | Parts placed within 0.025 mm; tight limits of 0.1 mm | Follows IEC rules to stop short circuits |
Thermal and Electrical Performance | Better heat control and lower resistance (under 50 ohms) | Meets IEC rules for EMC |
Time-to-Market | Production is 30% faster than old ways | Gets products out quicker and still meets IEC rules |
When you pick flexible smt, you get faster builds, better part placement, and better checks. You also get better heat and electrical results, so your products meet tough rules. Flexible smt lets you react fast to market changes and launch new products quickly. You can use new tools like AI, 3D printing, and tiny parts to do even better and beat others. By choosing flexible smt, your business can grow and try new things without limits.
Quality Control Gaps in SMT
Overlooking QC Steps
You may think your smt line works well, but missing one quality check can cause big trouble. Some teams skip audits or forget to set up machines right. If you do not check stencil tension or oven heat, you might get bad solder or parts in the wrong place. AOI systems can find over 99% of visible mistakes, like misplaced parts or solder bridges. But you must use AOI at every important step. You also need to track each part with barcodes or MES to find problems fast. If you skip these steps, you lose control and get fewer good boards.
Defect Risks
Quality control gaps often happen because of poor training, bad equipment care, or weak material storage. If workers are not trained, they may miss mistakes or not stop the line when needed. Machines that are not checked or fixed can cause bad solder or miss errors. If you store solder paste or parts wrong, they can go bad and cause weak joints. The table below shows common gaps, what goes wrong, and how to fix it:
Quality Control Gap | Typical Issue | Impact on Yield | Solution |
|---|---|---|---|
Operator Training | Not enough skills | More mistakes, more defects | Give training and tests often |
Equipment Calibration | Missed checks | Bad solder, missed errors | Plan regular checks and fixes |
Material Storage | Wrong temp or humidity | Solder balls, weak joints | Keep storage controlled, use FIFO |
Environmental Conditions | Bad temp, humidity, or lighting | Parts fall off, more defects | Watch conditions, keep area clean |
Rework Process | No clear rules | Repairs not tracked, backlog | Set rules, mark fixed parts |
If you ignore these risks, you get fewer good boards and spend more time and money fixing things.
Ensuring Reliable SMT
You can fix quality gaps by following good steps. Use AOI with clear cameras and AI to catch almost all visible mistakes. Add X-ray checks to find hidden solder problems under BGAs. Have people check by eye at key points to catch what machines miss. Check and set up all machines often to keep them working right. Follow rules like ISO 9001 and AS 9100 to set a strong base for quality. Train your team with hands-on lessons about fixing problems and checking data. These steps help your team focus on making smt yield better and keeping mistakes low. When you write down every step and use tracking tools, you can find and fix problems fast. If you make quality checks a daily habit, you protect your smt process and get more good boards.
SMT Assembly Defects

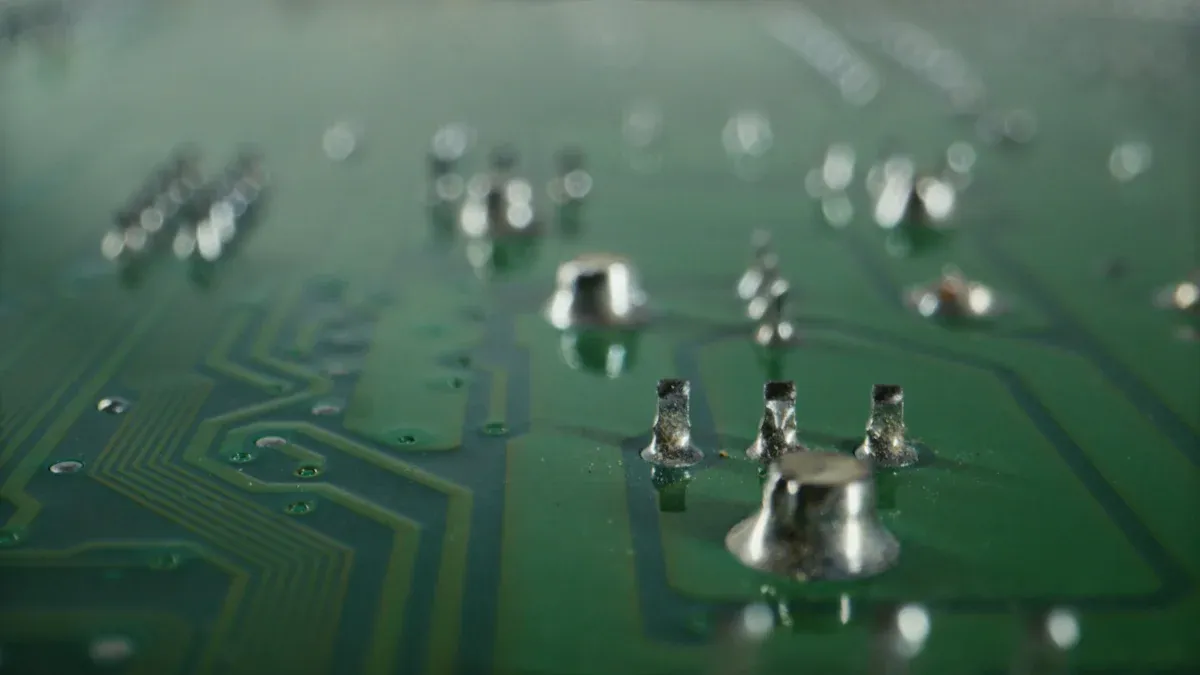

Solder Joint Issues
There are many solder joint problems in smt assembly. These problems can make fewer good products and hurt how long things last. The table below lists the most common defect types, what causes them, and how to fix them:
SMT Defect Type | Description / Characteristics | Common Causes / Factors | Potential Solutions |
|---|---|---|---|
Solder Beads | Small solder balls around chip components. | Solder paste quality, improper stencil design, excessive placement pressure, wrong furnace temperature. | Control solder paste volume, optimize preheat, reduce placement pressure. |
Tombstoning | One end of a chip stands upright, like a tombstone. | Uneven heating, uneven solderability, misplacement, unbalanced solder forces. | Cover >50% of pads, high placement accuracy, maintain preheat, minimize movement during reflow. |
Empty Soldering (Parts Lifting) | Leads are warped or tilted, causing incomplete joints. | Warped leads, uneven solder, foreign matter, not enough solder. | Use flat leads, ensure even solder, keep area clean, check solder volume. |
Non-wetting / De-wetting | Solder does not stick to pads or leads, causing weak joints. | Poor PCB finish, exhausted flux, not enough heat. | Use better surface finishes, reduce profiling time, use proper flux. |
Most solder joint problems happen because of bad solder paste printing or not watching the process. About 64% of smt problems start with solder paste mistakes. If you do not fix these soon, you will have to redo work and get fewer good boards.
Placement Accuracy
Placement accuracy is very important for smt assembly. If you put a part in the wrong spot, you can get short circuits or open circuits. These problems mean you make fewer good boards and spend more money. You need to keep machines checked and use vision systems. Good placement means each part lines up with the PCB pads. This helps stop soldering problems like bridging and cold joints. When you place parts well, your boards work better and last longer.
If parts are not lined up, signals can be weak.
Bad placement can cause soldering problems and make things break sooner.
You get more good boards if you manage machines, materials, and steps.
Using fiducial marks helps machines put parts in the right place and saves time.
Getting more good boards depends on how well you control placement at every step.
Preventive Measures
You can stop most smt assembly problems by following good smt assembly steps. Start with even solder paste printing and keep the paste at the right temperature and humidity. Make sure stencil holes match fiducial marks for good placement. Use AOI and flying probe tests right after solder paste printing to find problems early. Check and fix your placement machines often. Change your reflow soldering profile to make sure solder melts and cools the right way.
Here are some important steps:
Keep solder paste printing even.
Stop oxidation on PCB pads and copper traces.
Match stencil holes with fiducial marks.
Watch solder paste mixing and temperature.
Keep workshop temperature and humidity steady.
Use AOI and flying probe tests after solder paste goes on.
Check SMD machines and fix problems often.
Set reflow soldering temperature and profile right.
Look at solder joints for shape and problems.
Stop bumps and hits during soldering.
If you follow these good smt assembly steps, you will have fewer problems, get more good boards, and make your products last longer. Getting more good boards starts with strong process control and finding problems early.
You can stop expensive mistakes if you avoid these five traps when picking your next smt solution. Use these tips as a simple checklist to help you choose.
Check for certifications, look at the equipment, and see if quality systems are in place.
Be careful about extra costs and handle design changes early to save money later.
Find expert help, like MCC’s selection guides or SMTFactory.com, for more support.
Ways Smart SMT Choices Save Money Over Time |
|---|
Skip hidden costs and big engineering changes |
Save lots of money by finding design problems early |
Pay less overall by checking every cost |
Tell us what you have learned or ask for expert help. Picking the right smt solution means better quality, fewer slowdowns, and real savings.
FAQ
What is a full SMT solution?
A full SMT solution means every step is included. You get part placement, soldering, and checking. Testing, packing, and shipping are also part of it. This makes sure you get finished products that are ready to use.
How do you check if an SMT provider meets quality standards?
You should ask for certifications like ISO 9001 or IPC-A-610. Look at their inspection reports and audit results. Good providers use AOI and X-ray checks to find problems early.
Why does component selection matter in SMT?
Picking the right parts helps with yield, cost, and reliability. If you pick wrong parts, you can have delays and higher repair costs. Bad parts can also make your product work poorly. Always give full part numbers and datasheets.
What are the most common SMT assembly defects?
You often see solder beads, tombstoning, and non-wetting joints. These problems happen from bad solder paste printing or wrong placement. Wrong temperature settings can also cause them. Regular checks and good control help stop these problems.
Can you scale production with a flexible SMT solution?
Yes. Flexible SMT systems work for small and big orders. You can switch between products fast. This helps you meet new market needs and have less downtime.
