You want your electronics line to work well and make good products. Picking the right wave soldering machine is very important. New machines help you find problems early, like heat changes or parts not lined up. This means you get fewer mistakes and save money. You can control heat and solder flow better, so your process stays steady. A wave soldering machine that saves energy and uses automation also cuts costs and helps you work in different ways.
Key Takeaways
Pick a wave soldering machine that matches your PCB size and parts. This helps stop jams and bad soldering.
Choose a machine with the right speed and features for your work. It should fit how much you make each day. This helps your work stay fast and reliable.
Use nitrogen wave soldering for cleaner joints and fewer mistakes. This is important for high-quality or lead-free soldering.
Find machines with good preheating, flux control, and safety features. These help make better solder and keep your team safe.
Take care of your machine with daily and regular checks. This lowers downtime and helps your machine last longer.
Wave Soldering Machine Basics
What Is a Wave Soldering Machine
A wave soldering machine helps you join electronic parts to a printed circuit board (PCB) quickly and reliably. You use this machine in pcb assembly to make strong connections between components and the board. The machine works by creating a wave of molten solder. Your PCB moves on a conveyor through different zones that heat and prepare it for soldering.
Here is how the main parts of a wave soldering machine work together:
The PCB mounting system holds and moves your board smoothly.
The flux coating system sprays a special liquid on the board to clean and prepare it for soldering.
The preheating system warms up the board and parts, making sure the solder sticks well.
The welding system forms a wave of hot solder. Your board passes through this wave at just the right angle and depth.
The electrical and mechanical systems control the temperature and movement, keeping everything steady and safe.
Tip: Modern wave soldering machines often use double waves and special wave shapes to improve soldering quality and reduce errors.
Why Use Wave Soldering in PCB Assembly
You choose wave soldering for pcb assembly because it saves time and gives you strong, reliable joints. This method works best for boards with many through-hole parts. You do not need to apply solder paste or mask areas that do not need soldering, which makes the process simpler.
Advantage | Explanation |
|---|---|
You can solder many boards at once, which speeds up production. | |
Strong joints | The wave covers all pins, making solid connections. |
Less warping | The short contact with the wave keeps your boards flat. |
Cost-effective | You save money on labor and materials. |
Easy to use | The machine is simple to operate and maintain. |
You get better results with less effort when you use a wave soldering machine for your pcb assembly. The wave soldering process uses a wave of molten solder to cover all the parts at once, making sure every joint is strong and reliable.
Key Selection Criteria
PCB Size and Compatibility
You have to pick a machine that fits your PCB size. Every machine has a smallest and biggest board it can use. If your board is too big or too small, it will not work right. Most machines can handle boards from 50mm x 50mm to 350mm x 350mm. The board can be 0.5mm to 6mm thick. It can weigh up to 5kg. You also need to check the tallest part on your board. Most machines allow up to 100mm on top.
Parameter | Value Range |
|---|---|
Minimum PCB Size | 50mm x 50mm |
Maximum PCB Size | 350mm x 350mm |
PCB Thickness | 0.5mm to 6mm |
Maximum PCB Weight | Up to 5kg |
Max Component Height | Up to 100mm (top) |
If you use many board sizes or want to change products, pick a flexible machine. Some machines, like the Nitrogen/Air Wave Solder, can handle boards up to 450mm wide. This gives you more choices for new projects. Always look at these numbers before you buy. This helps your soldering go smoothly and your pcb assembly work well.
Tip: If your PCB fits the machine, you avoid jams and bad soldering.
Production Volume
Production volume means how many boards you need to solder each day. If you make lots of boards, you need a fast machine. Conveyor speed is usually between 0.5 and 2.5 meters per minute. Faster speeds help you finish more boards quickly. But if you go too fast, you might get bad joints or solder bridges.
New machines let you change conveyor speed, preheat, and wave time. This helps keep the board top between 200°F and 210°F. That is important for good soldering. Some machines, like the Nitrogen/Air Wave Solder, can move boards from 400 to 1800 mm/min. This lets you work with both small and big batches.
If you make many boards, look for features like automatic flux, modular design, and alarms. These help you work faster and stop problems before they get big.
Component Types
Think about what parts you use in your pcb assembly. Wave soldering works best for through-hole technology parts. These are things like connectors, capacitors, and DIP ICs. They have leads that go through the board and need strong joints. You can also use wave soldering for some big surface-mount parts if reflow soldering does not work.
Wave soldering works well for:
Through-hole connectors
Capacitors and resistors
DIP ICs
Large power devices (sometimes)
High pin count connectors
Wave soldering does not work well for:
Very thin PCBs (less than 1.6mm)
Parts that cannot take high heat
If you use both types of parts, you may need both reflow and wave soldering. Use reflow for small surface-mount parts. Use wave for through-hole parts. Make sure your machine can handle heat and control the process well to stop defects.
Air vs. Nitrogen Wave Soldering
You can pick air or nitrogen wave soldering machines. Nitrogen machines make a special gas that pushes out oxygen. This stops oxidation and makes solder joints stronger. Nitrogen also cuts down on splatter and keeps the wave steady. You get cleaner joints and fewer mistakes. Nitrogen wave soldering can make you work 30% faster and cut solder bridges by half. It can also lower your costs by about 20%. Air wave soldering is easier and cheaper, but you might see more oxidation and mistakes.
Note: If you need very good quality, like for cars or medical devices, nitrogen wave soldering is better.
Advanced Features for Better Soldering
Modern machines have new features that help you work better and faster. Here are some features to look for:
Advanced Feature | Benefit |
|---|---|
Modular Design | Lets you add more parts for bigger jobs and easy fixes. |
Gives you exact heat control and easy use from both sides. | |
Preheating Zones | Many zones keep the board warm and even for better soldering. |
Automatic Flux Addition | Keeps flux steady for the same soldering every time. |
Intelligent Control | Uses smart systems for steady work and easy setup. |
Safety Alarms | Warn you fast about heat, speed, or wave problems. |

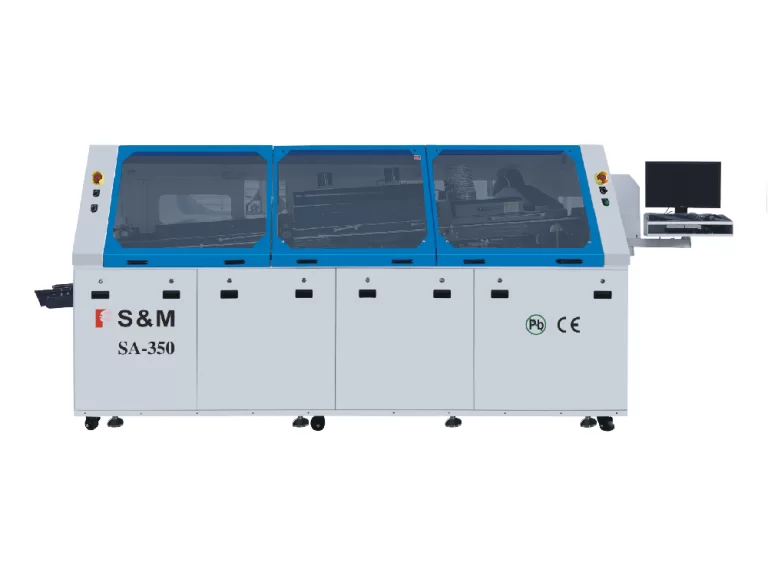

The Nitrogen/Air Wave Solder has many of these features. Its modular design makes fixing it easy and saves time. The electric tin furnace and preheating zones help heat the board evenly and make strong joints. Real-time alarms and automatic flux keep your soldering safe and steady.
When you pick a machine, match its features to your pcb assembly needs. This helps you get the best results for big jobs, mixed lines, or special projects. Picking the right machine means better soldering, fewer mistakes, and faster work.
Soldering Machine Features
Preheating Systems
A good preheating system helps make strong solder joints. Preheating slowly warms up your PCB. This stops thermal shock, which can hurt parts or bend your board. Preheating also gets rid of water and bad stuff. When pads and pins are warm, solder flows better and sticks well. You get fewer cold joints and cracks. Most machines use infrared, hot air, or contact heaters. You can set the temperature and time. It is usually between 100°C and 150°C for a few seconds or minutes. The right settings match your conveyor speed and flux needs. This keeps your soldering steady and your results the same.
Preheating Aspect | Effect on Soldering Quality and Process Stability |
|---|---|
Prevent thermal shock | Stops sudden changes that hurt parts or PCBs |
Remove moisture | Stops bubbles and holes in solder joints |
Increase wettability | Helps solder flow and stick for strong joints |
Reduce temperature gradient | Keeps board heat even, so there are fewer problems |
Remove impurities | Lowers the chance of problems during soldering |
Flux Application
Flux is very important in wave soldering. It cleans metal and helps solder stick to pins and pads. You can use spray or foam fluxers for a thin, even layer. The type of flux—rosin, no-clean, or water-soluble—depends on your board and parts. Good flux removes oxides and stops problems like bridging or missed joints. If you use the right amount and type, you get better wetting and fewer issues. Preheating makes the flux work better, so joints are stronger. Always clean off extra flux after soldering to stop rust and keep boards working well.
Use spray or foam fluxers for even coverage.
Pick the right flux type for your board and parts.
Make sure flux is strong enough to clean but not leave too much.
Clean off leftover flux after soldering for long-lasting boards.
Solder Wave and Furnace
The wave and furnace design affects how good your solder joints are. The solder pot heats the solder to about 265-270°C for lead-free soldering. A pump makes the wave, which touches only the bottom of your PCB. You must control the wave height and conveyor speed. The board should touch the wave for 2 to 4 seconds. This covers all pins with solder but does not let it go to the top. Some machines use one wave for simple boards. Dual waves work better for hard boards. Dual waves help remove extra flux and make cleaner, stronger joints. Good design and control mean fewer problems and better soldering.
Control and Safety
Modern soldering machines use smart controls and safety features. Sensors watch the wave height and change things if needed. Automatic systems keep the conveyor moving at the right speed. Safety features like electrostatic protection, smoke removal, and standby modes keep you safe and save power. Forced air cooling helps boards cool fast after soldering, so they do not get heat damage. Regular checks and calibration keep your machine working well and stop problems early. These features make your soldering steady, safe, and efficient.
Matching to PCB Assembly Needs
Board Density and Layout
When picking a wave soldering machine, think about your board’s parts and layout. Boards with lots of tiny parts close together are called high-density boards. These boards usually need reflow soldering. Reflow soldering gives better control for small surface mount parts. If your board has mostly through-hole parts and a simple design, wave soldering is a good choice. Wave soldering is fast and works well for making many boards at once.
If your pcb assembly uses both surface mount and through-hole parts, you might need both soldering methods. Use reflow soldering for the surface mount parts. Use wave soldering for the through-hole parts. This way, each part gets the best soldering process. Wave soldering machines are great for making lots of simple boards with many through-hole parts. You must watch the wave height, conveyor speed, and temperature closely. If your board design is more complex, you need to be extra careful with these settings to stop mistakes.
High-density boards with tiny parts need reflow soldering for accuracy.
Boards with mostly through-hole parts are best for wave soldering.
Boards with both types of parts often use both soldering methods.
Wave soldering machines are good for making many simple boards.
Careful control is needed for boards with lots of parts or tricky layouts.
Tip: Always look at your board’s layout before picking a wave soldering machine. This helps you choose the right machine for your pcb assembly.
Leaded vs. Lead-Free Soldering
You need to pick between leaded and lead-free soldering for your pcb assembly. Each type has its own needs and effects on your work. Leaded solder melts at a lower temperature. It is easier to use and less likely to hurt sensitive parts. Lead-free solder needs more heat. This can make soldering harder and might damage some parts.
Here is a table to help you compare the two:
Parameter | Leaded Solder | Lead-free Solder |
|---|---|---|
Melting Point | Lower (~183°C), easier to use | Higher (~218°C), needs more heat |
Wettability | Better, faster wetting | Lower, slower wetting |
Joint Reliability | More reliable | Can be less reliable |
Health & Environment | Toxic, restricted by RoHS | Safer, eco-friendly |
Cost | Cheaper | More expensive |
Corrosion Resistance | Lower | Higher |
Impact on Components | Less heat damage | More heat can damage parts |
If you use lead-free soldering, you might want to add nitrogen to your wave soldering machine. Nitrogen helps stop oxidation and makes solder joints stronger. Some machines have special nozzles and features to help with hole fill and wave contact time. These options help you keep good quality in your pcb assembly, even when using lead-free solder for many boards.
Lead-free soldering needs higher heat and longer time in the wave.
Nitrogen helps make soldering better and stops oxidation.
Special features like automatic flux and new nozzles help with hard boards.
Note: Always check if your products must follow rules like RoHS. These rules may mean you have to use lead-free soldering.
Automation and Integration
Automation and integration are important in today’s wave soldering machines. If you want to make more boards and have a flexible pcb assembly, look for machines with smart automation. Fully automatic machines use robots, cameras, and smart controls. These features let you run the whole process with little manual work. You get faster work, better accuracy, and fewer mistakes.
Semi-automatic machines still need some manual steps. They are good for smaller jobs or when you change products often. If you want your wave soldering machine to work with other machines, pick one with good integration. This lets you watch your process live, change settings fast, and track your work.
Advanced automation features include:
Automatic wave height control for steady soldering.
Programmable flux for even coverage.
Nitrogen tunnels to cut down on mistakes and make better joints.
Data logging for tracking and checking quality.
Automatic flux addition for the same results every time.
These features help you have less downtime, better products, and quick changes for new pcb assembly needs. You can handle tricky or mixed boards with less work. Automation also saves money on labor and makes delivery times shorter, so you work faster.
Optional Feature | Description |
|---|---|
Makes a cleaner, more reliable soldering environment by reducing oxidation. | |
Automated Flux Dispenser | Applies flux with precision for better solder joints. |
Traceability System | Tracks products through each stage for better quality control. |
Vision System | Ensures accurate alignment for robotic soldering. |
Tip: For tricky or mixed pcb assembly, look for machines with nitrogen, automatic flux, and data logging. These features help keep your soldering steady and your results the same.
Support and Maintenance
After-Sales Service
When you buy a wave soldering machine, good after-sales service is important. It helps your production line work well every day. Good companies give you different kinds of help:
You get help with fixing and taking care of your machine. This lets you fix problems fast and keeps your line moving.
Your supplier answers quickly, so you can fix things before they slow you down.
You can get spare parts when you need them, so you do not have to wait a long time for repairs.
These services help you keep your soldering quality high and your machine working well.
New features like real-time checks and exact temperature control work best if you have expert help.
Warranty and spare parts also change how much your machine costs over time. The table below shows how new and used machines are different:
Feature | New Equipment | Used Equipment |
|---|---|---|
Initial Cost | Higher | Lower |
Warranty | Included | Limited or Absent |
Spare Parts Availability | Readily Available | May Be Limited |
Maintenance Costs | Lower Short-Term | Higher and Unpredictable |
Reliability | Higher | Lower |
Downtime | Less Likely | More Likely |
Picking a new wave soldering machine with good support helps you avoid extra costs and keeps your line running.
Maintenance and Downtime
Doing regular maintenance helps your wave soldering machine last longer and stops downtime. You should follow a plan for daily, weekly, and monthly jobs:
Clean the solder pot, check the flux system, and look at the conveyor every day. This helps you find small problems early.
Check sensors, look for worn parts, and update software each week. These steps help your soldering stay accurate.
Deep clean and check electrical parts every month. This stops dirt and electrical problems.
Companies that do these things get machines that last 20% longer and have 15% less downtime. If you skip maintenance, your machine might break suddenly and cost more to fix. You can also stop downtime by:
Using good materials and keeping the machine clean.
Making rules for solder temperature, conveyor speed, and flux use.
Using automatic checks to find problems early.
If you take care of your wave soldering machine, you get better results, fewer stops, and a machine that works longer.
Picking the best wave soldering machine helps you reach your goals. First, check your PCB size, parts, and how many boards you make. Find machines with smart controls and steady movement. Make sure the flux goes on evenly. Think about what you might need later, like new board shapes or more automation. Good support and easy fixes help your line keep working.
Ask experts or trusted suppliers for advice that fits your needs. Look at your production line carefully so you can choose a machine that helps your business grow.
FAQ
What is the main benefit of using a nitrogen wave soldering machine?
You get cleaner solder joints and fewer defects. Nitrogen keeps oxygen away from the solder. This stops oxidation and helps you make stronger, more reliable connections.
How often should you maintain your wave soldering machine?
You should check and clean your machine every day. Do deeper checks each week and month. Regular care helps your machine last longer and keeps your production line running smoothly.
Can you use wave soldering for all types of PCBs?
Wave soldering works best for boards with through-hole parts. It does not suit fine-pitch surface-mount parts or very thin boards. Always check your board type before choosing this method.
What safety features should you look for in a wave soldering machine?
Look for alarms, emergency stops, and temperature controls. These features help you avoid accidents and protect your team. Good machines also have covers and sensors for extra safety.
How do you choose the right machine size for your production line?
Check your largest PCB size and production volume. Pick a machine that fits your biggest board and can handle your daily output. This helps you avoid jams and keeps your process efficient.
