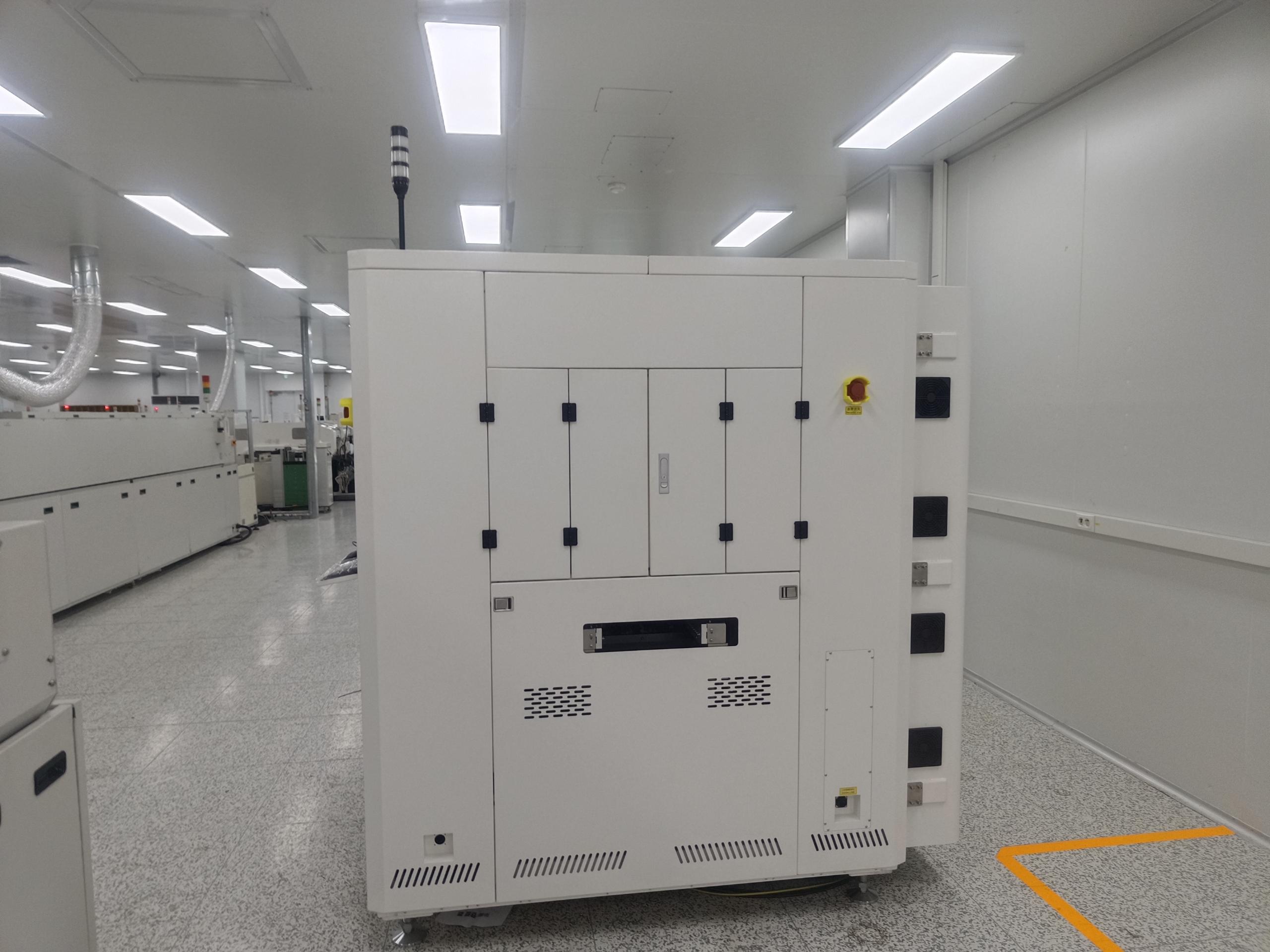

A curing oven in electronics manufacturing creates a controlled environment to cure adhesives, sealants, and encapsulants. This process uses precise temperature and humidity to ensure strong, reliable bonds in electronic devices. Many factories now use advanced ovens with features like AI-powered monitoring, which help reduce defects and improve product quality. These ovens play a vital role in chip packaging, surface-mount technology, and semiconductor fabrication.
Key Takeaways
-
Curing ovens create controlled heat and humidity to harden adhesives and coatings, ensuring strong bonds in electronic devices.
-
Precise control of temperature, time, humidity, and atmosphere prevents damage and improves product quality and reliability.
-
Batch ovens suit small runs and varied parts, while continuous ovens handle large volumes with faster, consistent curing.
-
UV and IR ovens cure materials quickly using light energy, protecting heat-sensitive components and saving energy.
-
Regular maintenance and choosing the right oven features help manufacturers achieve safe, efficient, and high-quality curing results.
Curing Oven Basics
Definition
A curing oven is a specialized machine that heats materials to specific temperatures for a set period. In electronics manufacturing, this oven creates a controlled environment that helps adhesives, sealants, and coatings harden and bond. The oven uses precise temperature and humidity settings to ensure that each material cures correctly. Many factories rely on curing ovens to process sensitive electronic components without causing damage. These ovens often feature advanced controls that maintain uniform heat distribution, which is essential for consistent results.
|
Common Materials |
Specific Curing Requirements |
|
|---|---|---|
|
Metals and Alloys |
Steel, ferrous and non-ferrous alloys |
Uniform heating to avoid thermal gradients; controlled cooling to modify microstructure (annealing, tempering, quenching) |
|
Polymers and Composites |
Thermoset polymers, fiber-reinforced composites |
Precise temperature profiles to avoid incomplete curing or degradation; sometimes, pressure application is needed |
|
Adhesives and Bonding Agents |
Liquid or paste polymers are used for bonding |
Accurate temperature control to avoid overheating and degradation; curing solidifies the adhesive for strong bonds |
|
Ceramics and Glass |
Brittle, low thermal conductivity materials |
Slow heating and cooling to prevent cracking; controlled atmosphere sometimes required; maintain below the melting point |
|
Paints and Coatings |
Pigments, resins, solvents, additives |
Proper surface preparation; consistent coating thickness; control humidity and ambient temperature |
|
Electronic Components |
A combination of metals, polymers, and ceramics |
Low temperature curing to protect sensitive components; careful thermal management to avoid damage |
Main Function
The main function of a curing oven in electronics manufacturing is to create strong, reliable bonds and finishes. The oven uses heat to cure adhesives, dry products, and prepare surfaces for coatings. It also finishes products by enhancing durability and corrosion resistance. The oven initiates chemical and physical changes in materials, which improve mechanical properties. Uniform heat distribution through air circulation and temperature control ensures consistent curing results.
Tip: UV curing is popular in electronics because it works quickly at low temperatures. This method prevents damage to sensitive parts and increases production speed. UV curable adhesives and coatings offer strong bonds, low shrinkage, and excellent resistance to scratches and chemicals.
A curing oven supports several key processes:
-
Curing adhesives by applying controlled heat to harden and strengthen bonds.
-
Drying products to remove moisture and prevent defects.
-
Preheating materials for coating to improve adhesion.
-
Finishing products with heat treatment for better durability.
-
Managing heat treatment processes to change material properties.
-
Ensuring uniform heat distribution for consistent results.
Curing ovens play a vital role in electronics assembly. They help manufacturers produce reliable devices with long service life and high performance.
How It Works
Curing Process
The curing process in electronics manufacturing involves several precise steps to ensure strong and reliable bonds. Technicians start by preparing the encapsulation material. They follow the manufacturer’s mixing ratios and use clean tools to avoid contamination. Next, they mix the material thoroughly to create a uniform blend and reduce air bubbles. After mixing, they apply the material using methods such as potting or conformal coating. This step ensures even coverage and minimizes air pockets. The material then enters the curing stage, where it stays in a controlled environment for a set time. Heat curing methods, like ovens or heat lamps, help the material harden. Finally, technicians confirm that the material has fully cured before handling the components. This careful process protects sensitive electronics and ensures long-term reliability.
For adhesives, the process begins with cleaning surfaces to remove contaminants. Workers select the right adhesive based on the application’s thermal, electrical, and chemical needs. They apply the adhesive with precision, either by hand or with automated tools. The curing process follows the manufacturer’s guidelines for temperature and humidity. Sometimes, post-curing steps further enhance the adhesive’s performance.
The science behind curing relies on heat transfer. Ovens use conduction, convection, and radiation to distribute heat. Conduction moves heat through solid materials. Convection circulates heated air, which helps remove moisture. Radiation transfers energy without direct contact, which is useful for delicate items. Moisture moves from inside the material to the surface and evaporates. This process depends on temperature, humidity, and airflow. Proper control of these factors ensures that the curing process does not damage sensitive electronic parts.
Key Parameters
Several key parameters must be controlled during the curing process to achieve the best results. Temperature stands as the most critical factor. Most curing ovens for electronics operate between 50°C and 200°C. Some specialized processes may require temperatures up to 230°C. The oven maintains temperature fluctuations within ±1.0°C and ensures uniformity within ±2.5% at 100°C. This level of control prevents overheating and protects sensitive components.
Time also plays a vital role. Light curing can take only seconds, while heat curing may last from minutes to an hour. The correct curing time ensures the material reaches its full strength without degrading.
Humidity control is essential for both safety and quality. Low humidity, below 30%, increases the risk of electrostatic discharge, which can damage components. High humidity can cause condensation and short circuits. The oven circulates air to maintain a low-humidity environment, which helps remove moisture and prevents defects. Some ovens use dehumidifiers or dry environments for humidity-sensitive materials.
Atmosphere control further enhances the curing process. For sensitive electronic materials, a nitrogen atmosphere creates an oxygen-free environment. This prevents oxidation, moisture absorption, and contamination. Nitrogen purging can reduce oxygen levels to less than 100 ppm in 30 minutes. This process preserves the quality and reliability of electronic components during curing.
|
Parameter |
Details |
|---|---|
|
Temperature |
50°C–200°C typical; up to 230°C for some processes; fluctuation within ±1.0°C |
|
Time |
Seconds (light curing) to up to an hour (heat curing) |
|
Humidity |
Controlled to prevent ESD and condensation; a low-humidity environment is maintained |
|
Atmosphere Control |
Nitrogen purging for sensitive materials; prevents oxidation and contamination |
Note: Proper control of temperature, time, humidity, and atmosphere in a curing oven ensures consistent product quality and extends the lifespan of electronic devices.
Curing Oven Types
Batch Ovens
Batch ovens process groups of electronic parts together. Workers load products into the oven, set the temperature, and allow them to cure for a fixed time. This method works well for small production runs and parts with different shapes or sizes. Batch ovens provide a closed system, which helps control the environment and maintain clean-room standards. They suit jobs that need careful temperature management or special atmospheres. Many manufacturers use batch ovens for curing coatings, drying, and stress relief in electronic assemblies.
|
Aspect |
Batch Process Ovens |
Continuous Process Ovens |
|---|---|---|
|
Operation Mode |
Load products in groups for a set dwell time |
Use powered transport (conveyor belts) for steady movement through oven |
|
Throughput |
Suitable for smaller runs and varied part geometries |
High throughput and consistent curing quality |
|
Material Handling |
More manual loading/unloading, higher labor costs |
Automated transport, minimal manual intervention |
|
Size and Space |
Relatively large |
Relatively small and portable |
|
Workers Required |
More than one worker |
Usually one operator |
|
Expense |
Relatively cheaper |
More expensive |
|
Flexibility |
Can handle unusual shapes and sizes |
Designed for specific shapes and sizes |
Note: Batch ovens offer flexibility and lower costs but require more labor and time for each cycle.
Continuous Ovens
Continuous ovens use conveyor belts to move products through the heated chamber. This design supports high-volume production and consistent curing quality. Automated transport reduces manual labor and increases throughput. Continuous ovens often include multiple temperature zones, allowing precise control for complex processes. Manufacturers prefer these ovens for surface-mount technology (SMT), chip packaging, and semiconductor device fabrication. They deliver even heating and can process many parts quickly.
-
Continuous ovens provide:
-
Steady product flow
-
Uniform heat distribution
-
Minimal manual handling
-
High energy efficiency for large batches
-
Tip: In the same time a batch oven cures 6 parts, a continuous oven can cure up to 45 parts, making it ideal for large-scale electronics manufacturing.
UV and IR Ovens
UV and IR ovens use light energy instead of hot air to cure materials. UV ovens use ultraviolet light to cure adhesives, inks, and coatings rapidly. These ovens work well for heat-sensitive substrates like plastics and for processes such as RFID tag production or digital inkjet printing. UV LED systems generate less heat and save energy.
IR ovens use infrared radiation to heat the surface of parts quickly. This method suits drying and sintering conductive inks or coatings, especially on temperature-sensitive materials. IR ovens often start the curing process, while UV ovens finish it. Hybrid systems may combine both for better results.
|
Oven Type |
|
|---|---|
|
Batch Ovens |
Curing and drying coatings, stress-relieving parts, and small-scale production runs |
|
Continuous Ovens |
High-volume automated curing, SMT, chip packaging, and semiconductor fabrication |
|
UV Ovens |
Curing inks, coatings, RFID tags, and digital printing on plastics |
|
IR Ovens |
Drying, sintering conductive inks, and curing coatings on heat-sensitive substrates |
UV and IR ovens offer fast curing, energy savings, and protect delicate electronic components from heat damage.
Benefits
Reliability
Curing ovens play a key role in making electronic products more reliable. They provide precise temperature control and uniform airflow, which ensures that adhesives and coatings cure evenly. This process prevents weak spots and reduces the risk of delamination or failure. By removing trapped air and moisture from materials, ovens help avoid defects that could shorten a product’s life. Manufacturers use curing ovens to create strong bonds and hermetic seals, which protect sensitive components from moisture and contaminants.
-
Heat-treating components in curing ovens prevents moisture damage.
-
Uniform curing improves yields and reduces product failures.
-
Degassing epoxy resins in ovens maintains material performance.
Consistent curing processes extend the service life of electronics and boost customer confidence in product reliability.
Performance
Curing ovens directly enhance the performance of electronic assemblies. Uniform temperature profiles allow for complete and consistent curing, which strengthens bonds and improves electrical properties. Process optimizations, such as improved air impingement and convection, ensure that even complex assemblies receive proper heat transfer. Structural improvements, like better insulation, reduce cooling times and increase productivity.
-
Optimized temperature reduces cure time from 73 to 40 minutes.
-
Fast ramping and cool down rates support high productivity.
Advanced ovens with automation and IoT integration minimize defects and support efficient manufacturing.
Quality
High-quality electronics depend on precise and reproducible curing. Curing ovens deliver tight temperature tolerance and controlled environments, which are essential for critical coatings like epoxy and polyimide. These ovens remove volatile organic compounds during curing, preventing defects and ensuring a safe workplace. Strong, durable coatings and seals protect devices from harsh environments and extend their lifespan.
-
Controlled curing creates stronger bonds and hermetic seals.
-
Improved coating durability shields components from moisture and contaminants.
-
Reduced cycle times and increased yield support environmental protection.
Electric curing ovens with precise controls help manufacturers meet strict quality and sustainability standards.
Selection Tips
Key Factors
Selecting the right curing oven for electronics manufacturing requires careful consideration of several important factors. Each application has unique needs, so matching oven features to those needs ensures the best results.
-
Application and Process Requirements: Define the specific process, such as adhesive curing or coating, to choose an oven that fits.
-
Temperature Control: Accurate and uniform temperature distribution is essential for repeatable curing and high-quality products.
-
Oven Size and Capacity: Match the oven’s chamber size to the volume and size of parts. Benchtop ovens suit small batches, while walk-in ovens handle large volumes.
-
Airflow Uniformity: Consistent airflow ensures even curing across all parts, preventing defects.
-
Process Type: Some ovens offer vacuum bagging or inert gas purging, which helps prevent oxidation and improve product integrity.
-
Atmosphere Control: Ovens with nitrogen or vacuum environments protect sensitive electronics from moisture and oxidation.
-
Control Features: Programmable controls, data logging, and alarms support process repeatability and documentation.
-
Safety Features: Look for overheat protection, ventilation, explosion-proof designs, and safety interlocks.
-
Energy Efficiency: Efficient ovens reduce operating costs and environmental impact.
-
Maintenance and Service: Choose ovens with rugged construction and easy access for cleaning and repairs.
Tip: Always check for industry certifications like EN 1539, AMS 2750, or relevant automotive and aerospace standards to ensure compliance and quality.
|
Feature |
Impact on Manufacturing Outcomes |
|---|---|
|
Temperature Control |
Ensures consistent curing and product quality |
|
Oven Size |
Affects production volume and throughput |
|
Airflow Design |
Prevents defects by ensuring even heat |
|
Atmosphere Control |
Maintains component quality and reliability |
|
Safety Features |
Protects operators and products |
Maintenance

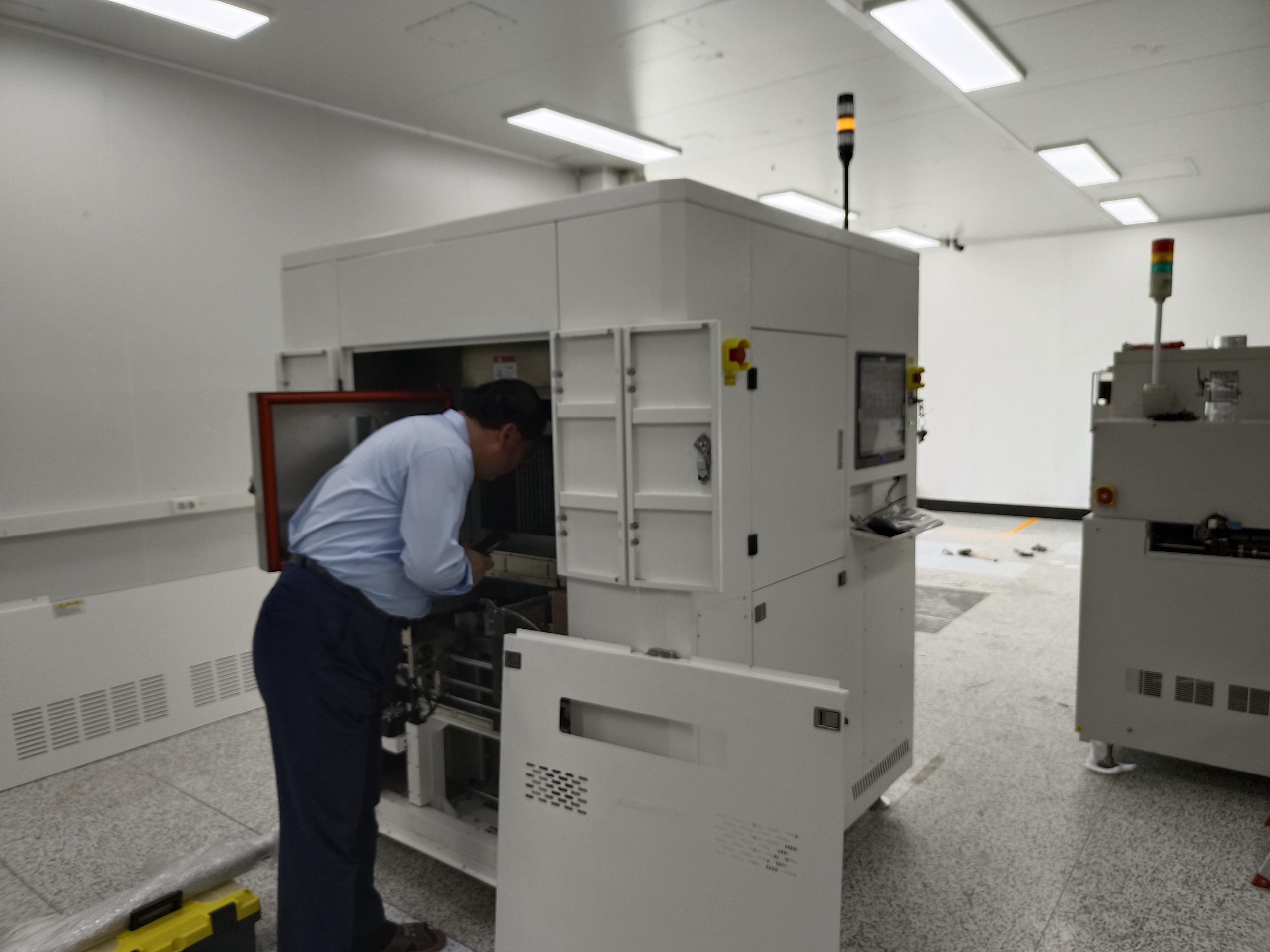

Regular maintenance keeps curing ovens running safely and efficiently. A well-maintained oven delivers consistent results and reduces downtime.
-
Set up a maintenance schedule—weekly, monthly, and yearly tasks help prevent problems.
-
Inspect and clean electrical components to remove dust and dirt.
-
Lubricate motor and fan bearings to prevent wear.
-
Check emergency stop buttons, fuses, and indicator lights for proper function.
-
Examine exhaust systems, fans, and belts for dust buildup and correct alignment.
-
Clean heating elements, burners, and air filters to maintain efficient operation.
-
Remove any loose or fallen parts during downtime.
-
Train operators on safe procedures and emergency protocols.
-
Keep a supply of spare parts to minimize downtime.
Note: Facilities must follow safety and compliance standards, such as OSHA and NFPA, and maintain written operation and maintenance plans. Regular inspections and recordkeeping help meet regulatory requirements and ensure a safe workplace.
A Curing Oven remains vital in electronics manufacturing by ensuring strong bonds, reliable coatings, and consistent product quality. Recent advancements, such as AI-driven controls, smart diagnostics, and energy-efficient designs, help manufacturers achieve higher reliability and efficiency. As the industry moves toward automation and eco-friendly solutions, companies should explore new oven technologies to meet strict standards and support future growth.
FAQ
What materials can a curing oven process in electronics manufacturing?
Curing ovens handle adhesives, sealants, coatings, and encapsulants. They also process polymers, composites, and some metals. These ovens support many electronic assembly steps, including chip packaging and surface-mount technology.
Why is atmosphere control important in curing ovens?
Atmosphere control, such as nitrogen purging, prevents oxidation and contamination. This step protects sensitive electronic parts. It also helps maintain product quality and reliability during the curing process.
How does a UV curing oven differ from a traditional heat curing oven?
A UV curing oven uses ultraviolet light to cure materials quickly at low temperatures. Traditional ovens rely on heated air. UV ovens work well for heat-sensitive components and speed up production.
What safety features should a curing oven include?
A curing oven should have overheat protection, emergency stop buttons, and safety interlocks. Proper ventilation and explosion-proof designs also help protect workers and equipment.
How often should manufacturers perform maintenance on curing ovens?
Manufacturers should follow a regular maintenance schedule. Weekly, monthly, and yearly checks keep ovens running safely and efficiently. Routine cleaning and inspections prevent breakdowns and ensure consistent product quality.
