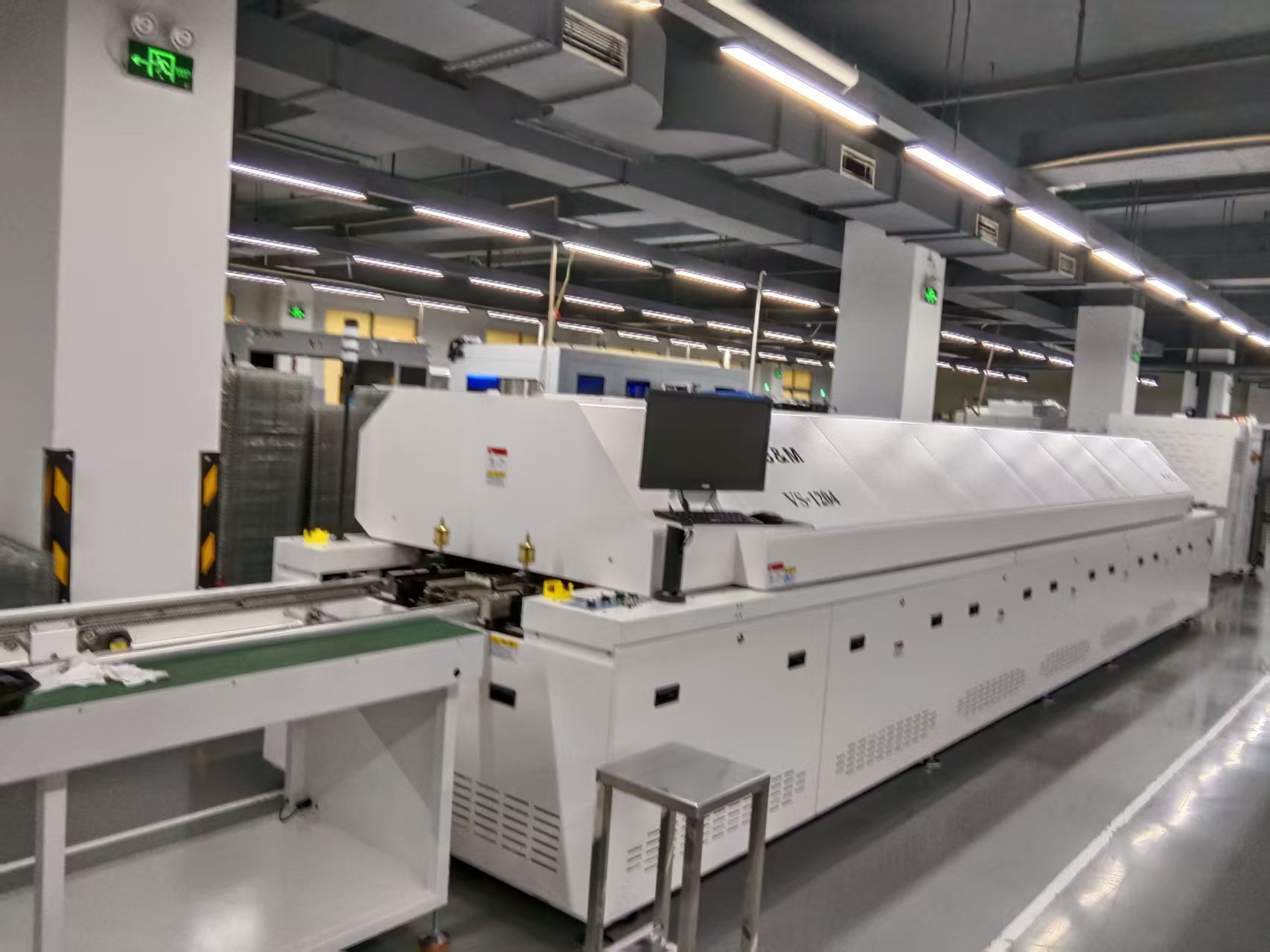

Top Tips to Extend Your Reflow Oven’s Service Life

Simple, regular maintenance keeps your reflow oven running longer and more reliably. You can prevent residue buildup and improve airflow by cleaning key parts daily. These easy steps help you avoid expensive repairs. Paying attention to small tasks, like checking filters or wiping surfaces, makes a big difference. Get into a routine, and you will notice better performance and fewer breakdowns.

Key Takeaways

Regular cleaning of your reflow oven prevents residue buildup. Daily tasks like wiping surfaces and checking filters improve airflow and performance.
Routine maintenance saves money by reducing the risk of sudden equipment failures. Scheduled maintenance helps you avoid costly repairs and keeps production on track.
Inspect key components like heating elements and sensors regularly. Early detection of issues helps maintain consistent product quality and prevents major breakdowns.
Keep a detailed maintenance log to track inspections and repairs. This practice helps you schedule tasks based on actual usage, improving reliability.
Train your staff on best practices for operating and maintaining the reflow oven. Skilled operators help prevent mistakes and extend equipment life.

Why Maintenance Matters

Performance Benefits

You want your reflow oven to deliver consistent results every day. Regular maintenance keeps your equipment running smoothly and helps you avoid common problems. When you clean filters and ducts, you improve airflow and keep temperature profiles steady. This leads to better product quality and fewer defects. If you let residue build up, you risk uneven heating and weak solder joints. Clogged mechanical parts slow down your process and lower production efficiency.

Tip: Clean pallets and oven frames often. This prevents residue from transferring to your PCBAs and protects solder joint integrity.

Here are some common causes of reflow oven failure and how you can prevent them:

Cause of Failure	Prevention Tips
Blower Fan Issues	Inspect and maintain blower fans to keep them running at optimal speeds.
Heater Failure	Check heating elements regularly and use performance measurement fixtures.
Conveyor Calibration Drift	Calibrate the conveyor system and track performance in real time.
Thermal Spill Issue	Avoid large temperature gaps between heater zones and monitor temperature zones often.
Airflow Inconsistencies	Clean filters and ducts, and measure heat transfer rates.
Cooling System Failure	Keep the cooling system clean and follow a regular maintenance routine.

By following these steps, you boost efficiency and maintain high quality in your production line.

Cost Savings

Routine maintenance saves you money over time. Scheduled maintenance programs make costs predictable and help you plan your budget. You reduce the risk of sudden equipment failures, which can lead to expensive repairs and lost production time. Preventive maintenance also lowers overall maintenance costs and keeps your operations running smoothly.

You avoid emergency service calls.
You spend less on replacement parts.
You keep your production schedule on track.

When you invest in regular maintenance, you protect your equipment and your bottom line. You ensure your reflow oven supports your goals for product quality and production efficiency.

Reflow Oven Cleaning

Daily Cleaning Tasks

You keep your reflow oven in top condition by following a daily cleaning routine. Start each day by making sure the workplace looks neat and organized. You clean and wipe down the machine to remove dust and built-up flux residue. This simple step prevents residue from affecting your soldering quality.

Clean and wipe down all surfaces, including the conveyor belt and oven frame.
Check conveyor chains, sprockets, and mesh for any signs of wear. Lubricate moving parts as needed to keep everything running smoothly.
Inspect the automatic lubrication system. Add lubricating oil if you notice low levels.
Clean the photoelectric switches. These sensors detect whether a board enters or exits the oven. Dust or flux can block the sensors and cause errors.

Tip: You avoid costly repairs when you clean daily. Small tasks help you catch problems early and keep your oven working efficiently.

Weekly and Monthly Cleaning

You need deeper cleaning every week and month to tackle stubborn flux residue. Built-up flux residue can block airflow and lower performance. You use specialized cleaning agents to remove tough deposits from metal surfaces.

Product Name	Description
Reflow Oven Cleaner (#MCC-ROC)	Nonflammable cleaner designed for warm ovens, effective against polymerized flux residues.
NuKlean™ Reflow Oven Cleaner	A mixture of solvents effective for burnt-on flux residues can be used at varying concentrations.
CYBERSOLV C8502	Non-flammable cleaner that quickly removes flux residues, suitable for various metal surfaces.
CYBERSOLV C8508	Heavy-duty cleaner safe on aluminum, copper, and brass, effective for maintenance cleaning.

You choose a cleaning agent based on the type of flux and the oven’s material. For heavy-duty cleaning, ultrasonic cleaning machines help remove residue from hard-to-reach areas. You clean conveyor belts, oven surfaces, and exhaust pipes to prevent any blockages. You keep the oven’s interior free from built-up flux residue, which improves heat transfer and airflow.

Note: You protect your oven’s heating elements and sensors when you use the right cleaning agents. Always follow the manufacturer’s instructions for best results.

Cleaning Ventilation Pipes

You maintain optimal airflow by cleaning ventilation pipes regularly. Dust and flux can clog these pipes and reduce the oven’s efficiency. You inspect the pipes for any signs of blockage. Use a vacuum or brush to remove loose debris. For stubborn residue, apply a suitable cleaning agent and rinse thoroughly.

Clean ventilation pipes at least once a month.
Check for any leaks or damage during cleaning.
Make sure airflow remains strong and consistent after each cleaning.

Callout: You extend your reflow oven’s service life when you keep ventilation pipes clear. Good airflow ensures even heating and prevents overheating.

You keep your reflow oven running smoothly when you follow these cleaning routines. Regular cleaning stops residue from building up and keeps your production line efficient.

Key Component Checks

Regular checks on your reflow oven’s main components help you avoid unexpected breakdowns and keep your production line running smoothly. You should focus on three critical areas: heating elements, motors and bearings, and sensors and controls.

Inspecting Heating Elements

Heating elements play a key role in keeping your oven’s temperature stable. You need to inspect them for signs of wear, discoloration, or damage. If you see any cracks or uneven heating, replace the element right away. Faulty heating elements can cause temperature fluctuations, which may lead to poor solder joints and product defects.

You should also check the thermocouples and temperature controls. Use a thermal profiler with multiple thermocouples to test each temperature zone. Place sensors at different points on a test PCB. Make sure each zone reaches the target temperature within ±2°C. Adjust the heater settings if needed and repeat the test until all zones meet the requirements.

Tip: Keep a log of your temperature profiles and any changes you make. This helps you spot trends and catch problems early.

Checking Motors and Bearings

Motors and bearings keep the conveyor moving at a steady pace. If these parts fail, your boards may not move smoothly through the oven, which can cause uneven heating. You should listen for unusual noises or vibrations during operation. These can signal worn bearings or motor issues.

Follow these best practices to extend the lifespan of your motors and bearings:

Lubricate motor components every six months using the correct lubricant from the user manual.
Lubricate conveyor bearings every three months with a high-quality lubricant recommended by the manufacturer.
Check for signs of overheating, such as burnt smells or discoloration.
Inspect the conveyor alignment and tension to prevent extra strain on the motor.

Note: Regular lubrication reduces friction and wear, helping your equipment last longer.

Examining Sensors and Controls

Sensors and controls manage the oven’s temperature and conveyor speed. Faulty sensors can lead to inaccurate temperature readings, which may result in poor solder joint quality. Inaccurate temperature profiles can increase defect rates during the soldering process. You may also see thermal shock and weak solder joints if the temperature is not managed properly.

Most SMT temperature sensors are rated for a maximum soldering temperature of around 260°C for 10 seconds. Exceeding this temperature can degrade sensor accuracy or cause internal damage. Rapid temperature changes can lead to thermal shock, causing cracks or delamination in the sensor.

To keep your sensors and controls accurate, follow this maintenance schedule:

Maintenance Interval	Calibration Task Description
Weekly	Calibrate temperature sensors with thermocouples; fix or change sensors if needed
Monthly	Check profile accuracy by testing boards with thermocouples; fix the control system if needed
Annual	Do a full recalibration of sensors and conveyor speed; check with special test tools

You should also:

Keep logs with temperature profiles, schedules, and any changes made.
Use calibration labels on the oven for easy visibility.
Save records in a computer system connected to your quality program.

To maintain sensor reliability, use a gradual heating approach in the preheat phase, ideally at a rate of 1-2°C per second. After reflow, ensure a controlled cooling rate of no more than 4°C per second. This reduces stress on sensor materials and preserves their accuracy.

Callout: Careful checks and calibration of sensors and controls help you maintain consistent product quality and reduce the risk of costly defects.

Preventive Tips

Monitoring for Issues

You can spot problems early by watching for warning signs during daily operation. When you pay attention to your reflow oven, you catch small issues before they become major failures. Look for these signs:

Temperature inconsistencies between the set point and actual readings.
Strange noises, such as grinding or rattling, may signal mechanical trouble.
Error messages on the control panel.
Conveyor problems, like slow movement or sudden stops.
Excessive smoke or fumes, which may mean overheating or blocked airflow.

If you notice any of these symptoms, take action right away. Quick responses help you avoid costly downtime and keep your periodic maintenance plan on track.

Tip: Early detection of issues helps you maintain stable production and reduces the risk of unexpected breakdowns.

Maintenance Log

You improve reliability when you keep a detailed maintenance log. Recording every inspection, cleaning, and repair gives you a clear picture of your overall maintenance plan. Accurate logs help you schedule tasks based on actual runtime hours, not just calendar dates. This approach reduces the chance of missing important service intervals.

Evidence	Explanation
90% of industrial equipment maintenance should be based on actual runtime hours	Accurate maintenance logs prevent unexpected downtimes and keep your reflow oven running smoothly.
Lack of automated tracking is a significant operational weakness	Without proper logs, you risk reactive maintenance and unplanned outages.

You can use a digital system or a simple notebook. Make sure you record the date, task, and any observations. Review your log regularly to spot patterns and plan future maintenance.

Staff Training

You strengthen your team’s skills with proper training. Well-trained staff know how to operate and maintain your reflow oven safely and efficiently. Training programs teach best practices and help your team follow the overall maintenance plan.

Training Program	Description
Industrial Reflow Ovens for Professional PCB Assembly	Comprehensive training equips your team to operate and maintain your reflow oven. You maximize the value of your equipment investment.

Encourage your staff to attend training sessions and refresh their knowledge often. Skilled operators help you prevent mistakes and extend the life of your equipment.

Troubleshooting

Early Warning Signs

You can prevent major breakdowns by spotting early warning signs in your reflow oven. Watch for changes in the oven’s performance every day. If you notice temperature drift, you may have a problem with the heating elements or sensors. Track the oven profile and stability to catch issues before they affect your production. An advanced thermal management system can help you by triggering alarms at the first sign of malfunction.

Look for sudden changes in temperature readings.
Listen for unusual noises from the conveyor or fans.
Watch for error messages on the control panel.
Check for uneven heating across different zones.
Notice if boards show signs of warping or poor solder joints.

Tip: You can avoid costly repairs by acting quickly when you see these warning signs. Regular monitoring helps you keep your oven running smoothly.

Quick Fixes

You can solve many common reflow oven problems with simple steps. If you see uneven heating, clean the airflow outlets to remove any blockages. This keeps air moving and helps maintain stable temperatures. When you change the number of boards in the oven, monitor the thermal profile to adjust temperature settings as needed.

Store PCBs horizontally on a flat surface before assembly to prevent warping.
Check the conveyor width. If it is too tight, boards may heat unevenly.
Review the manufacturing date code of your boards. Sometimes, warping links to specific batches.
Make sure any center support in the oven sits in the correct position. If it lifts the center of the board, you may see defects.

Note: You can fix many issues by cleaning, adjusting settings, and checking board placement. These quick fixes help you maintain high product quality and reduce downtime.

You keep your reflow oven reliable when you respond quickly to problems and follow these troubleshooting tips.

Storage and Handling

Solder Paste Care

You protect your soldering results when you handle solder paste with care. Solder paste contains metal particles and flux, which can degrade if you store it incorrectly. You should always keep solder paste in a refrigerated environment between 2°C and 10°C (35°F to 50°F). Cold storage slows down chemical reactions and keeps the paste fresh. Before you use solder paste, check the manufacturer’s expiry date. Most solder pastes last 6 to 12 months if you store them properly.

You should follow these steps to maintain solder paste quality:

Store solder paste in its original sealed container until you need it. This prevents moisture from entering and keeps the paste from drying out.
Let refrigerated solder paste reach room temperature (20-25°C or 68-77°F) for 4 to 6 hours before you use it. Sudden temperature changes can cause condensation, which affects paste performance.
Avoid shaking or stirring the paste too much. Gentle mixing ensures the metal particles stay evenly distributed.

Tip: You get better solder joints and fewer defects when you use fresh, well-handled solder paste.

Equipment Storage

You extend your reflow oven’s service life by storing equipment correctly during downtime or maintenance. Clean all surfaces before you store the oven. Remove any leftover flux residue and dust. You should cover the oven with a dust-proof cloth or plastic sheet to prevent contamination.

You should also:

Disconnect the power supply to avoid electrical hazards.
Store small parts, like sensors and thermocouples, in labeled containers.
Keep the storage area dry and well-ventilated to prevent rust and corrosion.

Storage Task	Why It Matters
Clean surfaces	Prevents residue buildup
Cover equipment	Blocks dust and airborne particles
Disconnect power	Reduces risk of electrical damage
Organize small parts	Makes future maintenance easier

Callout: Careful storage keeps your equipment ready for the next production run and reduces the risk of unexpected failures.

You maintain high-quality results and protect your investment when you pay attention to storage and handling. Proper care of solder paste and equipment supports consistent performance in your reflow oven.

Maintenance Checklist

You keep your reflow oven in top shape when you follow a clear maintenance checklist. This checklist helps you remember important tasks and makes sure you do not miss anything. You can use the table below to organize your routine and track what needs attention.

Frequency	Maintenance Tasks
Daily	– Visual inspection for damage and debris – Clean conveyor system – Check temperature sensors – Verify exhaust system operation
Weekly	– Deep clean oven interior – Inspect and clean the cooling system – Calibrate temperature sensors – Tighten electrical connections
Monthly	– Lubricate moving parts – Check and replace filters – Verify profile accuracy with test boards – Inspect heating elements
Quarterly	– Comprehensive cleaning (disassemble for thorough cleaning) – Heating element inspection and resistance tests – Control system diagnostics – Exhaust system overhaul
Annual	– Full system inspection – Calibration of all systems – Electrical system check – Mechanical system overhaul – Safety system verification

Tip: You improve reliability and prevent breakdowns when you stick to your checklist. Set reminders for each task so you never miss a step.

You can print this checklist and hang it near your oven. Mark each task as you complete it. This habit helps you catch problems early and keeps your production line running smoothly.

Review your checklist every month.
Update it if you add new equipment or change your process.
Train your team to follow the checklist for every shift.

A good maintenance checklist saves you time and money. You protect your investment and keep your oven working at its best.

You extend your reflow oven’s life when you follow a regular maintenance schedule. Predictive maintenance helps you spot problems early and avoid sudden breakdowns. You see fewer unexpected faults and spend less on repairs. Many manufacturers report up to a 30% drop in maintenance costs and a much higher return on investment.

Early detection prevents major failures.
Longer equipment life means fewer repairs.
Increased mean time between failures saves money.

Set reminders for each task and train your team to follow the checklist. Proactive care keeps your production line running and reduces downtime.

FAQ

How often should you clean your reflow oven?

You should clean your reflow oven daily to remove dust and flux residue. Deep cleaning every week and month helps prevent buildup. Regular cleaning keeps your oven efficient and reduces the risk of costly repairs.

What signs show your reflow oven needs maintenance?

Watch for temperature fluctuations, strange noises, error messages, and uneven heating. These signs mean you should inspect your oven. Early detection helps you avoid major breakdowns and keeps your production line running smoothly.

Can you use any cleaning agent for your oven?

No, you should use cleaning agents recommended by the oven manufacturer. Specialized cleaners remove flux residue without damaging metal surfaces. Always follow safety instructions and test new products on a small area first.

Why is a maintenance log important?

A maintenance log helps you track inspections, repairs, and cleaning tasks. You can spot patterns and schedule future maintenance. Accurate records reduce downtime and improve your oven’s reliability.
