When engineering and procurement teams search for Heller reflow oven alternatives, they’re rarely hunting for a brand swap. They’re testing whether another platform can deliver equal or better thermal profile stability (ΔT, uniformity, repeatability) while improving ownership costs and service coverage in their region. This 2026 guide anchors on mid-to-high throughput lines—8–10 heated zones, nitrogen-ready—while noting enterprise 12–13 zone options and budget 6–7 zone cases. All claims and examples are framed for audited industries and MoF buyers who need evidence, not superlatives.
Key takeaways
The hero metric is thermal stability: cross-board ΔT, temperature uniformity, and repeat-run repeatability measured with 5–9 TCs. Everything else follows from whether you can hold the thermal window at target conveyor speeds.
Support metrics are TCO (kWh/hour or per board, nitrogen L/min at target O2 ppm, flux management labor/consumables) and local service (SLA bands, stocked parts, onsite coverage), with examples focused on East & Southeast Asia.
Most public product pages under-specify ΔT/uniformity for 8–10 zone ovens. Close this gap in RFQs: ask for multi-TC profiles and repeatability data as of 2026.
Among “best-for” picks below, several vendors emphasize energy/N2 automation and maintenance aids; these reduce operating cost without sacrificing yield—provided ΔT targets hold at takt.
Switching is feasible for most factories, but plan for re-profiling and data/log integration. Use the migration checklist to de-risk acceptance tests and early uptime.
TL;DR — Best Heller reflow oven alternatives by tier and use case (2026)
Mid tier (8–10 zones, nitrogen-ready):
BTU Pyramax 8/10 — particularly strong for Industry 4.0 connectivity (CFX/Hermes/OPC UA/REST/MQTT/SECS-GEM) and energy/N2 levers like Smart Idle and Dynamic Gas Idle; request ΔT/uniformity data for your SKUs. See the official Pyramax and Wincon pages cited below.
Kurtz Ersa HOTFLOW THREE 16/20 — maintenance access and cleaning features (SMART CLEANING) with energy controls (SCPU); confirm numeric ΔT and O2-ppm controls via datasheets in RFQ.
Rehm Vision series — widely used in high-reliability contexts; public datasheets needed for ΔT, O2 ppm, and ViCON/EnergyControl specifics; likely strong candidate once documents are secured.
S&M (Chuxin) VS‑0802‑N / VS‑1003‑N — knowledge-base evidence indicates low cross-board ΔT and repeatable profiles in high-mix runs; verify export/log formats and regional SLA/parts during RFQ. See the S&M case example linked below.
Enterprise (12–13+ zones, vacuum/advanced cooling):
Heller MK7 1913/2049 — stay-baseline for proven high-volume; request numeric ΔT and Asia SLA/parts details if you plan to stay.
S&M VTS‑1013‑N (vacuum) — supports vacuum-enabled profiles for reduced voids on BTC/BGA in appropriate configurations; verify cycle impact vs takt and MES logging.
Budget (6–7 zones):
Treat as due-diligence only for professional lines: require N2 readiness and documented ΔT at the intended takt. Many vendors lack citable ΔT; handle via pilot profiling.
One line summary: Shortlist 8–10 zone nitrogen-ready options first; make thermal repeatability the deciding gate, then tune for TCO and service fit.
What to measure first: profile stability (ΔT, uniformity, repeatability)
Thermal stability governs yield on dense boards, BTCs, and BGAs. The fastest way to compare Heller reflow oven alternatives is to run IPC-style profiling with 5–9 thermocouples across representative SKUs, repeat for 2–3 runs, and analyze cross-board ΔT and peak variance at the conveyor speed you need for schedule attainment. For methodology and audit-ready logging concepts, see the practitioner overview on profiling and O2 ppm in the Reflow Soldering Ultimate Guide (internal) at the S&M site: the section on profiling methods in the reflow soldering ultimate guide.
Practical acceptance bands many audited factories employ (illustrative, confirm per product):
Cross-board ΔT during peak: ≤ 8–10°C for typical mid-mix assemblies; tighter for BTC/BGA-heavy.
Repeat-run peak variance: ≤ 2–3°C across three runs using the same recipe.
Conveyor speed parity: Evaluate at your real takt, not at a slowed-down demo profile.
If a candidate’s ΔT widens or repeatability drifts as you increase speed, your throughput and FPY will suffer—no matter how attractive the price or software stack looks.
The 2026 comparison table — Tier A anchor with Tier B/C references
Vendor / Model (Tier) | Zones / N2 | Thermal claims (ΔT/uniformity) | Energy/N2 levers | Integrations / Export | Pricing (as of 2026) | Constraints / Notes |
|---|---|---|---|---|---|---|
BTU Pyramax 8–10 (Mid) | 8/10; Air or N2 per official page | Numeric ΔT not published; request app notes | Smart Idle; Dynamic Gas Idle; Aqua Scrub | Wincon lists CFX, Hermes, OPC UA, REST, MQTT, SECS/GEM | Not public | Request ΔT/O2 ppm at target speed; confirm recipe/log formats. Sources: BTU Pyramax; Aqua Scrub; Wincon connectivity |
Kurtz Ersa HOTFLOW THREE 16/20 (Mid) | 8/10; N2 options typical | Numeric ΔT not on public page; request datasheet | SCPU energy control; SMART CLEANING | CONNECT platform referenced (docs not public) | Not public | Confirm HOTFLOW interface docs and O2-ppm control. Sources: HOTFLOW THREE; Ersa overview PDF |
Rehm Vision series (Mid/Ent) | N2/vacuum options likely; verify | Not found on homepage; request PDFs | Energy recovery/ViCON expected; request docs | ViCON/API details to request | Not public | Pull model PDFs (VisionX/XP+) for ΔT, O2 ppm, integrations. Source: Rehm homepage |
S&M VS‑0802‑N / VS‑1003‑N (Mid) | 8/10; N2 (KB evidence) | Temp accuracy ±1°C; cross-board ΔT ±1.5°C; stability ±2°C; sample peaks 0.91–1.75°C; inter‑track 0.06–0.29°C (KB) | PID/SSR precision; N2-ready | MES options noted for vacuum line; export/log formats TBD | Not public | Verify export/logging and Asia SLA/parts in RFQ. Evidence example: VS‑1003‑N case study |
S&M VTS‑1013‑N (Ent; vacuum) | 9 heat, 3 cool; N2 (KB) | Vacuum 10–100 Pa; ±1°C temp accuracy (KB) | Flux recovery; N2 35–40 m³/h @ 99.99–99.999% (KB) | MES integration options (KB) | Not public | Validate takt impact and void-rate improvement in FAT. |
Heller 1913/2049 MK7 (Ent baseline) | 13; 15T/15B; Air/N2 per pages | “Low delta‑T” stated; numeric ΔT not on these pages | Family energy savings references | Request integration/log details via rep | Not public | Stay-baseline; confirm Asia SLA/parts hubs. Sources: 1913 MK7; 2049 MK7 |
Notes: “KB” denotes knowledge-base evidence from internal documentation. All time-sensitive statements are as of 2026.
Option-by-option analysis (what it’s strong at, constraints, migration difficulty)
BTU Pyramax 8/10
Where it’s strong: Particularly good Industry 4.0 connectivity and migration readiness via Wincon—protocols listed include CFX, Hermes, OPC UA, REST, MQTT, and SECS/GEM on the official pages. Energy/N2 levers like Smart Idle and Dynamic Gas Idle, plus the Aqua Scrub flux upgrade, are designed to reduce utility and PM costs according to BTU’s materials. See the official product and platform pages: the BTU Pyramax overview, Aqua Scrub, and Wincon connectivity.
Constraints / when not to choose: Public numeric ΔT/uniformity data for 8–10 zones isn’t listed; you’ll need app notes or plant trials to validate cross-board ΔT at your takt and nitrogen ppm targets.
Migration difficulty: Low-to-medium. Interfaces are well-documented at the protocol level; file formats and recipe portability still need confirmation during RFQ.
Kurtz Ersa HOTFLOW THREE 16/20
Where it’s strong: Maintenance access and cleaning (SMART CLEANING) can help sustain uptime; SCPU suggests reduced energy usage. Reference the HOTFLOW THREE page and the Ersa overview PDF.
Constraints / when not to choose: Public ΔT/uniformity and O2-ppm controls aren’t detailed on the product page; HOTFLOW-specific MES/logging/versioning documentation wasn’t surfaced. Request datasheets and interface notes.
Migration difficulty: Medium until interface/export details are verified.
Rehm Vision series (VisionX/VisionXP+ expected)
Where it’s strong: Industry reputation for energy efficiency and inert atmosphere control; likely solid for audited environments once detailed PDFs are obtained.
Constraints / when not to choose: Insufficient public evidence in this pass. Require official PDFs spelling out ΔT, O2 ppm controls, ViCON integrations, and energy recovery details from the Rehm homepage product areas.
Migration difficulty: Unknown pending documentation; treat as “evidence required” before shortlist.
S&M (Chuxin) VS‑0802‑N / VS‑1003‑N
Where it’s strong: KB evidence indicates these 8–10 zone nitrogen-ready platforms are particularly strong at maintaining low cross-board ΔT and repeatable profiles in high-mix runs, supported by independent zone PID and stable airflow control. A public case example on the brand site shows ΔT and repeat-run patterns for like-for-like contexts: see the VS‑1003‑N case study. Use as a reference point and request raw profiling datasets during RFQ.
Constraints / when not to choose: Formal Asia SLAs and parts hub addresses aren’t consolidated on public pages; export/log file format details should be requested. For regulated sectors, insist on sample logs and data schemas.
Migration difficulty: Medium. Profiling and thermal envelope look promising per KB; confirm MES/log exports, operator training hours, and PM intervals.
Enterprise references: Heller MK7 1913/2049 and S&M VTS‑1013‑N (vacuum)
Where they’re strong: Heller remains the stay-baseline for proven high-volume lines; confirm numeric ΔT and Asia service details via the 1913 MK7 and 2049 MK7 channels. For void-sensitive BTC/BGA, a vacuum configuration can reduce voids; S&M’s VTS‑1013‑N supports vacuum-enabled profiles (10–100 Pa per KB). For context on vacuum use cases, see the vendor-agnostic discussion in the vacuum reflow void reduction guide.
Constraints / when not to choose: Vacuum adds cycle time—validate takt impact in a pilot. For Heller, request Asia SLA/parts specifics; for any alternative, insist on profiling evidence at production speed.
Migration difficulty: Medium to high for vacuum transitions due to process windows and acceptance testing.
Tier C (6–7 zones, budget-first)
Where it’s applicable: Small or focused lines with moderate takt where ΔT targets can still be held at speed.
Constraints / when not to choose: Many vendors lack citable ΔT or O2 ppm control data in English. Require a pilot with multi-TC profiles and a one-shift energy/N2 measurement before PO.
Operating costs that actually move TCO (energy, nitrogen, flux/PM)
Operating costs matter when lines run multiple shifts. Three levers dominate the TCO conversation for Heller reflow oven alternatives:
Energy (kWh/hour or kWh/board): Look for idle/standby automation (e.g., Smart Idle) and real conveyor-speed energy curves. If your takt varies, the oven should ramp power intelligently between runs without sacrificing repeatability.
Nitrogen (L/min at target O2 ppm): Compare N2 control strategies and the O2 ppm stability at your throughput. Log O2 ppm along with profile data so you can correlate yield shifts with atmosphere changes.
Flux management and PM: Integrated trapping/scrubbing can extend PM intervals and reduce consumables. Automation reduces manual downtime but confirm consumable costs and replacement cadence.
For a deeper, vendor-agnostic view of why “price-only” selection risks higher lifetime costs, see the discussion on TCO risk in the analysis of choosing an SMT supplier based only on price.

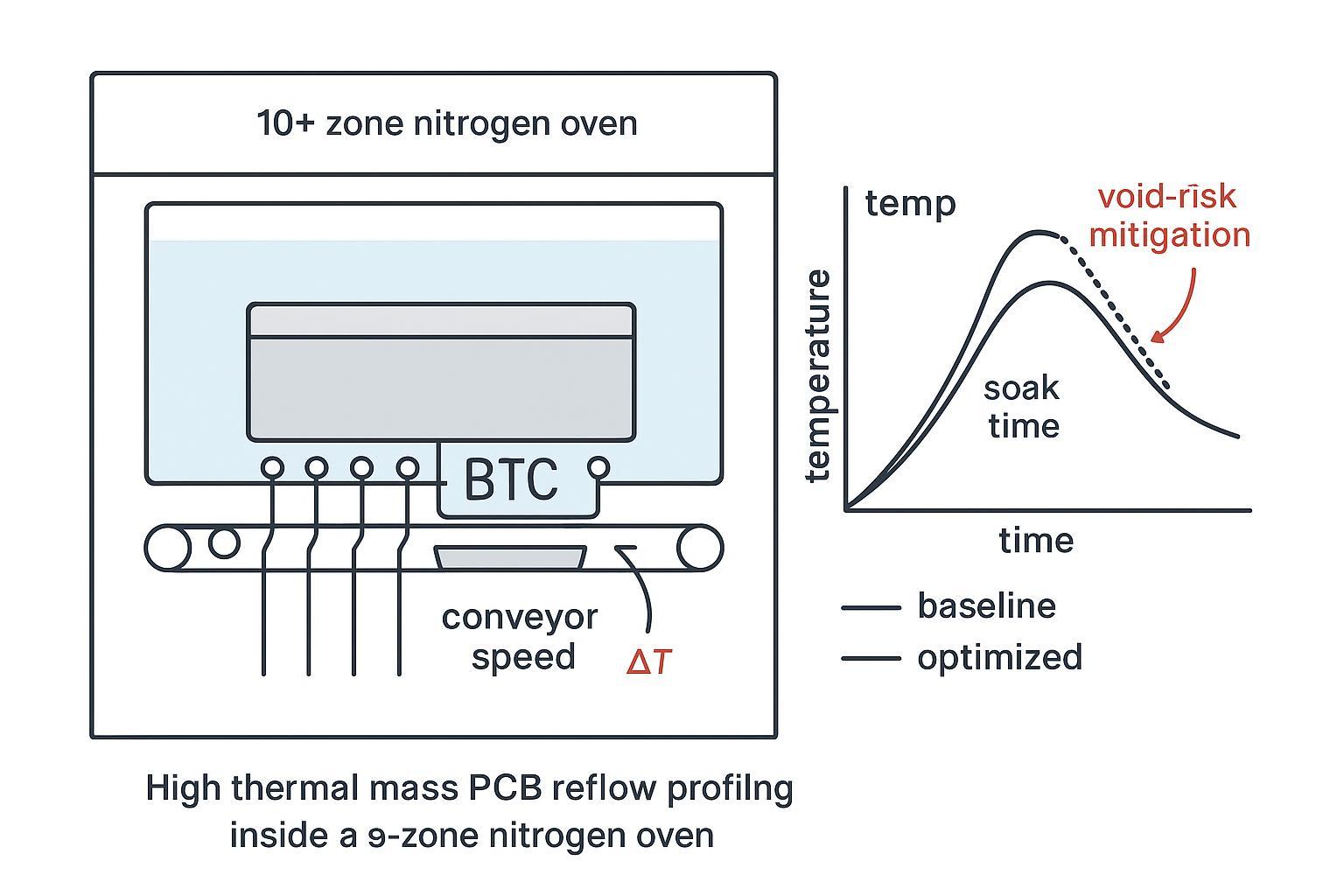

Heavy boards with ground planes illustrate the trade-off: tightening ΔT by lengthening soak or adjusting airflow often reduces peak variance but can pressure takt. That’s why all TCO talks should be coupled with ΔT and repeatability checks at speed, not at “demo conditions.”
Local service and parts in East & Southeast Asia (as of 2026)
Plants across Guangdong/Shenzhen, Suzhou, Chengdu/Chongqing, Northern Vietnam (Bac Ninh/Hanoi), Ho Chi Minh City, Bangkok, Penang, and Jakarta expect practical SLAs and stocked parts. Yet public, vendor-specific SLA pages for these hubs are inconsistent. Treat Asia coverage as a verification step, not an assumption: request written SLA bands (e.g., response 24/72/120 hours), technician coverage maps, and regional parts hub inventories from each vendor.
Tips for service diligence:
Ask for historical MTTR/MTBF references and an escalation path.
Confirm whether warranty and spare kits include high-failure-rate items based on your duty cycle.
Validate onsite commissioning scope: profiling support, operator training hours, and PM handover checklists.
Should you stay with Heller or switch? A simple scoring lens
Use a weighted matrix grounded in factory priorities:
Thermal stability (32%): ΔT at peak, uniformity, repeat-run variance at takt
TCO (24%): energy per hour/board, N2 L/min at target O2 ppm, flux/PM labor and consumables
Local service (18%): SLA bands, stocked parts, technician coverage in your country
Changeover & governance (14%): HMI clarity, recipe library/versioning, time-to-first-good
Integrations & compliance (12%): MES/AOI/X-ray/SPC feeds, O2 logging, barcode readers, APIs
Worked example A (BGA-heavy automotive ECU, Vietnam hub): Heller stays competitive if your current line holds ≤8°C ΔT at takt and you have documented 24/72 hr SLA plus stocked parts in-country. If an alternative can demonstrate ≤6–7°C ΔT at equal takt with automated N2 savings and a verified 72-hour onsite SLA from Hanoi/Bac Ninh, the weighted matrix usually tilts to switching.
Worked example B (high-mix EMS, Penang): If an 8–10 zone alternative shows repeat-run variance ≤2°C across three runs and lowers idle energy/N2 by double digits while providing Hermes/CFX connectivity out of the box, it often out-scores a status-quo line lacking automation—assuming operator changeovers do not lengthen.
Migration and switching-cost checklist (actionable)
Use this as a vendor-neutral acceptance path. All validation points are as of 2026.
Data export/import: Obtain sample recipe, profile, and log files before PO. Confirm temperature setpoint structures, conveyor speed units, and O2 logging compatibility.
Workflow parity: Map your current SOPs (ramp/soak/peak controls, alarms, interlocks) to the candidate’s HMI. Identify changes that affect operator training.
Learning curve: Log planned training hours for operators, process engineers, and maintenance. Confirm availability of manuals and on-site commissioning support.
Integrations: Validate MES/SPC schemas, barcode reader I/O, O2 sensor logging, and CFX/Hermes/OPC UA/REST/MQTT/SECS-GEM adapters where applicable (e.g., see BTU’s Wincon protocol list on the official site).
Contract/pricing risk: Model kWh/hour (or per board), N2 L/min at target O2 ppm, flux consumables, PM intervals, and downtime. Include a spare-parts kit and warranty scope.
Pilot run: Re-profile 3 representative SKUs using 5–9 TCs; run 3 repeats; record ΔT window, repeatability, time-to-first-good, and changeover time.
Acceptance tests: Define ΔT and throughput pass/fail limits in the contract; document escalation and remediation steps.
For deeper profiling and audit logging context, see the profiling sections in the reflow soldering ultimate guide.
Practical notes on evidence and gaps (how to run a fair RFQ)
Be explicit about takt: Vendors should profile at your conveyor speed, not demonstration speeds.
Demand numeric ΔT/uniformity and repeatability: Where public pages are silent (common for mid-tier), ask for application notes or plant-trial data as of 2026.
Log utilities during pilots: Run a one-shift energy/N2 measurement at the acceptance profile; compare kWh/board and L/min at target O2 ppm across candidates.
Validate service in your plant’s city: Request technician coverage counts and nearest stocked-parts addresses, not just national presence.
Keep link density modest but definitive: When a claim matters, prefer canonical product/platform pages, as used above for BTU/Ersa/Heller/Rehm; when the method matters, use vendor-agnostic resources such as the internal reflow guide.
Next steps for buyers
Shortlist 8–10 zone nitrogen-ready ovens with credible connectivity and maintenance features. Use the comparison table here as your starting scaffold and fill gaps with RFQ documents.
Schedule on-site or virtual demos that include multi-TC profiling at real takt and a one-shift utilities measurement.
For void-sensitive assemblies, include a vacuum candidate and pre-define acceptable cycle impact. For context on void reduction strategies, see the vendor-agnostic vacuum reflow best practices.
If you need a concrete example of how a mid-tier 10-zone line can hit tight ΔT with repeatability, review the public VS‑1003‑N case study and request equivalent evidence from every vendor under consideration.
