PCB Conveyor Setup and Troubleshooting Tips

When you focus on PCB Conveyor Setup, you build a reliable and efficient assembly line. Regular troubleshooting and preventive maintenance help you avoid unnecessary delays. Many companies that schedule routine checks see impressive results:

• Experience 15-20% less downtime.

• Increase equipment lifespan by 20%.

• Reduce operational downtime by 15%.

If you work as a technician, engineer, or are just starting, these habits can make your workflow smoother and more productive.

Key Takeaways

• Choose the right conveyor by matching it to your PCB size, production volume, and existing systems. This ensures smooth operation and prevents bottlenecks.

• Perform regular inspections and maintenance to catch issues early. This habit can reduce downtime and extend the lifespan of your equipment.

• Calibrate sensors accurately to ensure they detect PCB positions and control speeds effectively. Proper calibration prevents jams and improves production efficiency.

• Train your team on safe operation and emergency response. Well-trained staff can quickly address issues, enhancing safety and productivity.

• Use loader and unloader conveyors to automate processes. This reduces manual labor and increases efficiency, allowing for higher production rates.

PCB Conveyor Setup Steps

Choosing the right conveyor is the first step in a successful PCB Conveyor Setup. You need to match the conveyor to your production needs. Consider these important factors:

1. PCB Size and Shape: Make sure the conveyor can handle the full range of PCB sizes and shapes you plan to use.

2. Production Volume: Select equipment that matches your expected production speed and volume. This helps prevent bottlenecks.

3. Integration with Existing Systems: Check that the new conveyor works smoothly with your current machines and software.

4. Maintenance and Support: Choose a supplier who offers reliable support and easy access to spare parts.

Tip: Always review your production requirements before purchasing a new conveyor. This helps you avoid costly mistakes and ensures smooth operation.

Unpacking and Inspection

Start your PCB Conveyor Setup by carefully unpacking all components. Inspect each part for visible damage or missing pieces. Look for dents, cracks, or loose hardware. If you find any issues, contact your supplier before moving forward. This step prevents future problems and ensures you have everything you need.

Positioning and Alignment

Place the conveyor in its designated spot on the assembly line. Align it with upstream and downstream equipment. Use a level to check that the conveyor sits flat on the floor. Proper alignment keeps PCBs moving smoothly and reduces the risk of jams. Adjust the feet or supports as needed to achieve perfect balance.

Electrical Connections

Connect the conveyor to the power supply according to the manufacturer’s instructions. Double-check all wiring for secure connections. Use the correct voltage and grounding to protect both the equipment and your team. If your conveyor includes automation features, connect the control cables to your main system. Test the power switch and emergency stop to confirm they work as intended.

Sensor Calibration

Sensors play a key role in every PCB Conveyor Setup. They detect PCB position, control speed, and prevent collisions. You need to calibrate these sensors for accurate operation. Recent technical studies highlight several effective calibration methods:

Calibration Method	Description
Temperature Compensation	Adjusts sensor readings based on temperature changes for consistent performance.
Reference Target Calibration	Uses known standards to set a baseline and find errors.
In-situ Calibration	Calibrates sensors without removing them, reducing downtime.
Multi-parameter Calibration Algorithms	Considers several factors at once for robust results in changing environments.
Automated Calibration Systems	Uses digital processing for frequent, accurate calibration with less human error.

Note: Automated calibration systems can save you time and improve accuracy, especially in high-volume production environments.

Safety Checks

Before you start the conveyor, perform a full safety check. Inspect guards, covers, and emergency stops. Make sure all warning labels are visible. Test the safety interlocks and confirm that the conveyor stops immediately when triggered. Train your team to recognize hazards and respond quickly to emergencies.

A careful PCB Conveyor Setup reduces the risk of accidents and keeps your assembly line running smoothly. When you follow these steps, you set the stage for efficient, reliable production.

Visual and Motor Cable Inspection

Checking for Damage

You should start every inspection by looking for visible damage on the motor cables and connectors. Examine the cables for cracks, cuts, or exposed wires. Pay close attention to the plug area, as this spot often shows early signs of wear. If you see burn marks or melted insulation, you need to act quickly. Damaged cables can cause short circuits or even stop the conveyor from running. Use a flashlight to check hard-to-see areas. If you find any damage, replace the cable before restarting the conveyor.

Tip: Always turn off the power before touching or moving any cables. This step keeps you safe and prevents further damage.

Identifying Coolant Contamination

Coolant leaks can harm motor cables and reduce conveyor performance. You might notice sticky residue or discoloration near the cable ends. Burn marks at the plug often signal coolant contamination. This type of damage can interrupt the electrical flow and cause the conveyor to malfunction. The table below shows what to look for:

Evidence Type	Description
Damage Indicators	Inspect the motor cable for any sign of damage, such as burn marks at the plug.
Cause of Damage	Burn marks could be caused by coolant contamination, indicating a direct impact on performance.

If you spot these signs, clean the area and check for leaks. Replace any affected cables to restore safe operation.

Inspecting for Loose or Broken Parts

Loose or broken parts can lead to conveyor breakdowns. You should check all connectors, brackets, and fasteners for tightness. Wiggling parts or rattling noises often mean something is loose. Several factors can cause these issues:

Cause	Explanation
Uneven tension	Tension imbalance on both sides of the conveyor roller can lead to deviation and wear.
Roller bearing damage	Worn or aging bearings can cause uneven rotation, leading to misalignment of the conveyor roller.
Improper installation	Misalignment during installation can cause the roller to deviate over time.
Motor failure	Issues like overload or loose wiring can prevent normal operation of the conveyor system.
Insufficient lubrication	Lack of lubrication increases friction, leading to overheating and poor performance.
Sensor faults	Aging sensors or external interference can affect detection accuracy, impacting production.

Tighten any loose parts and replace broken components right away. Regular checks help you catch problems early and keep your PCB conveyor running smoothly.

Troubleshooting Issues

Roller Offset

Roller offset can disrupt the smooth movement of PCBs and cause misalignment. You may notice that boards do not travel straight or get stuck at certain points. Roller offset often results from uneven tension, worn bearings, or improper installation. To fix this, check both sides of the conveyor for equal tension. Inspect the roller bearings for signs of wear or damage. Adjust the rollers so they sit parallel to the conveyor frame. Lubricate moving parts to reduce friction. Regular checks help you catch roller offset early and keep your PCB Conveyor Setup running efficiently.

System Failure

System failures can stop your conveyor and halt production. You need to diagnose the problem quickly to minimize downtime. Start by observing the system display and status lights. The table below lists common diagnostic steps and what each one means:

Diagnostic Step	Description
Blank display, no LEDs lit	Check for power issues or connection problems.
‘Initialising V1A’	System is powering up.
‘System Inhibited’	Waiting for a run signal.
‘Manual Inhibit’	Manual position selected.
‘System Fault’	Refer to fault diagnosis.
‘Freq Too low’	Refer to fault diagnosis.
The conveyor will not start	Check for the remote device signal.
The conveyor shows a run status, but is not moving	Check stroke input.
The conveyor shows a system fault	Check the load circuit and wiring.
The conveyor runs with a low stroke	Check for Triac failure.
Unstable running	Check frequency and mechanical issues.
‘FREQ TOO LOW’ displayed	Check conveyor frequency and springs.

If you see a blank display, check the power supply and all cable connections. For system faults, inspect the load circuit and wiring. Always follow the manufacturer’s troubleshooting guide for specific error codes.

Sensor Faults

Sensors help control speed, detect PCB position, and prevent collisions. Faulty sensors can cause jams or missed boards. You should check sensor alignment and cleanliness. Dust or debris can block sensor signals. Test each sensor by placing a PCB in front of it and watching for a response. If a sensor fails, replace it or recalibrate using the methods described in your PCB Conveyor Setup manual. Aging sensors or electrical interference can also cause problems. Keep spare sensors on hand for quick replacement.

Motor Overload

Motor overload happens when the motor works harder than it should. Jams or blockages can force the motor to draw more current, which may trigger an overload fault. Overloading the motor beyond its rated capacity also causes problems. You should inspect the conveyor for stuck boards or debris. Remove any obstructions and restart the system. If you operate near the motor’s maximum load, consider using a larger motor or reducing the load. Regular inspections and smooth mechanical operation help prevent motor overload and protect your equipment.

Abnormal Sounds

Unusual sounds often signal mechanical issues. You might hear vibrations, grinding, or rattling noises. These sounds can mean wear and tear, misalignment, or poor lubrication. If you ignore these signs, you risk breakdowns or safety hazards.

• Listen for abnormal noise between the motor and the drive device or the brake wheel.

• Notice if the vibration matches the motor’s rotation frequency.

Abnormal noise between the coupling of the high-speed end motor and the reducer or the brake wheel often comes with vibration at the same frequency as the motor’s rotation.

Check all moving parts for damage or loose connections. Lubricate bearings and rollers. Replace worn components to restore quiet operation.

Plate Jams

Plate jams stop PCBs from moving through the conveyor. You may see boards stuck between rollers or sensors. To clear a jam, turn off the power and remove the obstruction. Inspect the area for broken parts or debris. Plate jams often result from misaligned rollers, faulty sensors, or uneven tension. After clearing the jam, check the conveyor alignment and sensor calibration. Regular cleaning and inspection help prevent future jams.

Power and Connection Fault Diagnosis

You can use several techniques to find power and connection faults in your PCB Conveyor Setup. The table below shows common methods, their advantages, and limitations:

Technique	Advantages	Limitations	Use Case
In-Circuit Testing (ICT)	Fast, repeatable, highly accurate	Requires a custom fixture, longer setup time	Best for high-volume production with stable designs
Automated Optical Inspection (AOI)	Detects visible surface defects	Cannot detect internal open circuits	Useful for initial quality checks
X-ray Inspection (AXI)	Detects hidden solder joints	High equipment cost, requires trained operators	Essential for complex components like BGAs
Functional Testing (FCT)	Checks behavior under real-world conditions	Does not reveal the root cause without diagnostics	Final validation before shipment
Combined Testing Strategies	Increases reliability and reduces risks	N/A	Optimal test coverage

Choose the method that fits your production needs and conveyor design. Combined strategies offer the best coverage and reliability.

Preventive Maintenance

Routine Inspection

You should inspect your PCB conveyor regularly to catch problems early. Look for signs of wear, loose bolts, or frayed cables. Check the rollers and belts for smooth movement. Examine sensors and switches to make sure they respond as expected. Routine checks help you spot issues before they cause downtime. Create a checklist for each inspection. This habit keeps your conveyor reliable and safe.

Cleaning and Lubrication

Daily cleaning keeps your conveyor in top shape. Dust and debris can build up on belts and rollers, which may lead to jams or slowdowns. Use cleaning agents that are safe for your equipment. Specialized cleaners remove grime without harming sensitive parts. Regular lubrication of moving parts reduces friction and prevents early wear. Always follow the manufacturer’s instructions for the right lubricant type and amount.

• Clean belts and rollers every day to prevent dust buildup.

• Use only approved cleaning agents for your conveyor.

• Lubricate moving parts on a set schedule.

• Check the lubrication points and avoid over-lubricating.

Keeping your conveyor clean and well-lubricated extends its lifespan and improves performance. 🛠️

Failure Diagnosis

Early detection of failures saves time and money. You can use several diagnostic tools to find problems quickly. Automated Optical Inspection (AOI) systems detect surface defects fast and with high accuracy. X-ray inspection finds hidden issues inside complex assemblies. Manual microscopes work well for small batches. Solder joint inspection and component placement checks help prevent costly mistakes.

Diagnostic Tool	Application	Benefits	Limitations
AOI Systems	Surface defect detection at various stages	Fast, high defect detection rates (>95%)	Cannot detect hidden defects
X-Ray Inspection	Internal defect detection in complex assemblies	Non-destructive, high accuracy (up to 99%)	More expensive, slower than AOI
Manual Inspection Microscopes	Detailed inspection for small-scale production	Cost-effective, flexible for low-volume runs	Time-consuming, prone to human error
Solder Joint Inspection	Ensuring the reliability of solder joints	Critical for preventing failures	Requires multiple methods for comprehensive checks
Component Placement Verification	Ensuring correct component placement	Prevents costly rework by catching issues early	Manual checks can be labor-intensive

Component Replacement

Replace worn or damaged parts as soon as you find them. Swap out frayed cables, cracked rollers, or faulty sensors right away. Use only genuine replacement parts from trusted suppliers. Keep spare parts on hand to reduce downtime. Quick replacement keeps your conveyor running smoothly and protects your production schedule.

Automation and Adjustable Width

Loader and Unloader Conveyors

You can boost your assembly line’s efficiency by using loader and unloader conveyors. Loader conveyors feed PCBs onto the line, while unloader conveyors remove finished boards. These systems help you automate the start and end of your process. You do not need to move boards by hand, which reduces mistakes and saves time. Loader and unloader conveyors often work with other machines, such as pick-and-place robots or soldering stations. This integration keeps your workflow smooth and steady.

Loader and unloader conveyors help you handle hundreds of boards per hour. You can keep up with high production demands and reduce manual labor.

Inspection Conveyors

Inspection conveyors give you a way to check quality without stopping the line. You can add inspection stations at key points to catch problems early. Many systems include Automated Optical Inspection (AOI) or In-Circuit Testing (ICT). These tools help you spot defects, missing parts, or soldering issues. You can fix problems before they reach the next stage. Inspection conveyors also let you pause boards for a closer look or testing.

Here are some common automation features you might find in modern PCB conveyor systems:

Feature	Description
Automated Component Placement	Uses robotic arms or pick-and-place machines for precise component placement.
Soldering and Reflow Stations	Includes reflow ovens or soldering stations for consistent solder connections.
Testing and Inspection	Integrates inspection stations for quality control, such as AOI and ICT.
Control Systems	Provides advanced monitoring and synchronization of the production process.
Modularity and Flexibility	Offers modular designs for easy customization and integration.

Adjustable Width Features

You can adjust the width of modern SMT conveyors to fit different PCB sizes. This feature gives you flexibility and helps you handle a wide range of board shapes and dimensions. Adjustable width settings let you switch between jobs quickly. You do not need to spend much time on manual changes. Automated width adjustment makes the process even faster and more accurate.

• Adjustable width settings let you handle various PCB sizes, making your line more versatile.

• Automated width adjustment reduces manual work and lowers the risk of errors.

• You can adapt to new projects or board designs without buying new equipment.

When you use conveyors with adjustable width, you improve your production speed and reduce downtime. This flexibility helps you meet changing customer needs and keep your assembly line running smoothly.

Reliability Checklist

Startup and Shutdown

You set the tone for reliable operation every time you start or shut down your PCB conveyor. Begin each shift by checking the power supply and inspecting emergency stops. Confirm that all guards and covers are in place. Turn on the main power and observe the system display for any error messages. Let the conveyor run empty for a short period. Listen for unusual sounds and watch for smooth movement. If you notice anything out of the ordinary, pause and investigate before loading PCBs.

When shutting down, remove all boards from the conveyor. Turn off the main power switch. Wait for all moving parts to stop completely. Clean the conveyor surface and check for debris. These steps help you prevent unexpected issues and keep your equipment in top shape.

Tip: Create a simple checklist for startup and shutdown. This habit helps you catch problems early and keeps your line running smoothly.

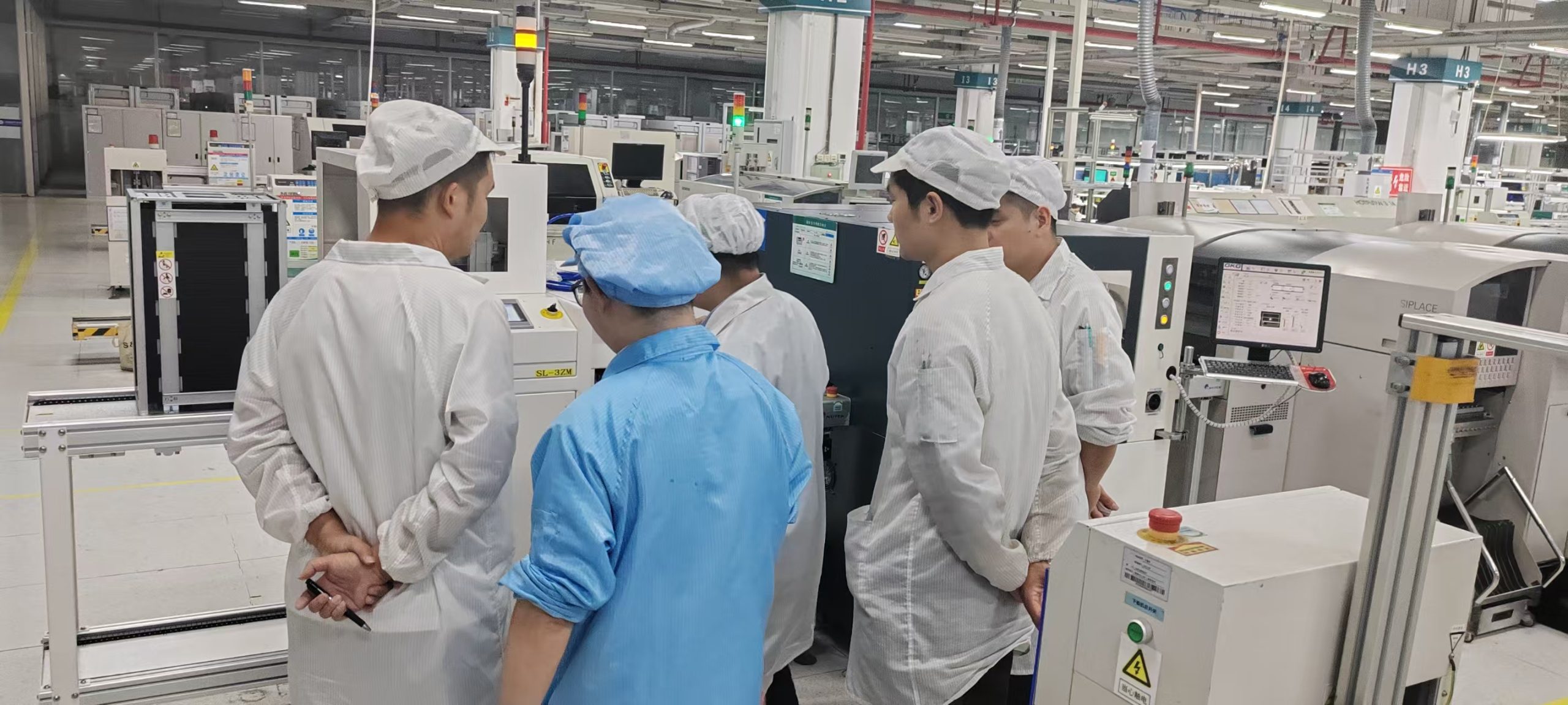

Staff Training

Proper training ensures your team operates the conveyor safely and efficiently. You should provide clear instructions for every task. Effective training programs cover three main areas:

Training Module	Description
Basic Operation	Detailed instructions on operating each machine, including startup and shutdown procedures.
Troubleshooting Common Issues	Techniques for identifying and resolving common operational problems to minimize downtime.
Best Practices for Maintenance	Scheduled maintenance tasks to enhance equipment longevity and prevent breakdowns.

You can use hands-on demonstrations and regular refreshers to reinforce these skills. Encourage your staff to ask questions and share their experiences. Well-trained operators reduce mistakes and improve overall productivity.

Emergency Response

You must prepare for emergencies before they happen. Teach your team how to use emergency stops and alarms. Make sure everyone knows the location of fire extinguishers and first aid kits. Practice emergency drills so your staff reacts quickly under pressure. Assign clear roles for each team member during an emergency. Review your response plan after each drill and update it as needed.

Remember: Quick action during an emergency can protect both your team and your equipment. Regular practice builds confidence and keeps everyone safe.

You improve your assembly line when you follow each step for PCB conveyor setup and troubleshooting. Routine inspections and preventive maintenance keep your equipment reliable. Industry experts recommend these solutions for common problems:

Problem	Solution
Aging or loosening of conveyor roller	Regularly check and replace or adjust the conveyor roller as needed.
Roller or chain wear	Inspect and maintain the roller and chain to ensure proper delivery.
Foreign body blockage	Clean the delivery area regularly to prevent debris accumulation.
Preventive maintenance	Develop a regular inspection system and establish a lubrication system for equipment.
Operator training	Enhance operator training to improve fault identification and handling.
Monitoring equipment	Consider using monitoring equipment for real-time detection of anomalies.

Checklist for ongoing reliability:

• Inspect rollers and chains weekly

• Clean delivery areas daily

• Lubricate moving parts on schedule

• Train operators regularly

• Monitor equipment for anomalies

Keep this guide handy. You can refer to it often to maintain smooth and safe PCB conveyor operation.

FAQ

How often should you inspect your PCB conveyor?

You should inspect your PCB conveyor at least once a week. Look for loose bolts, worn rollers, and frayed cables. Regular checks help you catch problems early and keep your line running smoothly.

What should you do if the conveyor stops suddenly?

First, check the power supply and emergency stop button. Inspect cables for damage. If you see an error message, follow the troubleshooting steps in your manual. Always turn off the power before touching any parts.

Can you use any cleaning agent on your conveyor?

No, you should only use cleaning agents approved by the manufacturer. Some chemicals can damage belts or sensors. Always check the product label and follow the cleaning instructions in your manual.

Why does your conveyor make unusual noises?

Unusual noises often mean something is wrong. You might have loose parts, worn bearings, or poor lubrication. Stop the conveyor and inspect all moving parts. Lubricate or replace components as needed.
