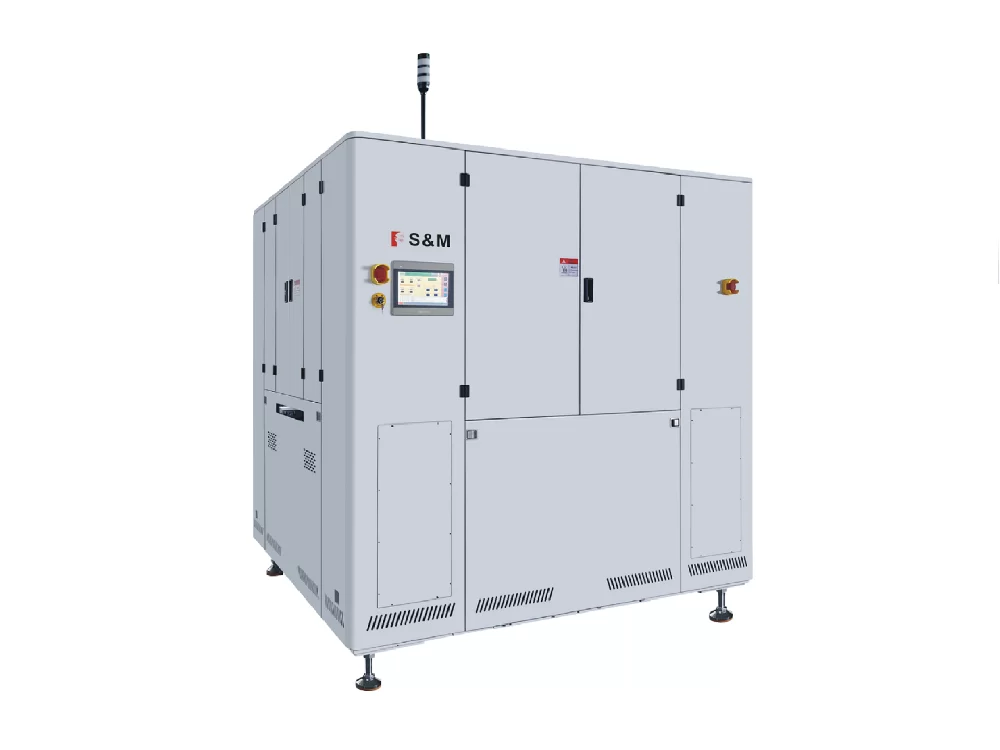

You need exact heat control to make strong solder joints in SMT curing ovens. Preheating Systems slowly warm up your parts. This helps stop stress and damage. Cooling systems are important too. They help solder joints get hard and make PCBs work better. The table below shows how cooling speed changes product quality:
|
Impact on Solder Joint Quality |
Impact on PCB Reliability |
|
|---|---|---|
|
1.5 – 10 |
Strong, reliable solder joints |
Fewer defects |
|
Too slow |
Weak, rough microstructures |
Higher chance of failure |
|
Too fast |
Cracks inside, layers peel apart |
Weaker strength |
Bad heat control can make solder joints fail. It can also stress the PCB. This can cause problems and slow down production.
Key Takeaways
-
Preheating systems heat parts slowly. This stops stress and damage. It makes solder joints stronger. It also helps PCBs last longer.
-
Controlled cooling is very important. It stops cracks from forming. It helps solder joints get hard the right way. This makes products last longer.
-
Check and set your temperature profiles often. This helps stop problems. It keeps production working well.
-
Clean your oven often and look for blockages. A clean oven heats evenly. It also stops expensive repairs.
-
Use special temperature profiles for each PCB. Every assembly needs its own heat settings. This gives the best results.
Importance
Solder Joint Quality
You want each solder joint to be strong. Preheating Systems help by warming the PCB and parts slowly. This gentle heat keeps solder paste from spilling or breaking apart. If you heat too fast, you might get solder balls or bad wetting. Cooling systems are important too. Cooling too quickly can make cracks inside the solder. Cooling too slowly can make the joints weak.
Tip: Always check your temperature profile. A slow ramp and steady soak let gases out and stop cracks or holes in the solder.
Here is a table that shows common problems from bad preheating and cooling:
|
Zone |
Defect Type |
Cause of Defect |
|---|---|---|
|
Pre-heat zone |
Solder paste collapse |
Ramp up too fast, viscosity drops |
|
Pre-heat zone |
Soldering ball |
Rapid solvent vaporization |
|
Pre-heat zone |
Solder splash |
Quick ramp up |
|
Pre-heat zone |
Poor wetting |
Oxidation from long pre-heat |
|
Cooling zone |
Components crack |
Rapid cooling causes thermal shock |
|
Cooling zone |
Increased fatigue |
Slow cooling creates excess intermetallics |
PCB Reliability
You want your PCBs to last a long time. Preheating Systems and controlled cooling protect boards from shock and stress. Changing temperatures too fast can bend or crack the PCB. This makes the board weaker and shortens its life. Using the right ramp and soak times helps the board handle stress.
A good process uses these steps:
-
Hold for 60–120 seconds to let solvents leave.
-
Cool down at no more than 4°C per second to stop shock.
|
Parameter |
Description |
|---|---|
|
Preheat |
Ramp ≤3°C/s to 150–180°C, hold 60–120s |
|
Cooling |
Ramp down ≤4°C/s |
|
Reliability |
An optimized process can cut defect rates by 25% |
Heating and cooling again and again also affect how long boards last. If you control the temperature changes, you lower the risk of cracks and bending. This means your boards work better for longer.
Defect Prevention
You can stop many SMT defects by managing heat well. Preheating Systems help you avoid tombstoning, solder bridging, and voids. Tombstoning happens when one end of a part lifts up during soldering. This often comes from uneven heating. Solder bridging happens when too much solder joins two pads by mistake.
|
Defect |
What Happens |
How to Prevent |
|---|---|---|
|
Tombstoning |
The component stands up on one end |
Use even heating and good profiles |
|
Solder bridging |
Solder joins two pads by accident |
Control solder paste and alignment |
A slow, steady preheat and soak lets gases out and keeps solder joints strong. Keeping the peak temperature at least 15°C above the solder’s melting point helps make a good bond. If you rush, you risk cracks, holes, and weak joints.
Note: The area inside the stress-creep strain loop gets bigger with bigger temperature jumps. More heat change means more damage to solder joints.
By using Preheating Systems and controlled cooling, you lower the chance of defects and make your products last longer.
Preheating Systems
Flux Activation
You need to make the flux work in solder paste. Preheating Systems help by warming up the board slowly. This step gets rid of bad chemicals. It also gets the PCB ready for soldering. If you heat too fast, the flux might not do its job. The solder may not stick well.
Here is a table with important settings for good flux activation:
|
Parameter |
Value Range |
|---|---|
|
Temperature Range |
Room Temperature → 130–190°C |
|
Heating Rate |
1–3°C/s |
|
Function |
Remove solvents, preheat PCB, reduce thermal stress |
A steady preheating plan helps get rid of gases in the flux. This makes the surface clean and helps solder stick better. You also get even heat across the board. This helps every solder joint form the right way.
Thermal Shock Reduction
You want to keep your PCB and parts safe from quick heat changes. Preheating Systems let you warm up the board in steps. This slow heating keeps the board from bending or cracking. If you skip preheating, you might hurt the board or the parts.
-
Preheating gets rid of gases in the flux. This is needed for good soldering.
-
It lowers thermal shock to the PCB. This stops damage during soldering.
-
A steady preheating plan gives even heat. This is needed for strong solder joints.
Raising the heat slowly to about 175–180°C works best. Go at a rate of 0.5–1°C per second. This way, you lower the chance of problems like bending or cold soldering.
Solvent Evaporation
You need to get rid of solvents in the solder paste before it melts. Preheating Systems help by keeping the heat near 150°C. If you heat too fast, solvents may stay inside. This can make bubbles or weak joints. Heating between 1.5°C and 3°C per second works well.
The preheating zone starts at room temperature and goes up to about 150°C. This slow rise lets water and solvents leave safely. Your parts, like chips, can get used to the heat without stress. Keeping the heating rate under 2°C per second helps stop thermal stress and keeps parts safe.
Tip: Always warm up slowly. This gets your parts ready for soldering and lowers the chance of PCB bending.
Cooling Systems
Controlled Cooling
You must cool your boards at the right speed. Controlled cooling stops cracks and weak joints. Cooling too fast can shock parts and break them. Cooling too slowly can make solder joints look dull. The cooling rate is important for every solder alloy. The table below shows the best cooling rates:
|
Cooling Rate (°C/s) |
Effect on Solder Joint |
|---|---|
|
3–6 |
Stops big grains and dull joints |
|
2–4 |
Cuts down stress cracks and IMC thickness |
|
~4 |
Best for fine-grain structure |
A steady cooling rate keeps solder joints strong and smooth. You should keep the cooling system clean and working well. This helps stop uneven cooling and thermal shock.
Solder Joint Solidification
You want solder joints to harden the right way. Controlled cooling lets solder form a fine-grained structure. This makes joints stronger and less likely to crack. Managing the cooling rate stops brittle intermetallic compounds from forming. Here is what controlled cooling does for solder joints:
-
Makes the microstructure better, so there are fewer microcracks.
-
Limits brittle intermetallic compounds, so cracks do not spread.
If you cool too fast, you might get cracks or weak spots. Cooling too slowly can make joints too soft.
Reliability Enhancement
You want your products to last longer and work better. Good cooling system design helps you do this. A well-kept cooling system stops cracks, delamination, and thermal shock. Regular checks and real-time monitoring keep the system working right. The table below shows how your choices affect reliability:
|
Prevention Tips |
Consequences |
|
|---|---|---|
|
Stops thermal shock and uneven cooling |
Keep the cooling system clean and working |
More damage and failures |
|
Cuts down cracks and delamination |
Check for water blockages often |
Costly rework and product rejection |
|
Make sure solder joints harden properly |
Watch furnace temperature in real time |
|
Tip: Always check your cooling system for blockages or dirt. Clean systems help you avoid costly repairs and keep your boards strong.
Best Practices
Temperature Profiling
You need a good temperature profile for strong solder joints. This also helps make reliable PCBs. First, match your oven’s temperature to the adhesive or coating you use. Change the conveyor speed so each assembly gets enough heat. Try using ramp-soak-spike (RSS) or ramp-to-spike (RTS) profiles. These methods help spread heat evenly on your boards. They also lower the chance of problems like head-in-pillow or voids.
|
Best Practice |
Description |
|---|---|
|
Make profiles for each adhesive or coating to get good curing. |
|
|
Conveyor Speed Optimization |
Change speed for different assemblies to keep quality even. |
|
Regular Maintenance Protocols |
Check heating parts and sensors often for best results. |
Tip: Use a thermal profiler to check your oven’s temperature in different places. This helps you find hot or cold spots before they cause trouble.
Calibration
You must calibrate your oven to keep the temperature right. Put thermocouples on a test PCB in important spots. Connect a profiler to record the temperature as the board moves through the oven. Set your target thermal profile and run the oven. Watch the readings. If you see hot or cold spots, change the airflow fans or the conveyor speed. Do the test again until the heat is even everywhere. Check the solder joints to make sure they look good.
-
Put thermocouples on a test PCB.
-
Connect the profiler and record the data.
-
Set your target profile.
-
Run the oven and watch the readings.
-
Change airflow or conveyor speed if needed.
-
Repeat until the heat is even.
-
Check solder joints for quality.
You should calibrate your oven at least once a month. This stops temperature drift from causing problems.
Maintenance
You need to keep your oven clean and working well. Clean out solder and flux leftovers often. Calibrate the sensors and controllers on a regular schedule. Look at heating parts and sensors for damage. Replace any parts that look worn out.
-
Calibrate sensors and controllers often.
-
Check and replace worn heating parts and sensors.
Note: If you see uneven heating or cooling, look for blockages or dirt in the airflow system. Fixing these problems early can stop bigger issues and keep your production running well.
You get stronger solder joints and PCBs that last longer when you use good preheating and cooling systems. These systems help stop common problems and make your work faster. To keep things working well, do these steps: Check your temperature profiles often. Clean your oven and calibrate it on a regular schedule. Look for signs of uneven heating or cooling.
Remember: Good thermal management helps your products stay reliable and keeps your line running smoothly. Always pay attention to changes in your system.
FAQ
What happens if you skip preheating in an SMT curing oven?
You risk damaging your PCB and parts. Skipping preheating can cause thermal shock. This may lead to cracks, solder defects, or weak joints. Always use preheating to protect your boards.
How often should you calibrate your SMT curing oven?
You should calibrate your oven at least once a month. Regular calibration keeps your temperature profiles accurate. This helps you avoid defects and keeps your production line running smoothly.
Why does cooling speed matter for solder joints?
Cooling speed controls how solder joints form. If you cool too fast, you may get cracks or weak spots. If you cool too slowly, joints can turn dull or weak. Aim for a steady cooling rate for best results.
Can you use the same temperature profile for all PCBs?
No, you should not use the same profile for every board. Different PCBs and components need different heat settings. Always create a custom temperature profile for each assembly.
What signs show your cooling system needs maintenance?
Look for uneven cooling, dirt buildup, or blocked airflow. If you see more defects or weak solder joints, check your cooling system. Clean and maintain it to keep your boards strong.
