Programming and Debugging in Selective Soldering

You play a key role in achieving high-quality results with Selective Soldering. Effective programming and debugging help you reduce defects and improve production speed. When you use CAD, Gerber, and BOM files, you set up precise instructions for your machine. Specialized software lets you create and adjust these programs step by step. Careful attention at each stage increases solder joint reliability and keeps your process efficient.

Key Takeaways

• Effective machine setup is crucial. Check the flux sprayer, preheater, and solder pot to ensure quality solder joints.

• Import accurate CAD and Gerber files to reduce errors. This step saves time and improves production efficiency.

• Create a precise soldering path. Consider component spacing and thermal relief to minimize defects.

• Validate your program before production. Use tests to ensure high-quality solder joints and adjust settings as needed.

• Follow a structured debugging process. Identify defects, analyze causes, and adjust parameters to resolve issues quickly.

Selective Soldering Programming

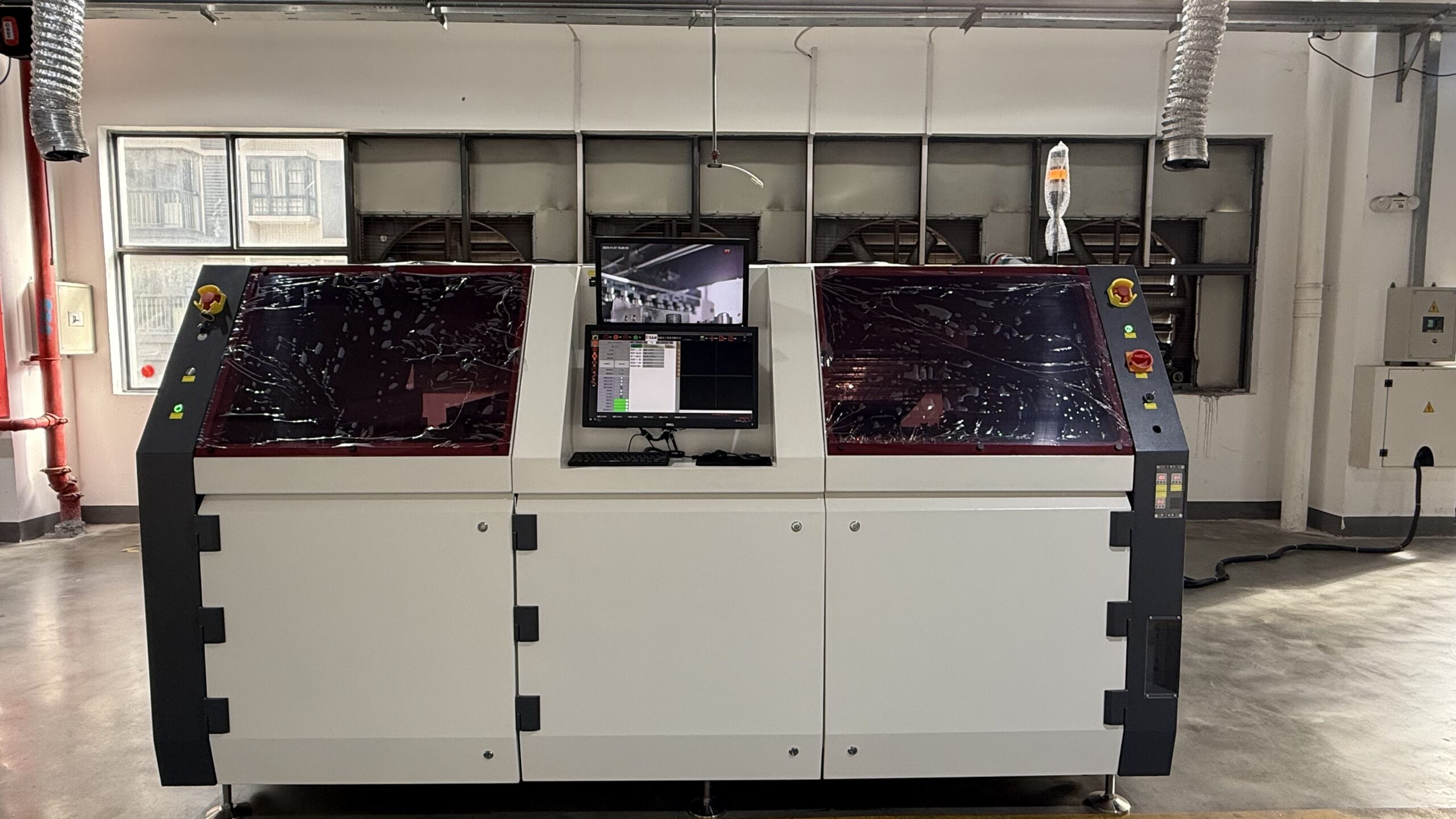

Machine Setup

You start the Selective Soldering process by preparing your machine for reliable operation. Each part of the setup plays a role in ensuring quality solder joints and smooth production.
Here are the main components you need to check:

• Flux Sprayer: Applies flux to the areas that need solder. This step helps the solder stick and prevents oxidation.

• Preheater: Warms the printed circuit board (PCB) to the right temperature. Preheating reduces thermal shock and helps solder flow.

• Solder Pot: Holds molten solder at a controlled temperature. The solder pot delivers solder to each connection point.

You should follow these steps for a typical setup:

1. Apply flux only to the areas that need solder. This reduces the risk of thermal shock.

2. Preheat the board to ensure proper solder flow and strong joints.

3. Introduce molten solder to each connection in sequence. This method gives you precise control.

Tip: Quick-change fixtures or pallets help you load and unload boards faster. They keep the PCB in the correct position and improve repeatability.

You also need to monitor several machine parameters to keep your process stable.
Here is a table of critical parameters and recommendations:

Parameter	Recommendation
Solder Temperature	Check every 2 weeks for stability.
Preheater Settings	Check every week or after product changes.
Flux Quality	Check every shift and maintain the spray fluxer.
Nozzle Maintenance	Clean the wettable nozzle 2 to 3 times per shift.
Board Positioning	Keep PCB orientation consistent when loading.
Lead Length of Components	Use identical lead lengths, less than 1.5mm.
Nitrogen Quality	Use N2 with 99.999% purity (5.1 quality).

Importing CAD and Gerber Data

You need accurate data to program your Selective Soldering machine. Most machines accept several file types:

• Full CAD files

• Gerber-only files

• Bill of Materials (BOM) files

You can import data from popular CAD systems such as Accel P-CAD, Altium Designer, and AutoCAD. Specialized software like Unisoft or ProntoSELECTIVE-SOLDERING helps you read these files and convert them into machine instructions.
When you import these files, you define which pads and holes need soldering. You also set up the board outline and component locations. This step reduces manual errors and saves time.

Soldering Path Creation

After importing your data, you create the soldering path. This path tells the machine where and how to apply solder.
You should consider several factors to minimize defects:

• Component Spacing: Keep at least 2-3 mm between through-hole and surface-mount parts. This spacing prevents thermal interference.

• Pad and Hole Sizes: Size through-hole pads and holes correctly. A hole diameter about 1.2 times the lead diameter works well for solder flow.

• Thermal Relief: Use thermal relief patterns on pads connected to large ground planes. This design helps heat spread evenly and creates strong joints.

• Orientation: Align components so the solder nozzle can reach all areas. Avoid placing tall parts in the nozzle’s path.

• Flux Compatibility: Make sure your board design works with the flux you use. This step prevents residue from affecting other parts or tests.

Note: Careful path creation reduces the risk of solder bridges, poor hole filling, and other common defects.

Program Validation

Before you start production, you must validate your Selective Soldering program. This step ensures your process will run smoothly and produce high-quality joints.
You can use several methods to check your program:

Method	Description
Machine Capability Analysis	Test the machine before use or after moving it. Make sure performance stays consistent.
Process Capability Studies	Run tests on the production line. Check parameters like board temperature and solder contact time.
Quality Tools	Use process FMEA, machine capability analysis, and statistical process control in daily operations.

During validation, you may find errors such as excess solder, cracked boards, or lifted copper pads. You can resolve these by adjusting nitrogen levels, preheating, or using thicker copper pads.
Always review your results and make changes before starting full production.

Debugging Process

Common Programming Errors

You may encounter several programming errors during Selective Soldering. These errors can cause defects and slow down your production. Here are some of the most frequent issues and their root causes:

• Insufficient hole fill often results from not enough flux, a high distance from the fluxer to the PCB, a small pin-to-hole ratio, low solder temperature, or a high distance from the solder wave to the PCB.

• Insufficient solder can happen if you use too little flux, have poor solderability on components, bad PCB pads, short solder time, or a high distance from the solder wave to the PCB.

• Blow holes usually appear when the board temperature is too low or the PCB has moisture.

• Excessive solder may occur because of a tight layout, poor peel-off movement, or low solder temperature.

• Bridging can result from tight layouts, heat issues, or low solder temperature.

• Solder balls are more common in selective soldering due to higher temperatures and can be influenced by the solder mask type and the amount of flux.

• Poor hole filling often points to a fluxing or heating problem, especially if preheat temperatures are too low.

• Solder shorts on pin grid arrays are caused by pins being too close together, poor fluxing, or incorrect heat.

• Solder shorts near SMD components often relate to design issues or flux solid levels.

• Sunken solder joints can result from problems with the hole-to-lead ratio, incorrect preheat, or poor fluxing.

Programming errors can disrupt your manufacturing process. They waste time, labor, and materials. If you do not fix them quickly, they can delay your production schedule and increase costs.

Soldering Defects

You need to recognize common soldering defects to improve your process. The table below lists some of the most prevalent defects in selective soldering and their descriptions:

Defect Type	Description
Solder Starved Joint	Not enough solder, which leads to weak mechanical strength. Poor heat application or insufficient flux often cause this.
Solder Splashes/Webbing	Irregular solder formations caused by inadequate flux or contaminants. These can lead to shorts.
Pin Holes/Blow Holes	Holes in solder joints are formed by moisture escaping during soldering. This leads to poor conduction.

You may also see bridging and poor hole filling. When the temperature at the lead (TpL) exceeds 230 °C, bridging defects per board drop to below 0.30%. Keeping the temperature at the zone (TpZ) above 220 °C helps you achieve full vertical fill with no large voids. Proper preheating (105/115/135/145 °C) keeps flux efficient and reduces internal voids.

Diagnostic Tools

You can use several diagnostic tools to identify and solve issues in selective soldering. The table below shows some of the most effective tools:

Diagnostic Tool	Description
Visual Checks	Regular inspection helps you spot defects like dull or incomplete solder joints.
Automated Optical Systems	These systems find bridging by detecting unintended connections between pins under magnification.
Contamination Testers	These devices measure ionic contaminants on the board surface for precise results.

Advanced tools can make debugging faster and more accurate. Boundary scan features give you high-speed control and many test options. Intelligent graphical diagnostics show you visual representations, making it easier to find problems. Short program development time lets you create test programs quickly, so you spend less time debugging.

Debugging Steps

You can follow a structured approach to debugging in selective soldering. This method helps you find and fix problems quickly:

1. Identify the Defect: Use visual checks or automated systems to spot issues like insufficient solder, bridging, or poor hole filling.

2. Analyze the Root Cause: Look at process parameters such as solder temperature, flux amount, and preheat settings. Check if the board design or component placement could be causing the problem.

3. Use Diagnostic Tools: Apply contamination testers or graphical diagnostics to get more information about the defect.

4. Adjust Process Parameters: Change settings like solder temperature, flux application, or preheat time based on your findings.

5. Validate the Fix: Run another test to see if the defect is gone. If not, repeat the steps until you solve the issue.

A comprehensive troubleshooting guide helps you resolve problems faster. It gives you structured methods and cause-and-effect charts, so you understand how each factor affects your process. This knowledge leads to quicker solutions and better solder joint quality.

Best Practices

Error Prevention

You can prevent many errors in selective soldering by following a few key steps.

• Use the right amount of heat. Too much heat can damage pads and components.

• Apply the correct amount of solder. This helps you avoid weak connections and bridging.

• Clean all surfaces before soldering. Dirt or oil can cause poor solder joints.

• Put solder on the iron tip. This improves heat conduction and helps components heat up evenly.

• Make sure the solder melts and flows well. Good flow means strong joints.

You can also use tools and methods to catch mistakes early. A process camera lets you watch the soldering in real time. You can spot problems before they cause defects. Dedicated nozzle plates for each product help you get uniform joints every time. Keeping oxygen levels low in the soldering area stops oxidation and dross from forming. This keeps your solder joints clean and strong.

Tip: Regular checks and cleaning help you keep your process stable and prevent common errors.

Efficient Debugging

You solve problems faster when you use a clear and simple approach. Start by inspecting solder joints visually. Look for dull, incomplete, or bridged connections. Use automated optical systems to find hidden defects. Contamination testers help you check for unwanted materials on the board.

You should keep a troubleshooting guide nearby. This guide shows you common defects and their causes. When you find a problem, adjust process settings like temperature or flux amount. Test the fix and repeat if needed. Quick feedback helps you keep production moving.

Process Optimization

You can improve both throughput and quality by using proven methods.
Here is a table with some effective strategies:

Method	Description
Nitrogen Inerting	Nitrogen creates an inert atmosphere. This improves solder wetting and reduces oxidation.
Optimizing Solder Nozzle Design	Custom nozzle shapes help solder reach all joints and lower defect rates.
Advanced Thermal Profiling	Good thermal profiles keep results consistent across different board types.

Selective soldering lets you control flux, heat, and solder for each joint. You can set different parameters for different components in the same run. This flexibility makes process optimization quick and easy.

Note: Regularly review your process and update settings to match new board designs or components. This keeps your soldering results reliable and efficient.

You can achieve reliable selective soldering by following clear programming and debugging steps. Using accurate data files and advanced software helps you model your process, spot bottlenecks, and save costs. The table below shows how these tools support long-term improvements:

Key Findings	Description
Simulation Software	Models real production for better planning.
Bottleneck Identification	Finds slow points and improves efficiency.
Real-time Monitoring	Let’s you adjust parameters and see results instantly.

Keep your process strong by training your team, updating software, and following these strategies:

• Schedule preventive maintenance.

• Clean and inspect nozzles.

• Control key process variables.

Continuous training gives you the skills to solve problems and improve results. When you use best practices, you keep your soldering process efficient and dependable.

FAQ

What files do you need to program a selective soldering machine?

You need CAD, Gerber, and BOM files. These files help you define pad locations, board outlines, and which holes need soldering. Specialized software reads these files and creates machine instructions.

How can you prevent solder bridges during selective soldering?

Keep enough space between components. Use the right nozzle size and set the correct soldering parameters. Monitor solder temperature and flux amount.

Tip: Review your soldering path to avoid overlapping joints.

Why does poor hole filling happen?

Poor hole filling often means you have a low preheat temperature or not enough flux. Sometimes, the hole or pad size is wrong. Check your process settings and board design.

What tools help you debug selective soldering problems?

You can use visual checks, automated optical inspection, and contamination testers.

• Visual checks spot obvious defects.

• Automated systems find hidden issues.

• Testers measure board cleanliness.

How often should you clean the soldering nozzle?

Clean the nozzle two to three times per shift. Regular cleaning keeps solder flow steady and prevents defects.

Note: A clean nozzle helps you get strong, reliable joints every time.
