Selective wave soldering gives you automated, precise PCB soldering that cuts labor costs and rework rates. In modern manufacturing, you need both automation and accuracy to stay competitive. Industry data shows that when you use selective wave soldering, you need only 1-3 operators instead of 5-20, and you can lower your defect rate to as little as 25 parts per million.

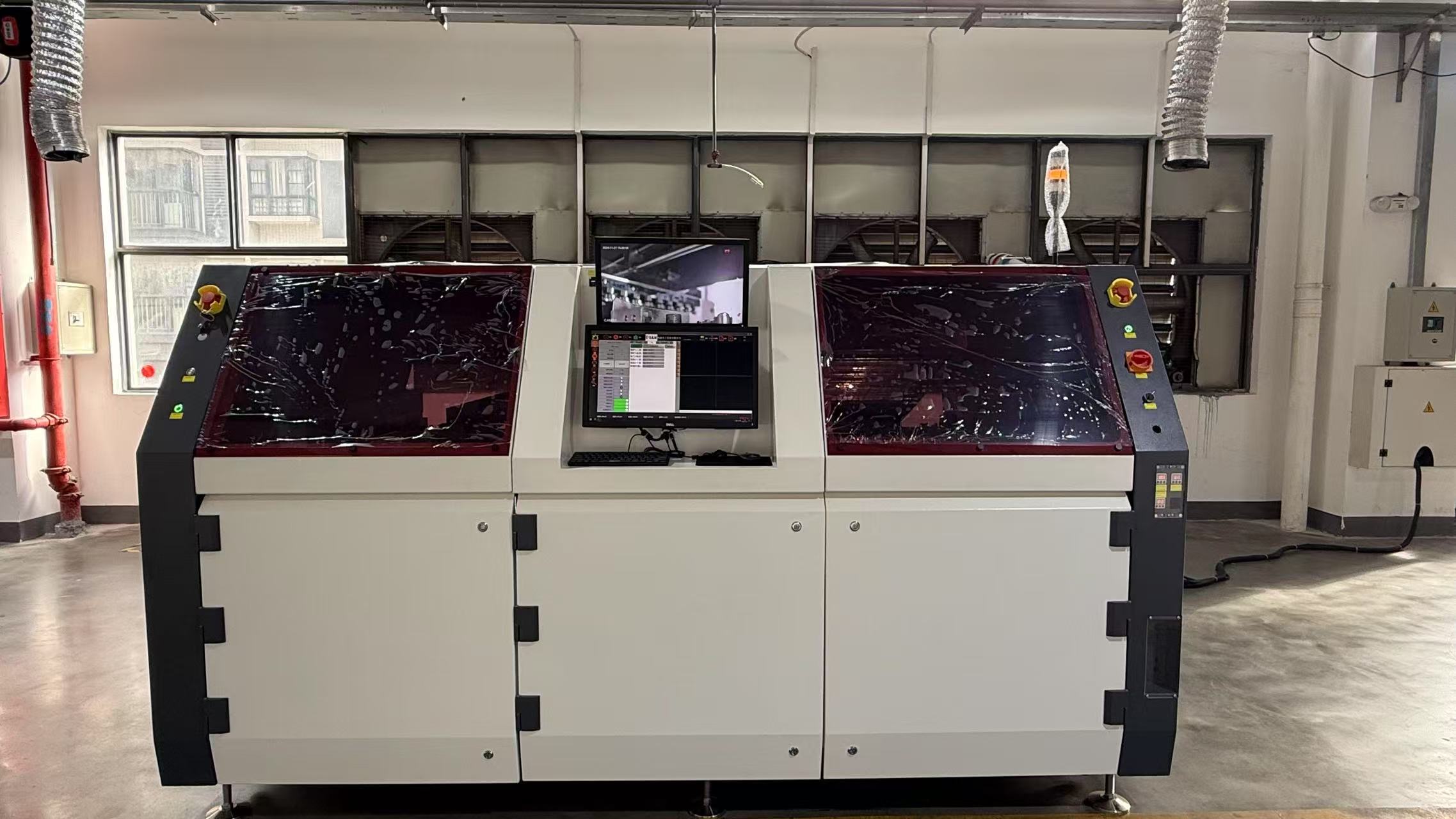

The SM-LⅡ Selective Wave Soldering Machine shows how advanced automation can make your production line more efficient and consistent.
|
Aspect |
Manual Soldering |
Wave Soldering (Automated) |
Selective Soldering |
|---|---|---|---|
|
Number of Operators |
5-20 |
1-3 |
1-3 |
|
Defect Rate (ppm) |
N/A |
120-500 |
25-80 |
|
Operating Cost |
Higher |
Higher per board |
Up to 5 times lower |
Key Takeaways
-
Selective wave soldering automates precise soldering on PCBs, reducing the number of operators needed and lowering defect rates significantly.
-
The process targets only specific solder joints, protecting sensitive components and cutting down on solder and flux waste.
-
Real-time monitoring and programmable settings ensure consistent, high-quality solder joints and reduce the need for rework.
-
This technology speeds up setup by eliminating custom pallets and masks, saving time and labor costs.
-
Selective wave soldering improves production flexibility, allowing quick changes between different PCB designs and boosting overall efficiency.
Selective Wave Soldering Process
Automation and Control
You can achieve high efficiency and accuracy in PCB assembly by using selective wave soldering. This process uses advanced automation to handle each step with minimal manual input. The SM-LⅡ Selective Wave Soldering Machine uses an industrial computer and a multi-axis motion control card. This setup lets you program the exact path, speed, and height for the soldering nozzle. You can import PCB images or GERBER files, then edit the soldering path directly in the software. This makes setup fast and repeatable.
|
Step/Aspect |
Selective Wave Soldering |
Conventional Wave Soldering |
|---|---|---|
|
Flux Application |
Flux is sprayed precisely on targeted solder joints, often by robotic spray nozzles. |
Flux is sprayed over the entire PCB surface to prepare all joints. |
|
Preheating |
Preheating is done to activate flux and prepare specific areas before soldering. |
Preheating is applied to the whole PCB to avoid thermal shock. |
|
Soldering |
Soldering is performed on individual joints or small groups using robotic arms or nozzles (drag or dip soldering). |
The entire PCB underside is passed over a continuous wave of molten solder, soldering all joints simultaneously. |
|
Cooling |
After soldering, the PCB passes through a cooling zone to solidify solder joints. |
Cooling follows the wave soldering process to solidify solder joints. |
|
Inspection |
Automated optical inspection (AOI) or functional testing is performed to ensure quality. |
Inspection is also performed, but may require masking to protect sensitive parts. |
|
Precision and Control |
High precision and control, soldering only selected areas, reducing solder and flux usage. |
Lower precision, entire board exposed, requiring masking and more solder waste. |
|
Suitability |
Ideal for mixed technology boards, small to medium batch production, and sensitive components. |
Best suited for large batch through-hole boards where speed and cost are priorities. |
The SM-LⅡ machine supports multi-axis movement, so the soldering nozzle can move along X, Y, and Z axes. This allows you to target only the joints that need soldering, which protects sensitive components and reduces waste.
Precision and Monitoring
You get precise control over every solder joint with selective wave soldering. The SM-LⅡ machine lets you adjust soldering parameters for each joint, such as nozzle height, movement speed, and dwell time. You can save these settings for future use, which ensures consistent results across production runs.
The machine monitors key parameters in real time, including air intake pressure, conveyor speed, preheating temperature, and solder pot temperature. If any value goes out of range, the system alerts you right away. The built-in camera system lets you watch the soldering process live, capture photos, and record videos for quality checks.
You can rely on the SM-LⅡ to deliver stable and accurate soldering. The closed-loop servo motors and precision ball screws keep the nozzle steady, even during complex movements. This level of control helps you avoid defects and ensures high-quality solder joints every time.
Labor Cost Reduction
Less Manual Intervention
You can reduce manual labor in your production line by switching to selective wave soldering. This technology automates the precise application of solder to specific through-hole leads. You no longer need to expose the entire PCB to molten solder, as you would with traditional wave soldering. Instead, you program the machine to control solder application time, temperature, and nozzle position. This ensures reliable joints and protects sensitive components from heat damage.
Selective wave soldering combines the accuracy of hand soldering with the speed and consistency of automation.
You do not need skilled technicians to solder each joint by hand. The machine handles complex boards and mixed technologies with ease. You can avoid manual adjustments or custom fixtures because programmable nozzles work around screws, reinforcements, or other sensitive parts. This approach lowers the risk of human error and reduces the need for rework.
-
Automates soldering for each joint, reducing repetitive manual tasks
-
Delivers consistent results, even on complex or mixed-technology boards
-
Minimizes the need for skilled labor and manual oversight
-
Reduces errors and defects caused by manual soldering
By using selective wave soldering, you can focus your workforce on higher-value tasks, such as process optimization or quality control, rather than repetitive soldering.
Faster Setup
You can also save time and money during setup. Traditional wave soldering often requires custom pallets or masks to protect certain areas of the PCB. These pallets are expensive to design and manufacture. They also add extra steps to your process, such as handling, cleaning, and storing the fixtures.
Selective wave soldering eliminates the need for these costly pallets. The machine uses programmable nozzles to target only the joints that need soldering. You do not have to spend time preparing or maintaining custom fixtures. This reduces both material costs and labor time.
You will notice a drop in labor intensity as well. The automation in selective wave soldering means fewer operators are needed to monitor the process. You can allocate your workforce more efficiently, focusing on tasks that require human judgment or technical skill. The reduction in rework and component damage also means less time spent fixing errors, which further lowers labor costs.
Tip: Investing in operator training for selective wave soldering pays off. Well-trained staff can program the machine, perform maintenance, and troubleshoot issues quickly, keeping your line running smoothly.
Overall, selective wave soldering streamlines your workflow. You can set up new jobs faster, reduce manual intervention, and cut down on labor costs, all while improving the quality and consistency of your PCB assemblies.
Rework Rate Reduction
Fewer Defects
You can achieve much lower defect rates when you use selective wave soldering. This technology lets you set the exact amount of flux, soldering time, and wave height for each joint. You avoid common problems like bridging, cold joints, or thermal damage because the machine applies solder only where you need it. This targeted approach means you do not waste solder or expose sensitive parts to unnecessary heat.
Industry studies show that selective wave soldering can reduce defect rates below 0.5%. Some manufacturers even report zero-defect soldering for through-hole components. You get these results because the system uses robotic precision and real-time monitoring. The machine checks every step, so you catch problems before they become defects. This level of control leads to a 40% drop in defects and up to 85% less touch-up labor compared to older methods.
When you minimize defects, you also cut down on rework. This saves time, money, and resources on your production line.
The SM-LⅡ Selective Wave Soldering Machine helps you reach these goals. Its dual solder stations let you run two processes at once or switch between them for different jobs. Nitrogen protection reduces oxidation by up to 20 times compared to air, which keeps solder joints clean and reliable. The machine’s real-time monitoring system tracks temperature, solder levels, and conveyor speed, so you always know your process is under control.
Consistent Quality
You can count on consistent quality when you use selective wave soldering. The machine records every process parameter, such as preheating temperature, solder pot temperature, and conveyor speed. This data gives you full traceability for each board, making it easy to spot trends or fix issues quickly.
-
Real-time monitoring systems track critical parameters and alert you to any changes.
-
Camera integration lets you watch the soldering process live and review photos or videos for quality checks.
-
Closed-loop servo motors and precision ball screws keep the soldering nozzle steady, even during complex movements.
These features help you maintain the same high standards across every shift and every batch. You do not have to rely on manual checks or hope that each operator follows the same steps. Instead, the machine ensures that every joint meets your quality requirements.
Automated process control also means fewer warranty claims and customer returns. One automotive electronics supplier saw an 83% drop in warranty claims after switching to automated assembly with selective wave soldering. You get better product reliability, fewer field failures, and a stronger reputation for quality.
Consistent quality is not just about fewer defects—it is about building trust with your customers and reducing costs over time.
Selective Wave Soldering Benefits
Cost Efficiency
You can achieve significant cost savings when you use selective wave soldering in your production line. This process reduces both direct and indirect expenses.
-
You need fewer operators, which lowers labor costs.
-
Smaller, right-sized machines allow you to run multiple products at the same time, increasing flexibility and reducing the need for extra equipment.
-
You save space on your factory floor because these machines have a compact design.
-
Quality improvements mean you spend less on rework and scrap.
-
Lower material usage, such as solder and flux, cuts down on consumable costs.
Many manufacturers report that selective wave soldering frees up staff to focus on higher-value tasks, helping you respond faster to customer needs.
Advanced machines like the SM-LⅡ Selective Wave Soldering Machine also help you save money over time. Although the initial investment may be higher, you quickly recover costs through reduced labor, fewer defects, and less waste. The machine’s real-time monitoring and automated controls keep your process stable, which means less downtime and more reliable output.
Flexibility and Throughput
You gain unmatched flexibility with selective wave soldering. You can program the machine to solder only the joints you need, which is perfect for complex or densely packed PCBs. The SM-LⅡ supports multiple solder types and allows you to adjust flux, temperature, and soldering time for each joint. This level of control helps you handle mixed-technology boards and switch between different projects quickly.
-
You can use different nozzles for tight spaces, preventing solder flooding and ensuring precise joints.
-
The system lets you switch between leaded and lead-free solder pots, so you can meet various customer requirements.
-
Modular and robotic designs allow you to upgrade or customize the machine as your needs change.
Selective wave soldering also boosts your throughput. By targeting only the required areas, you speed up production cycles and reduce the risk of thermal damage. Integrated systems combine fluxing, preheating, and soldering, which shortens cycle times and increases efficiency. Precise robotic control means you get consistent results with less manual intervention.
|
Benefit |
Description |
|---|---|
|
Process Flexibility |
Easily adapts to different PCB designs and production needs |
|
High Throughput |
Faster cycles and less rework increase overall output |
|
Consistent Quality |
Automated controls ensure repeatable, high-quality solder joints |
|
Space and Labor Saving |
Compact machines and fewer operators free up resources |
|
Sustainability |
Less waste and lower energy use support eco-friendly manufacturing |
With advanced machines like the SM-LⅡ, you can meet strict industry standards, improve product reliability, and stay competitive in demanding markets.
You can transform your manufacturing process by adopting advanced solutions like the SM-LⅡ. Automation and precision ensure every solder joint meets strict quality standards, saving you time and money. Manufacturers report fewer defects, less rework, and improved product reliability.
-
Modular designs and smart controls boost efficiency and flexibility.
-
Real-time monitoring and precise temperature management reduce waste and downtime.
Upgrading your equipment leads to long-term cost savings and a stronger reputation for quality.
FAQ
What types of PCBs work best with selective wave soldering?
You can use selective wave soldering for mixed-technology boards, sensitive components, and small to medium production runs. This process works well when you need precise soldering on specific joints.
How does the SM-LⅡ machine help reduce defects?
The SM-LⅡ machine uses real-time monitoring, dual solder stations, and nitrogen protection. You get stable solder waves and clean joints. The camera system lets you check quality during production.
Do you need special training to operate the SM-LⅡ?
You do not need advanced skills to run the SM-LⅡ. The user-friendly software lets you import PCB files and set up soldering paths easily. Basic training helps you program, maintain, and troubleshoot the machine.
Can you switch between different products quickly?
Yes! The SM-LⅡ stores process parameters for each job. You can load saved settings, adjust paths, and start new runs fast. This flexibility helps you handle different PCB designs without long delays.
