One Stop Solution For SMT Line Manufacturing Equipment
One Stop Solution For SMT Line Manufacturing Equipment
“S&M’S One Stop Solution For Smt Line Manufacturing Equipment” provides a full range of products to achieve comprehensive solutions for smart factories, including Reflow Oven, Nitrogen / Air Wave Solder, PCB Link Conveyor, Vertical Curing Oven, Flip Chip Bonder, Cooling Type Temporary Storage Machine, etc.
S&M’s solutions support the networking, automation and optimization of central workflows with hardware, software and services that enable electronics manufacturers to transition to the Intelligent Factory in stages and enjoy dramatic improvements in productivity, flexibility， quality and offer you the optimal solutions according to genre in terms of quality, quantity and number of processes required.
SMT LINE SOLUTIONS
Provide the personalized solution according to the different SMT assembly demand
Side Entry Loader
Fully Automatic Printing Press
0.5m Single Track Conveyor
Hanwha SM471
0.5m Single Track Conveyor
8 zones Single Track Air Reflow Oven
Single Track Cooling Conveyor
Online Post-furnace AOI
Side Entry Unloader
LED
SMT LINE SOLUTIONS
Provide the personalized solution according to the different SMT assembly demand
Triple-Frame Loader:
Three parallel material frames
PCB size: 50mm-250mm
AGV docking mode
PCB cleaning machine： Suitable for
SMT process cleaning needs
High flexibility
Conveyor: Durable, anti-static
conveyor belt
PCB size: 50mm to 460mm
Reflow Oven
Lead-free, hot air, multi-temperature zone
Conveyor system: single track/dual track
Air/nitrogen
Cooling conveyor;
With auxiliary cooling function
PCB size: 50mm~460mm
Single Station Shuttle Conveyor;
Versatile,with
flexible selection of
entry and exit
locations and directions
Buffer:Comprehensive
multi-function
Servo positioning system
Triple-frame PCB collector:
Three parallel racks
PCB size: 50mm-250mm
S&M Complete Line Solution Line
SMT LINE SOLUTIONS
Provide the personalized solution according to the different SMT assembly demand
0.8m
Vacuu
m Bare
Loader
0.8m
Monorail
Docking
Station
Printing Machine
0.8m
Monorail
Docking
Station
Fast Smart
Modular
Mounter
0.8m
Monorail
Docking
Station
10 Zones Single
Rail Air Reflow Oven
1.0m
Monorail
Cooling
Docking
Station
AOI
0.8m
Monorail
Docking
Station
Plate
Removal
Workbench

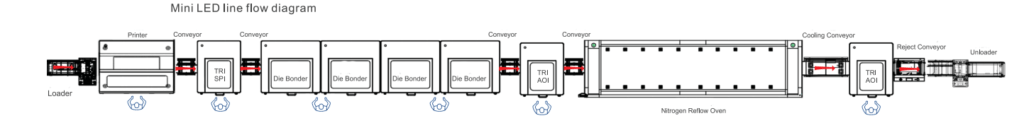

Smart Display&MiniLED
SMT LINE SOLUTIONS
Provide the personalized solution according to the different SMT assembly demand
Side
Entry
Loader
Lifting
Platform
Conveyor
1.0m Plug-in Line
Selective Wave Soldering
Conveyor
AOI
1.0m Welding Wire
Conceyor
Lifting Platform
Side Entry Unloader
New Energy Industry
SMT LINE SOLUTIONS
Provide the personalized solution according to the different SMT assembly demand
Suction Plate Machine 806#
Marking Machine
0.5m Conveyor
Printing Press
Dual Station Shuttle Conveyor
0.5m Conveyor
1.0m
Double-track
NG/OK
Conveyor
Dual-rail SPI
Dual
Station
Shuttle
Conveyor
Printing Press
0.5m Conveyor
0.5m Conveyor
Marking Machine
Suction Plate Machine 806#
SMT machine
0.5m Conveyor
Reflow Oven
Double-track Cooling Buffer
Online AOI
0.5m Conveyor
Double Frame
Double Track
NG/OK Unloader
