Wave Soldering plays a vital role in modern electronics manufacturing. Manufacturers choose this process for its ability to deliver high-speed assembly, consistent quality, and strong solder joints. The method supports mass production by handling thousands of components per hour and reducing operational costs. Companies benefit from reliable connections on through-hole PCBs, minimal defect rates, and efficient use of materials. Automation and advanced features further boost performance, making wave soldering ideal for high-volume electronics such as computers, automotive parts, and consumer devices.
Key Takeaways
-
Wave soldering enables fast, high-volume production by soldering many components at once, greatly increasing throughput.
-
Automation in wave soldering improves quality and consistency while reducing labor needs and operational costs.
-
The process creates strong, reliable solder joints that meet strict quality standards, ensuring durable electronic products.
-
Wave soldering is cost-effective due to labor savings and efficient use of materials, lowering the overall cost per board.
-
Manufacturers can reduce defects by optimizing process settings, maintaining equipment, and training operators properly.

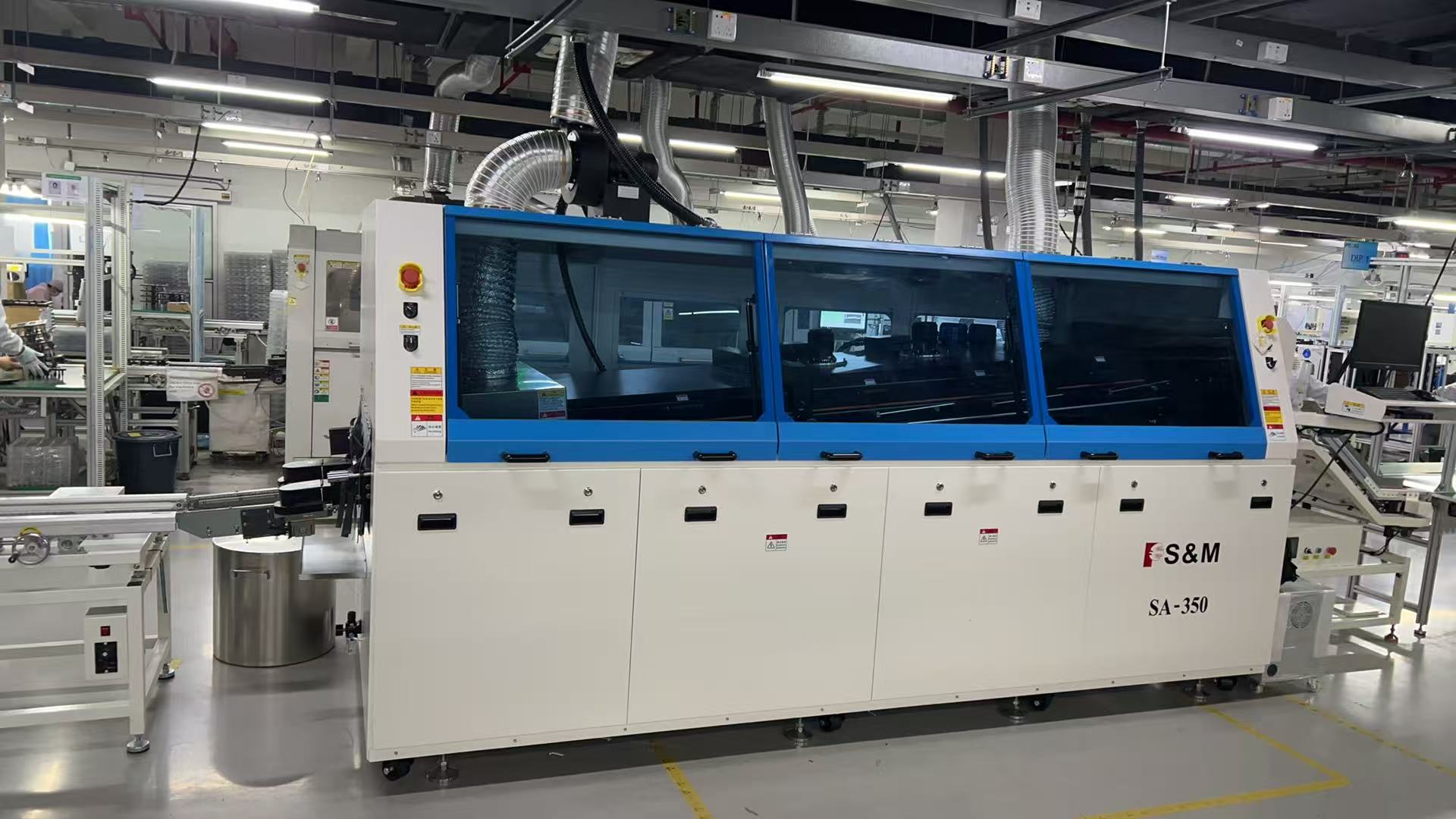

Wave Soldering Process
Process Steps
The Wave Soldering process uses a series of precise steps to ensure strong, reliable solder joints on printed circuit boards. Each step plays a critical role in achieving high-quality results for mass production.
-
Flux Application: Operators apply flux to the component leads and pad surfaces. This step cleans the metal surfaces, promotes solder adhesion, and prevents oxidation. Manufacturers may use a fine mist spray or a foam flux system for even coverage.
-
Preheating: The PCB moves through a preheating zone. This stage raises the board’s temperature, activates the flux, and reduces the risk of thermal shock. Preheating temperatures depend on the board type, ranging from 90°C for single-sided boards to up to 125°C for multilayered boards. Hot air or infrared heaters ensure uniform heating.
-
Solder Wave: The board passes over a wave of molten solder. Solder adheres only to the fluxed areas, forming secure electrical connections. This step creates consistent joints across all components.
-
Cooling: The PCB cools down, allowing the solder to solidify and lock components in place. Proper cooling prevents defects and ensures long-term reliability.
Tip: Consistent flux application and controlled preheating are essential for minimizing defects and achieving optimal soldering quality.
Automation Benefits
Modern production lines rely on automation to maximize efficiency and quality in Wave Soldering. Automated systems handle repetitive tasks, reduce manual labor, and maintain high throughput.
-
Automatic machines control temperature and solder flow with precision, improving soldering quality.
-
Automated flux spraying ensures even coverage, which is critical for strong solder joints.
-
Intelligent inspection equipment, such as AOI and X-ray systems, detects defects in real time. This reduces the need for manual inspection and rework.
-
Flexible line configurations allow quick adjustments for different PCB types, supporting continuous production.
-
Intelligent logistics systems, including conveyors and robots, move materials efficiently and reduce manual handling.
-
Automated lines require fewer operators—often just 1-3 people—compared to manual lines, which may need 5-20 people.
|
Aspect |
Benefit |
|---|---|
|
Production Speed |
Continuous operation increases throughput and reduces downtime. |
|
Quality Control |
Automated inspection maintains high standards with minimal intervention. |
|
Labor Efficiency |
Fewer operators needed, lowering labor costs. |
|
Process Optimization |
Real-time monitoring and data analysis improve process control. |
Automation in Wave Soldering ensures manufacturers meet the demands of mass production while maintaining consistent quality and reducing costs.
Efficiency
High Throughput
Manufacturers rely on high throughput to meet the demands of mass production. Wave Soldering stands out for its ability to process hundreds, even thousands, of printed circuit boards per hour. This rapid pace results from the continuous conveyor system and the simultaneous soldering of multiple component leads. The process far surpasses manual soldering, which cannot match the speed or volume required for large-scale operations.
🚀 Note: High throughput reduces production bottlenecks and shortens lead times, allowing companies to fulfill large orders quickly.
The following table compares the throughput of common soldering methods:
|
Soldering Method |
Throughput (Units per Hour) |
Notes |
|---|---|---|
|
Wave Soldering |
Several thousand boards per hour; over 150 boards per hour are explicitly mentioned |
Extremely fast; suitable for high-volume production; continuous flow process soldering many leads simultaneously |
|
Selective Soldering |
Typically 150-200 units per hour |
Slower than wave soldering; solder components individually; better for low to medium volumes and rework |
|
Manual Soldering |
Not explicitly quantified; implied to be slower than automated methods |
Manual process; significantly lower throughput compared to wave soldering due to lack of automation |
Wave Soldering evolved from manual dip soldering to an automated, conveyor-based process. This advancement increased throughput dramatically and reduced operator risk. By soldering many leads at once, the process enables manufacturers to achieve the speed and efficiency required for mass production environments.
Consistency
Consistency in soldering quality is essential for reliable electronic products. Automated Wave Soldering lines deliver uniform results across every board, minimizing the risk of human error. Automation ensures that each step—flux application, preheating, soldering, and cooling—follows precise parameters. This control leads to repeatable, high-quality solder joints.
Typical defect rates for Wave Soldering in optimized, high-volume environments range from 120 to 500 parts per million (ppm). While selective soldering can achieve even lower defect rates, between 25 and 80 ppm, it does so at the expense of speed. In poorly optimized processes, defect rates can rise significantly, sometimes reaching as high as 50%. This highlights the importance of process control and continuous monitoring.
-
Key points on defect rates:
-
Most Wave Soldering lines achieve 120–500 ppm defect rates with proper optimization.
-
Selective soldering offers lower defect rates but slower throughput.
-
Poor process control can lead to much higher defect rates.
-
Automated inspection systems, such as AOI and X-ray, further enhance consistency by detecting defects in real time. These systems allow manufacturers to address issues immediately, reducing rework and ensuring that each board meets strict quality standards.
Cost-Effectiveness
Labor Savings
Manufacturers achieve significant labor savings with Wave Soldering in mass production environments. Automated systems handle most tasks, reducing the need for manual intervention. Operators focus on monitoring equipment and performing quality checks rather than soldering each joint by hand. This shift lowers the number of required personnel and minimizes training costs.
💡 Automated lines often require only a few operators, while manual soldering lines may need a much larger team. Fewer workers mean lower payroll expenses and less time spent on training.
A comparison of operator skill requirements shows that basic skills such as reading blueprints and assembling PCBs are essential. Hands-on training and certifications like IPC-A-610 or IPC J-STD-001 help operators progress from entry-level roles to senior positions. Continuous learning through workshops and online courses ensures that staff remain effective and safe.
|
Training/Skill Area |
Description |
|---|---|
|
Basic Skills |
Reading blueprints, assembling PCBs, and monitoring machines |
|
Hands-on Training |
Internships, entry-level positions, and on-the-job training |
|
Certifications |
IPC-A-610, IPC J-STD-001, IPC-7711/7721 |
|
Career Progression Stages |
Entry Level to Lead Operator |
|
Continuous Learning |
Workshops, online courses, and manufacturer manuals |
|
Safety and Environment |
Safety protocols, PPE use, and maintaining a safe work environment |
Automated Wave Soldering lines not only reduce labor costs but also streamline production, allowing manufacturers to allocate resources more efficiently.
Material Efficiency
Material efficiency plays a crucial role in controlling costs during mass production. Wave Soldering uses controlled flux application and a molten solder wave to optimize solder usage. The process minimizes waste by creating consistent and reliable joints, which reduces the need for rework and extra cleaning.
-
Controlled flux application ensures that only necessary areas receive solder, preventing excess use.
-
Dual-wave soldering reduces defects such as bridging and cold soldering, which lowers solder waste.
-
Efficient process steps, including preheating and cooling, help minimize defects and conserve materials.
-
Compared to manual soldering, automated systems reduce errors and rework, further decreasing solder consumption.
Environmental improvements also contribute to material efficiency. Using nitrogen in the soldering process reduces oxidation and dross build-up, which lowers solder consumption and defect rates. On-site nitrogen generation decreases the carbon footprint and operating costs, supporting a greener production process.
A cost comparison of soldering methods highlights the impact on material and operating expenses:
|
Soldering Method |
Equipment Cost |
Operating Cost per Board |
Notes on Cost Factors |
|---|---|---|---|
|
Wave Soldering |
Lower initial equipment |
Higher electricity, flux, solder consumption; additional masking and cleaning needed |
|
|
Selective Soldering |
Higher equipment cost |
Much lower operating cost (up to 5 times cheaper) |
Less electricity, flux, solder; no cleaning; less rework; no protective taping |
|
Reflow Soldering |
Higher initial setup |
Cost-effective for SMT-heavy, large-scale runs |
Higher initial cost but efficient for SMT; may need secondary processes for through-hole components |
Manufacturers must consider both initial investment and ongoing operating costs. Advanced Wave Soldering systems require significant upfront investment, including equipment, training, and facility upgrades. However, these systems deliver high throughput and efficiency, making them suitable for large-scale production.
📊 Material efficiency and labor savings combine to lower the overall cost per board, especially when producing thousands of units. Companies benefit from reduced waste, streamlined operations, and improved profitability.
Reliability
Strong Solder Joints
Wave Soldering produces robust mechanical and electrical connections for through-hole components. The process uses several steps to guarantee joint strength and reliability:
-
Operators apply flux to clean metal surfaces and remove impurities. This step ensures proper solder adhesion.
-
Preheating activates the flux and reduces thermal shock, which improves soldering performance.
-
The PCB passes over a wave of molten solder at temperatures between 250°C and 260°C. The solder wets exposed metal areas and forms solid joints as the board cools.
-
Cooling solidifies the solder, preventing cold joints and thermal stress.
Manufacturers adjust conveyor speed, preheat temperature, and wave height to optimize solder contact time. Proper settings prevent defects such as bridging or incomplete soldering. Spray fluxing provides uniform coverage for complex boards, while foam fluxing works well for simpler designs. These methods help prevent solder balls and poor wetting, resulting in strong connections.
Reliable solder joints support high-performance electronics and reduce the risk of failure in demanding applications.
Low Defect Rates
Wave Soldering supports low defect rates by combining automation, process control, and compliance with international standards. Manufacturers follow IPC-A-610 guidelines to ensure solder joints meet strict quality requirements. Operators and inspectors receive training and certification to maintain consistent standards.
|
Aspect |
Description |
|---|---|
|
IPC-A-610 Role |
Defines visual acceptability criteria for solder joints, including wave soldered joints. |
|
Defect Classification |
Identifies defects like cold joints, insufficient fill, bridging, and solder balls with severity levels. |
|
Product Classes |
Class 1 (general), Class 2 (dedicated service), Class 3 (high reliability) with increasing solder joint quality requirements. |
|
Wave Soldering Requirements |
For through-hole joints: 75%-100% barrel fill, smooth concave meniscus, proper lead protrusion, no voids or cold solder. |
|
Quality Control Inspections |
First article, in-process, and final inspections using IPC-A-610 visual criteria and calibrated tools. |
|
Benefits |
Ensures consistent, repeatable solder joints, reduces defects, rework, scrap, and improves reliability and customer assurance. |
Automated inspection systems and standard operating procedures help manufacturers detect and correct defects quickly. Adherence to IPC-A-610 and J-STD-001 standards ensures assemblies meet customer expectations for safety and reliability. Consistent process control and operator training further reduce defect rates, making Wave Soldering a dependable choice for mass production.
Through-Hole Suitability
THT Assembly
Wave Soldering excels in assembling through-hole technology (THT) components. Manufacturers use this process for resistors, capacitors, inductors, switches, relays, connectors, and potentiometers. The method suits large power devices and high pin count connectors, especially where surface-mount technology (SMT) does not meet mechanical or electrical requirements. Industries such as aerospace, defense, medical, oil and gas, telecommunications, and transportation rely on THT assembly for products exposed to high power, voltage, or mechanical stress.
The process offers several advantages for THT assembly:
-
Strong mechanical bonds for components with axial or radial leads
-
Reliable electrical performance in demanding environments
-
Higher heat tolerance compared to SMT
-
Fast, consistent soldering for mass production
Manufacturers prefer Wave Soldering for single-sided boards or those with through-hole components on one side. The process supports large batches and delivers uniform results.
To minimize warpage and defects, operators follow best practices:
-
Distribute high thermal mass components evenly
-
Place power components near board edges for improved heat dissipation
-
Avoid sensitive components near connectors or mounting holes
These steps help reduce mechanical stress and thermal gradients, resulting in fewer defects and more reliable assemblies.
Large PCB Handling
Wave Soldering equipment handles large, low-complexity boards with ease. Machines such as the Electra wave soldering system process PCBs up to 610 mm (24 inches) wide. Features like robust conveyors, automatic lead clearance, and motorized width adjustment enable reliable soldering of thick boards and pallets. This capability surpasses selective soldering machines, which typically support boards up to 350 mm wide.
|
Soldering Method |
Maximum PCB Width Supported |
|---|---|
|
Wave Soldering |
610 mm (24 inches) |
|
Selective Soldering |
350 mm |
Large PCBs often require strong mechanical bonds and high power handling. Wave Soldering provides simultaneous soldering of many joints, reducing handling and mechanical stress. Controlled preheating and solder wave height further minimize warpage and thermal exposure. Cooling after soldering locks components in place and prevents shifting, ensuring robust and reliable assemblies.
Wave Soldering remains the preferred choice for large, single-sided boards and applications where SMT is unsuitable.
Wave Soldering vs. Other Methods
Reflow Comparison
Manufacturers often compare wave soldering and reflow soldering when selecting a process for mass production. Each method offers unique strengths. Wave soldering delivers high-speed assembly by soldering multiple through-hole components at once. This approach suits large-scale production of simple boards. Reflow soldering, on the other hand, excels with surface mount technology (SMT) and complex assemblies. It uses precise temperature control and solder paste application, which results in lower defect rates and better performance for fine-pitch components.
The following table highlights key differences:
|
Aspect |
Wave Soldering |
Reflow Soldering |
|---|---|---|
|
Speed |
High; solder many components simultaneously |
Moderate; handles complex SMT with controlled heating |
|
Cost |
Lower initial and maintenance costs |
Higher upfront investment and maintenance |
|
Defect Rates |
Higher (2-5%) if not optimized |
Lower (<1%) due to precise control |
-
Wave soldering works best for high-volume through-hole production.
-
Reflow soldering provides better results for high-density SMT assemblies and reduces rework costs over time.
Selective Soldering Comparison
Selective soldering addresses the needs of boards with mixed technologies or densely packed components. Unlike wave soldering, which fluxes and solders the entire board, selective soldering targets specific areas. This method uses localized nozzles and programmable parameters, offering high precision and less material consumption. However, selective soldering operates at a slower pace and requires more setup time, making it less suitable for mass production.
|
Criteria |
Wave Soldering |
Selective Soldering |
|---|---|---|
|
Process Speed |
Fast; all joints at once |
Slow, sequential soldering |
|
Masking Needs |
Minimal masking |
|
|
Operating Cost |
Lower due to targeted application |
|
|
Board Complexity |
Best for simple, standard boards |
|
|
Suitability for High Volume |
Excellent |
Limited |

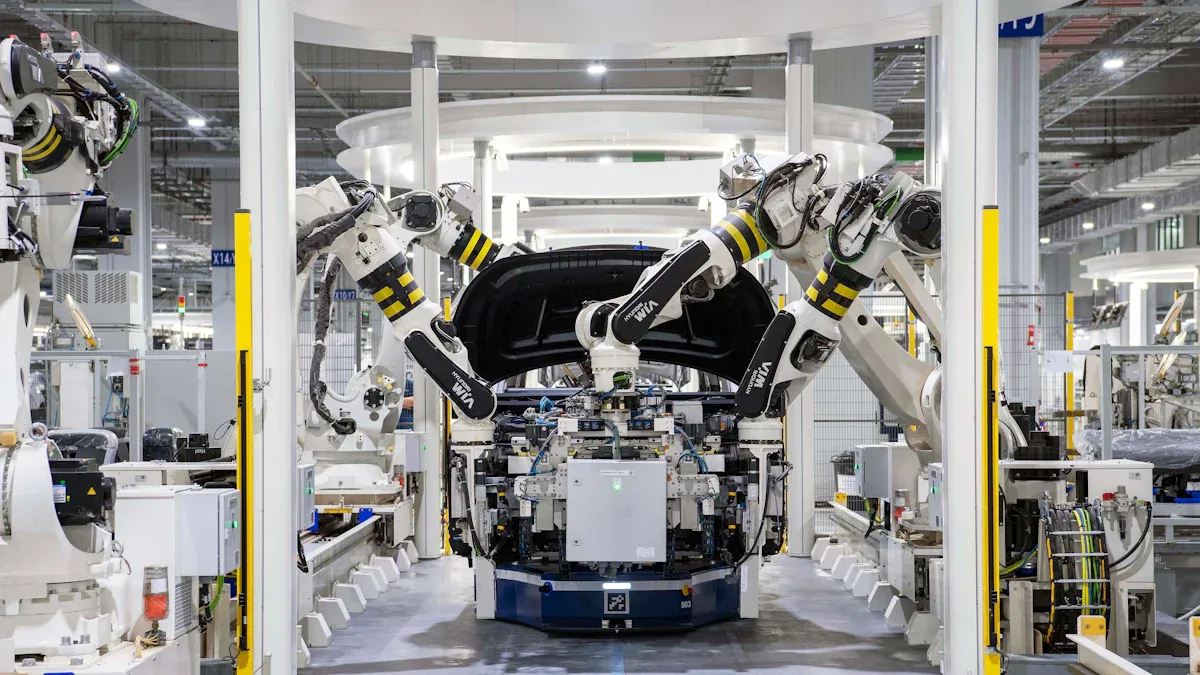

🚗 Manufacturers in automotive, computer, and television industries rely on wave soldering for efficient assembly of through-hole components. This process ensures strong joints and supports the high reliability standards required in these sectors.
Challenges
Common Issues
Manufacturers encounter several recurring problems during high-volume soldering processes. These issues can affect product quality and yield if not addressed promptly.
-
Insufficient fill in plated through-hole barrels often leads to weak electrical connections.
-
Large voids within solder joints may result from moisture outgassing or poor flux penetration.
-
Dry joints and incomplete solder fill can occur when preheating temperatures are too low or flux application is uneven.
-
Excessive solder on pins or component ends sometimes causes bridging or short circuits between leads.
-
Solder balls, spatter, and splash back frequently appear due to wave turbulence or improper flux drying.
-
Icicles, flags, and excessive deposits may form when the solder pot temperature or dwell time is incorrect.
-
Component misalignment and irregular pin placement can increase the risk of defects.
-
Oxidation and contamination of solder, boards, or components often contribute to poor wetting and unreliable joints.
⚠️ Regular inspection and process monitoring help identify these defects early, reducing costly rework and scrap.
Solutions
Manufacturers implement a range of strategies to minimize defects and maintain consistent quality.
-
Optimize process parameters by maintaining solder bath temperature between 245°C and 265°C, adjusting conveyor speed to 1.0–1.5 m/min, and setting wave height to just touch the PCB bottom.
-
Enhance flux application using spray or foam systems, monitor flux density, and ensure uniform coverage to improve solder wetting.
-
Improve PCB design with adequate component spacing (minimum 2.5mm between leads), proper pad size, and perpendicular orientation to the wave direction.
-
Maintain equipment by cleaning solder pots daily, checking wave uniformity, and calibrating sensors for consistent operation.
-
Implement quality control measures such as Automated Optical Inspection (AOI), visual checks, and Statistical Process Control (SPC) to detect and address defects quickly.
-
Train operators on machine setup, PCB handling, and troubleshooting to reduce human error and improve first pass yield.
-
Store PCBs and components in dry environments to prevent moisture-related defects like voids and blow holes.
-
Use thermal profiling tools to ensure uniform temperature distribution and avoid cold spots.
|
Solution Area |
Key Actions |
|---|---|
|
Process Optimization |
Control temperature, speed, and wave height |
|
Flux Management |
Apply evenly, monitor density |
|
PCB Design |
Space components, orient properly |
|
Equipment Maintenance |
Clean pots, calibrate sensors |
|
Quality Control |
AOI, SPC, visual inspection |
|
Training |
Operator education and troubleshooting |
|
Storage |
Dry environments for PCBs and components |
🛠️ Continuous improvement and regular monitoring allow manufacturers to maintain high reliability and minimize defects in mass production environments.
Wave Soldering delivers unmatched speed, consistent quality, and significant cost savings for high-volume electronics manufacturing. Industry case studies show improved efficiency, reduced defects, and robust solder joints, especially for through-hole PCBs. Experts recognize its continued value in sectors like automotive and industrial electronics, where reliability is critical. As automation and eco-friendly practices advance, manufacturers can expect even greater process optimization. Companies seeking efficient, reliable assembly for large-scale production should consider wave soldering as a proven solution.
FAQ
What types of PCBs work best with wave soldering?
Wave soldering works best with single-sided or double-sided PCBs that use through-hole components. Manufacturers often choose this process for large, low-complexity boards in automotive, industrial, and consumer electronics.
How does wave soldering reduce production costs?
Wave soldering reduces costs by automating repetitive tasks and minimizing manual labor. The process also uses materials efficiently, which lowers waste and rework. Companies benefit from lower cost per board in high-volume production.
Can wave soldering handle mixed-technology boards?
Manufacturers can use wave soldering for mixed-technology boards, but they must mask or shield sensitive surface-mount components. Selective soldering may offer better results for complex assemblies with both SMT and through-hole parts.
What maintenance does wave soldering equipment require?
Regular maintenance includes cleaning solder pots, calibrating sensors, and checking conveyor systems. Operators inspect flux systems and replace worn parts to ensure consistent performance and prevent defects.
