When you pick a wave soldering machine, you must see if it works with your automation needs. The best machine can make your wave soldering better and help you meet your production goals. S&M is known for its smart solutions and new ideas. You should check if the machine fits with what you use now, what soldering features it has, and if it can change as your process grows later.
Key Takeaways
Pick a wave soldering machine with a strong conveyor system. This helps parts move smoothly and makes soldering better.
Make sure the software can share data right away. This helps you find and fix problems fast.
Choose machines that have automatic fluxing features. These features make soldering more accurate and lower mistakes.
Check if the machine works with your automation setup. This will help your production run better and improve quality.
Think about future upgrades when picking a machine. Modular machines can change as your production grows.
Key Automation Criteria for Wave Soldering Machines
Conveyor and Transmission Systems
A wave soldering machine needs a strong conveyor system. The conveyor moves your pcb through each step. The inlet conveyor helps you put parts on before soldering. The outlet conveyor cools the pcb after soldering. You should choose a machine with steady conveyor speed. This keeps soldering even and quality high. Conveyor angles can be changed from 4 to 7 degrees. This helps with different pcb sizes and shapes. S&M’s SM-LⅡ Series uses steel rollers and stepper motors. These parts help the conveyor move smoothly. They also cut down on downtime and boost output. Predictive maintenance and automatic controls stop delays. These features keep your production line working well.
Software Integration and Data Connectivity
Software integration is very important today. Your wave soldering machine should use protocols like SMEMA or IPC CFX. These let machines share information and link with MES or ERP systems. You can check quality, plan jobs, and share data fast. Real-time data helps you find problems quickly. Advanced machines use sensors and cameras to spot flaws. This helps control the process better. S&M’s smart monitoring system tracks temperature and spray flow. It also checks other important settings. This keeps soldering quality high and makes it easy to trace work.
Automatic Fluxing and Soldering Features
Automatic fluxing and soldering make your work more accurate. The SM-LⅡ Series has spray fluxers that change flow and nozzle spot for each pcb. This gives even coverage and saves flux. Titanium finger conveyors and motorized width changes help with different board sizes and lead-free solder. Automatic cleaning keeps the machine working well. These features make soldering better and lower defects. Automated temperature control keeps things steady. This is needed for lead-free soldering.
Feature | Description |
|---|---|
Titanium Finger Conveyor | Handles heavy boards and resists damage. |
Automatic Finger Cleaning | Stops contamination and keeps soldering even. |
Motorized Width Adjustment | Fits many pcb sizes and works faster. |
Automatic Spray Fluxer | Gives good flux coverage and saves flux. |
Compatibility with Existing Automation Lines
You need to make sure your machine fits your current setup. The wave soldering machine should connect easily with other tools. S&M’s modular design helps link with loaders, unloaders, and inspection systems. This lets you make more products and meet new needs. When machines work together, you get better results and higher quality.
Evaluation Steps for Automation Compatibility
Assessing Production Needs and Board Size
Start by thinking about what you need to make. Figure out how many boards you want each day. Decide if you need to make a lot or just some. The kind of pcb you use is important. Some boards are small and thin. Others are big and heavy. Pick a wave soldering machine that fits your pcb size and thickness.
You should know the board sizes you will use. This helps you pick the right wave soldering system.
Here is a table that shows common pcb sizes and weights for automated wave soldering machines:
Parameter | Value Range |
|---|---|
Minimum PCB Size | 50mm x 50mm |
Maximum PCB Size | 350mm x 350mm |
PCB Thickness | 0.5mm to 6mm |
Maximum PCB Weight | Up to 5kg |
Max Component Height | Up to 100mm (top) |
Check your board thickness and weight before you start. If your boards have tall parts, make sure your wave soldering machine can handle them. Doing this helps you avoid problems later.
Matching Machine Specs to Automation Goals
Match your wave soldering machine specs to your automation goals. Look at things like conveyor speed, flux application, and solder bath checks. These specs help you get good soldering and strong joints.
Specification | Description |
|---|---|
Conveyor Speed Consistency | Ideal speed of 1.0 to 1.5 meters per minute to ensure proper solder wetting and avoid bridging. |
Flux Application Uniformity | Even application of flux is crucial; use automated fluxers and check density regularly. |
Monitoring Solder Bath Composition | Regular testing of solder composition to maintain quality, ideally every 1,000 boards or weekly. |
Use a wave soldering machine with automatic fluxers. These give even coverage and save flux. Machines with smart monitoring let you check solder bath often. This keeps your soldering quality high. S&M’s SM-LⅡ Series has advanced nozzle design and closed-loop servomotor technology. These features help you get steady performance and save energy.
When you match machine specs to your goals, you get many benefits:
You save money and waste less material.
You keep workers safe and avoid mistakes.

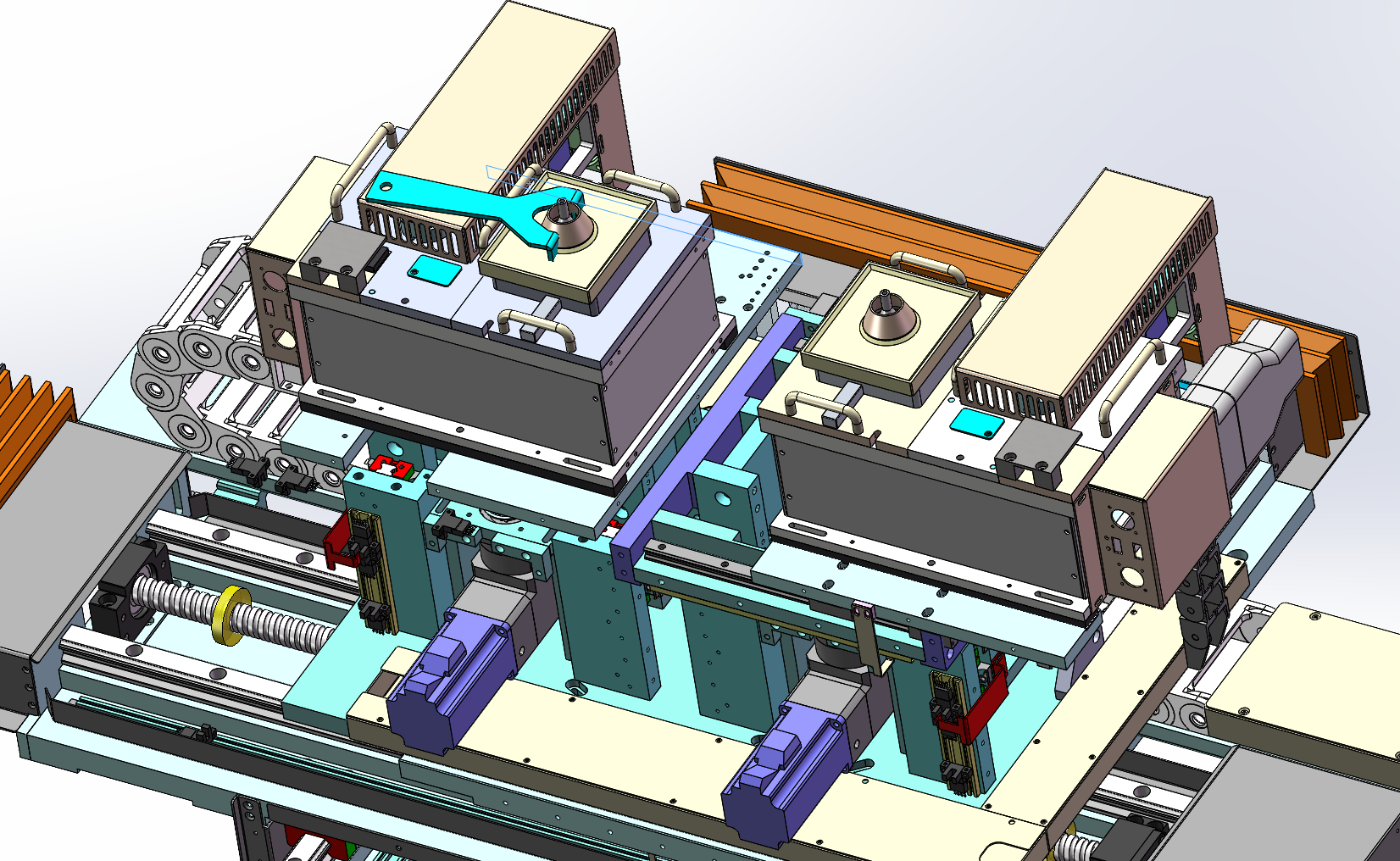

Verifying Integration with S&M Selective Wave Soldering
Check if your wave soldering machine fits with your production line. S&M selective wave soldering machines have many features for better control and soldering quality.
Feature | Description |
|---|---|
Advanced Nozzle Design | High-performance nozzles for welding systems that improve precision and stability in soldering. |
Temperature Control | Utilizes nitrogen for inerting and protection, with a PID control system for precise temperature management. |
Closed-loop Servomotor Technology | Ensures high accuracy and repeatability in welding quality through intelligent motor control. |
Motion Control System | Features a user-friendly touch screen for controlling various parameters like speed and temperature. |
CCD Visual Positioning System | Automatically adjusts based on the board’s offset for enhanced accuracy. |
Pewter Height Detection System | Tests and adjusts the tin spraying height for stable wave control. |
Spray Solder Monitoring System | Provides real-time footage of the soldering process for better oversight and quality assurance. |
You can use the SM-LⅡ Series for precise temperature control and steady soldering. The machine uses nitrogen for lead-free solder and keeps things safe. The CCD visual positioning system helps you get accurate results, even if your pcb moves a little. The spray solder monitoring system lets you watch the soldering in real time. These features help you keep high soldering quality and make your production line more reliable.
If you want to upgrade or add new boards, S&M’s modular design makes it easy. You can connect the wave soldering machine with loaders, unloaders, and inspection systems. This helps you grow your production and keep good compatibility with your automation goals.
Best Practices for Choosing the Best Wave Soldering Machine
Avoiding Common Selection Pitfalls
It is important to avoid mistakes when picking a wave soldering machine. Some people choose machines that do not keep the temperature steady. This can make solder joints weak and cause problems. Sometimes, the tin does not melt right or the pump fails. The nozzle can jam and stop the spray from working. You can stop these problems by checking the machine often and keeping it clean.
Here are some best practices you should follow:
Clean the solder pot and flux applicators every day.
Use automated optical inspection to find defects early.
Pick lead-free solder alloys if your job needs them.
Train workers to fix problems and change settings.
Tip: Regular cleaning and training help your wave soldering machine work well and make better products.
Tips for Seamless Automation Integration
You can make your production line better by doing a few things. Always use a calibrated thermocouple to check the solder pot and preheat temperatures. Change the settings if the temperature moves more than three degrees. Keep your equipment calibrated, like wave height and conveyor speed. This helps you get even soldering and good automation.
Tip | Description |
|---|---|
Proper Training | Teach all workers how to use the wave soldering machine and improve the process. |
Process Optimization | Control heater settings and conveyor speeds for better soldering results. |
Use of Improvement Methods | Set goals and check results often to keep getting better. |
You should design your pcb with thermal reliefs. Angle the board in the solder pallet. This helps the solder flow and stops bridging.
Planning for Future Upgrades with S&M
You should think about the future when picking a wave soldering machine. S&M gives you advanced features and a modular design. This lets you add new tools or change your process as you make more products. Plan upgrades by setting clear goals, training your team, and using the Deming PDSA cycle to check progress.
Strategy | Focus Area |
|---|---|
Scalability | Supports future growth |
Compliance | Meets new standards |
Innovation | Uses eco-friendly processes |
Automation | Reduces manual work and downtime |
You can ask S&M experts for help. They know how to match machine features to your needs. They help you work faster, save money, and get strong results. S&M’s solutions work for high-volume and mid-volume production. You can trust their experience to help you face new challenges.
When picking a wave soldering machine, match its features to your needs. This helps you get better quality and strong soldering. You can do these steps:
Decide what you need for wave soldering and automation.
Look at different machines and see which fits your goals.
Make sure your soldering process follows lead-free rules.
Team up with S&M to help your work and future changes.
A good wave soldering setup makes work faster and saves money. It also helps you try new ideas in making things. S&M gives expert advice and smart solutions for your soldering jobs.
FAQ
What is the main benefit of using a selective wave soldering machine?
You can control soldering very well. This helps you make fewer mistakes. It also helps you get better quality. You can work with hard boards easily.
How does automation improve wave soldering?
You can work faster and keep things steady. Automation lets you watch each step. You can find problems early. This keeps your process safe.
Can you upgrade your wave soldering line in the future?
Yes, you can add new parts or more machines. This helps you do new jobs. You do not need to buy a whole new system.
What should you check before buying a wave soldering machine?
Check your board size and how many you make. Think about what automation you need. Make sure the machine fits your setup now. See if it can grow with you later.
How do you keep your wave soldering process reliable?
Clean your tools often. Teach your team what to do. Use live monitoring to find problems fast. This helps you keep good quality.
