Reflow Oven vs Wave Soldering: Which Method Suits Your SMT Line Best?

When you compare Reflow Oven vs Wave Soldering, you will find that reflow ovens usually suit SMT lines best, especially when you work with surface mount components. Wave soldering often works better for through-hole parts, but some production lines use both methods. Cost matters—wave soldering can save money for high-volume runs, while reflow ovens require more investment and specialized stencils. You should also think about speed and which components you need to solder to choose the right method.

Key Takeaways

• Reflow soldering is ideal for surface mount devices (SMDs) and high-density boards. It offers better control over temperature and reduces oxidation, leading to stronger joints.

• Wave soldering works best for through-hole technology (THT) components. It is cost-effective for high-volume runs and provides reliable joints for larger components.

• Consider your board design and component types when choosing a method. Use reflow for boards with over 80% SMT components and wave for THT-heavy designs.

• Reflow ovens require a higher initial investment and more maintenance. Wave soldering has lower setup costs and simpler maintenance, making it budget-friendly.

• To minimize defects, optimize your soldering process. Use the right temperature profiles and quality materials for reflow, and ensure proper flux application for wave soldering.

Soldering Methods

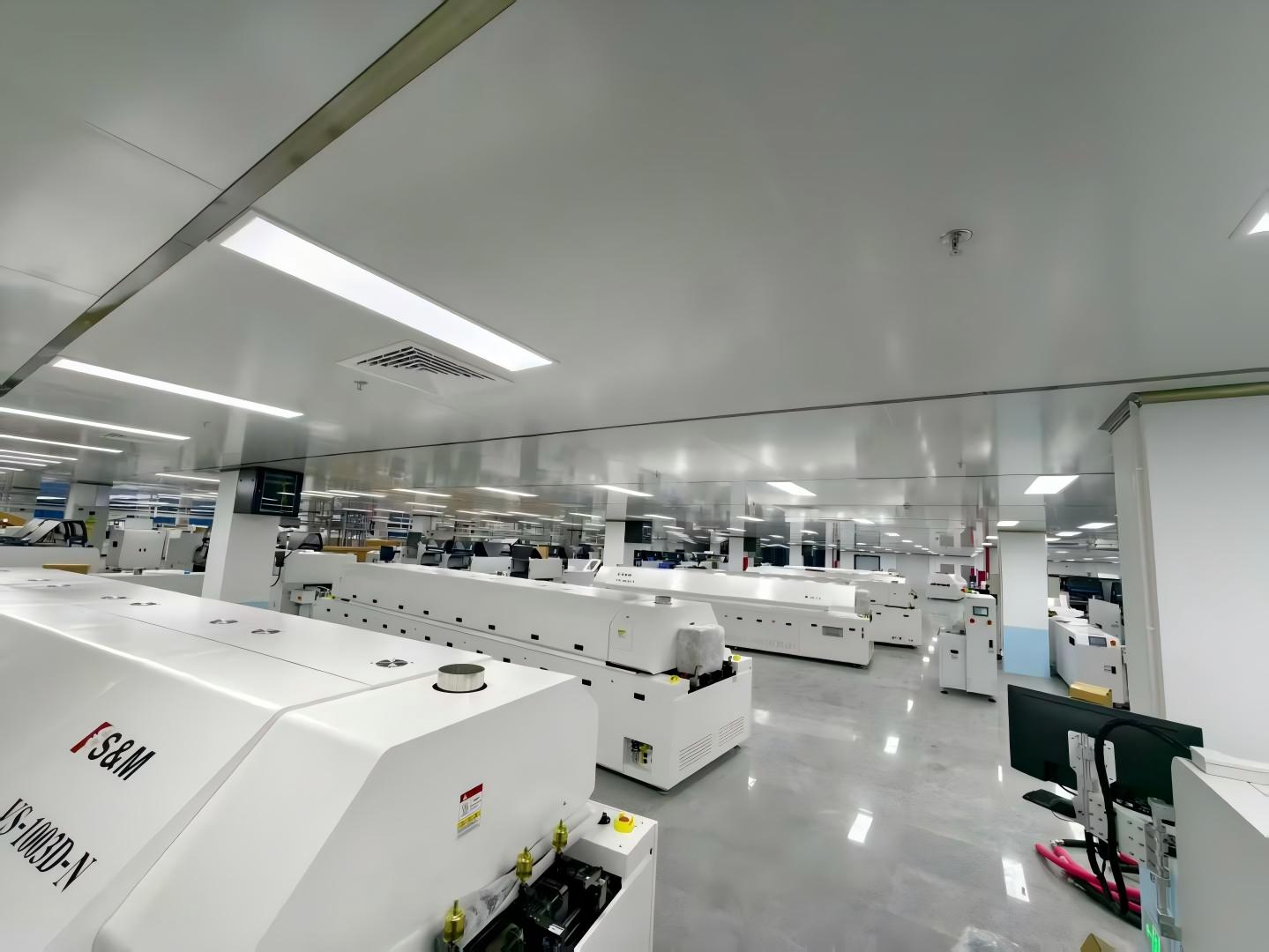

Reflow Soldering

You will find reflow soldering as the most common method for attaching surface mount devices (SMDs) to printed circuit boards (PCBs). This process uses a reflow oven to heat the board and melt solder paste, creating strong electrical connections. Here is how the process works:

1. Place solder paste on the PCB pads.

2. Position the SMD components on the paste.

3. Move the board into the reflow oven.

4. The oven heats the board in stages, following a precise temperature profile.

5. The solder melts and forms joints.

6. The board cools, locking the components in place.

Tip: Lead-based solder melts at about 183 °C, while lead-free solder needs higher temperatures, up to 250 °C. The oven uses a ramp-up, soak, and peak phase to avoid damaging components.

Wave Soldering

Wave soldering works best for through-hole technology (THT) components. In this method, you pass the PCB over a wave of molten solder. The solder flows up through the holes, connecting the leads to the board. The main steps include:

1. Melt the solder in a large tank.

2. Clean the components and the PCB.

3. Place the PCB on a conveyor.

4. Move the board over the solder wave.

5. Clean the board after soldering.

Common defects in wave soldering include solder bridging, lifted components, and solder balls. You can reduce these problems by controlling solder temperature, using enough flux, and cleaning surfaces well.

Main Differences

The table below shows how the main soldering methods compare:

When you compare Reflow Oven vs Wave Soldering, you see that reflow suits SMT lines, while wave soldering fits THT or mixed lines. Each method has unique steps, equipment, and best-use cases.

Reflow Oven vs Wave Soldering

Pros and Cons

When you compare Reflow Oven vs Wave Soldering, you see clear differences in how each process works and what benefits they offer. Reflow soldering uses hot air or infrared heat to melt solder paste and attach surface mount components. Wave soldering uses a wave of molten solder to connect through-hole parts and sometimes mixed technology boards.

Here is a table that shows the main advantages and disadvantages of each method:

You will notice that reflow soldering gives you better control over temperature and reduces oxidation. This results in higher-quality joints, especially for fine-pitch components. However, you may face higher costs if you need nitrogen and more complex maintenance. Sometimes, you may observe tombstoning defects with reflow, but you also achieve improved wetting and better results for dense boards.

Wave soldering works well for through-hole parts and can lower labor costs. You get strong joints and a fast process for large batches. However, this method does not suit fine-pitch SMT parts. You may also deal with bridging, shadowing, and extra cleaning due to flux residues.

Note: Wave soldering usually costs less to set up than reflow ovens. Reflow ovens need more specialized and expensive equipment, especially for high-performance assembly.

When to Use Each

You should choose between Reflow Oven vs Wave Soldering based on your board design, component types, and production needs.

• Use reflow soldering when you build boards with many surface mount devices. This method is the standard for most SMT lines. For example, smartphone manufacturers use reflow ovens to handle high-density PCBs with fine-pitch components. They need precise temperature control to protect sensitive chips and want to reduce solder use. In one case, a company saw a 40% increase in PCB density and a 60% drop in thermal failures after switching to reflow soldering.

• Choose wave soldering if your boards have mostly through-hole parts or a mix of THT and some SMT. This method works best for moderate complexity designs and high-volume runs. You can save on equipment costs and get reliable joints for connectors, large components, and power devices.

• For mixed technology boards, you may use both methods. You can run SMT parts through a reflow oven first, then use wave soldering for through-hole parts.

Here are some key points to help you decide:

• Reflow soldering is more common for SMT assemblies, especially in high-volume manufacturing.

• Wave soldering is less common for SMT but remains important for THT and mixed lines.

• Reflow ovens require a higher initial investment but offer better results for complex, high-density boards.

• Wave soldering suits simpler boards and helps you keep equipment costs lower.

Tip: If you work with fine-pitch SMT parts or need high reliability, reflow soldering is usually the better choice. For large connectors or power components, wave soldering may serve you better.

When you compare Reflow Oven vs Wave Soldering, always match your method to your product’s needs, your budget, and your production goals.

Decision Factors

Component Compatibility

When you choose between soldering methods, you need to match the process to your components. Reflow ovens work best for surface mount components (SMDs). You often see these on modern PCBs. Here are the types of components that fit each method:

• Reflow oven soldering is ideal for:

  • Most surface-mount components (SMDs)

  • Components with leads under the package, such as QFNs and BGAs

• Wave soldering is best for:

  • Through-hole devices, like connectors and large capacitors

  • Some surface-mount devices, especially passive parts like resistors and capacitors

You should avoid using reflow ovens for most through-hole parts. Wave soldering handles these better. If your board uses both SMD and through-hole parts, you may need both methods.

Efficiency & Cost

You want your production line to run smoothly and stay within budget. When you compare Reflow Oven vs Wave Soldering, consider setup costs, speed, and maintenance.

Reflow ovens cost more to buy and maintain. Their complex systems need regular checks. Wave soldering equipment costs less and needs less maintenance. If you plan high-volume SMT production, reflow ovens can save time per board. For high-volume THT, wave soldering is efficient and cost-effective.

💡 Tip: Plan for higher maintenance costs if you choose reflow ovens. Their advanced features require more attention.

Quality & Reliability

You want reliable solder joints and minimal defects. Each method has its own quality challenges.

• Reflow soldering can cause issues like tombstoning, solder bridging, and voiding. You can reduce these by optimizing temperature profiles, using good solder paste, and following PCB design rules.

• Wave soldering may lead to bridging, shadowing, or flux residue. Careful process control and cleaning help prevent these problems.

Manufacturers often see higher reliability with reflow soldering for fine-pitch SMDs. Wave soldering gives strong joints for through-hole parts but may not suit tiny or complex SMT layouts.

Note: Good process control and regular inspection improve quality for both methods.

Recommendations

Best for SMT Lines

If you run an SMT line, reflow soldering usually gives you the best results. This method handles high-density boards and fine-pitch components well. You can achieve strong, reliable joints for most surface-mount devices. To get the most from your reflow oven, follow these best practices:

1. Calibrate and Maintain Reflow Equipment
   Regularly check your oven’s temperature zones, conveyor speed, and airflow. This keeps your process stable.

2. Choose the Right Solder Paste
   Pick solder paste that matches your application. Look at the flux type and alloy composition.

3. Optimize PCB Design for Reflow
   Design your boards with manufacturing in mind. Use consistent pad sizes and avoid large differences in thermal mass.

4. Create a Reflow Profile per Assembly
   Set a custom thermal profile for each PCB layout. Use profiling tools to measure and adjust.

5. Manage Moisture-Sensitive Components
   Handle MSL-rated parts carefully. Store and bake them as needed to prevent defects like popcorning.

6. Control Cleanliness and Handling
   Keep work surfaces clean. Schedule regular stencil cleaning to avoid defects.

7. Use In-Line Inspection and Feedback Loops
   Add AOI and X-ray inspection to catch problems early. Use feedback to improve your process.

💡 Tip: Reflow soldering works best when your board has more than 80% SMT components and needs high placement density.

Best for THT or Mixed Lines

Wave soldering fits best when your boards use mostly through-hole parts or a mix of THT and SMT. This method gives you strong joints for large connectors and power devices. You can process many boards quickly, making it a good choice for high-volume runs. Here are some best practices and key points:

• Preheat the PCB to 100-120°C. This step reduces thermal shock and helps solder flow better.

• Apply a no-clean or water-soluble flux. Good flux improves wetting and prevents oxidation.

• Use heat-resistant tape or conformal coating. Protect your SMT parts from the solder wave.

• Wave soldering can handle hundreds of boards per hour. You get reliable joints for large components.

• This method uses proven technology. You can follow established best practices for consistent results.

• For mixed technology boards, you need a two-step process. This can increase production time and cost.

• Masking adds complexity and cost. You must protect sensitive parts from the solder wave.

⚠️ Note: Wave soldering may cause thermal shock or bridging if you do not control the process. Always check your masking and preheat steps.

Choosing the Right Method

You should match your soldering method to your board’s needs, component types, and production goals. Use the table below to compare the main factors:

When you decide, consider these questions:

• What types of components do you use most—SMT or THT?

• How complex is your PCB design?

• What is your expected production volume?

📌 Summary: Reflow soldering leads in popularity for modern, dense SMT lines. Wave soldering remains a strong choice for THT and mixed boards. Always weigh your component mix, board complexity, and budget before you choose.

You can match reflow soldering to SMT lines with high-density boards and sensitive components, while wave soldering suits THT or mixed designs. Your choice depends on component types, production volume, and budget. Consider assembly planning, test points, and quality standards like IPC-A-610 and IPC J-STD-001. If you face challenges such as misalignment or thermal shock, expert consulting services like Ray Prasad Consultancy Group or ITM Consulting can help you solve complex SMT line issues.

FAQ

What is the main difference between reflow soldering and wave soldering?

Reflow soldering uses controlled heat in an oven to melt solder paste for surface-mount components. Wave soldering passes the board over a wave of molten solder, making it better for through-hole parts.

Can you use both methods on the same PCB?

Yes, you can. Many manufacturers first use reflow soldering for SMT parts. Afterward, they use wave soldering for through-hole components. This approach works well for mixed-technology boards.

Which method is faster for high-volume production?

Wave soldering usually processes boards faster in high-volume runs, especially with through-hole components. Reflow soldering matches this speed for SMT-heavy lines but may require more setup time.

How do you reduce defects in each process?

• For reflow soldering:

  • Use the correct temperature profile.

  • Select high-quality solder paste.

• For wave soldering:

  • Apply enough flux.

  • Clean boards before soldering.

Careful process control helps you avoid common defects.
