Importance and Optimization of Reflow Oven Cooling Systems

You rely on precise cooling systems in reflow soldering to achieve strong solder joints and dependable PCBs. The cooling rate shapes grain structure and intermetallic layer thickness, directly influencing joint strength. If you cool too slowly, you risk weak, coarse microstructures; rapid cooling can trigger internal cracks and delamination from thermal stress. By using a controlled, moderate cooling rate, you minimize cracks, warpage, and other defects, ensuring mechanical strength and long-term reliability.

Key Takeaways

• Control the cooling rate between 1.5°C and 10°C per second to ensure strong, reliable solder joints and avoid defects like cracks or warping.

• Gradual cooling reduces thermal stress and prevents solder joint failures, while rapid cooling can cause internal cracks and thermal shock.

• Regularly calibrate your reflow oven’s cooling system, conveyor speed, and airflow to maintain consistent temperature control and prevent defects.

• Use thermal profiling and real-time monitoring to track temperature changes and adjust cooling parameters for uniform and defect-free soldering.

• Forced air cooling offers precise control and consistency for high-volume production, while natural cooling suits small batches but risks uneven cooling.

• Hybrid cooling methods, such as microwave hybrid heating, enhance joint strength and reliability for advanced or high-reliability applications.

• Maintain your cooling system through daily inspections, regular cleaning, and monthly calibrations to extend equipment life and prevent costly downtime.

• Optimize PCB design by placing heat-generating components near airflow paths and using thermal vias and heat sinks to improve cooling efficiency.

Cooling System Importance

Solder Joint Quality

You must treat cooling as just as important as heating in reflow soldering. The cooling phase determines how solder joints form and solidify. If you control the cooling rate, you help solder joints harden properly and become durable. Rapid cooling can cause cracks or weak spots in the joints. These weak spots often lead to failures during operation. Gradual cooling, especially when it mirrors the heating pattern in reverse, reduces thermal stress and helps create strong, shiny solder joints. Research shows that cooling rates, along with temperature ramp and dwell times, directly influence solder joint integrity. When you manage these parameters, you ensure reliable connections and prevent dry or brittle joints.

PCB Reliability

You want every printed circuit board (PCB) to last through its intended lifespan. The cooling system in your reflow oven plays a major role in this goal. If you cool the board too quickly, you risk warping the PCB or causing components to crack. Gradual cooling relieves stress in both the solder and the board material. This process helps prevent residual stresses that can lead to failure points later. Studies using finite element analysis confirm that solidification temperature and cooling conditions affect where and how failures occur in solder joints. By controlling the cooling profile, you protect the PCB from damage and improve its overall reliability.

Defect Prevention

A well-optimized cooling system helps you avoid many common defects in reflow soldering. You can prevent these issues by maintaining a controlled, gradual cooling rate:

• Voids often form when flux gases get trapped or when the solder shrinks unevenly during cooling. Lead-free solder, for example, shrinks about 4% as it solidifies. Controlled cooling allows flux to outgas properly and reduces void formation.

• Cold solder joints happen when solder does not melt or cools too quickly. These joints create unreliable connections. By avoiding rapid cooling, you give the solder enough time to flow and form a solid bond.

• Tombstoning defects occur when components lift on one end due to uneven wetting or heating. Controlled cooling reduces thermal stress and helps prevent this issue.

Tip: Always monitor your cooling profile to catch and correct these defects early. Consistent cooling not only improves yield but also reduces costly rework.

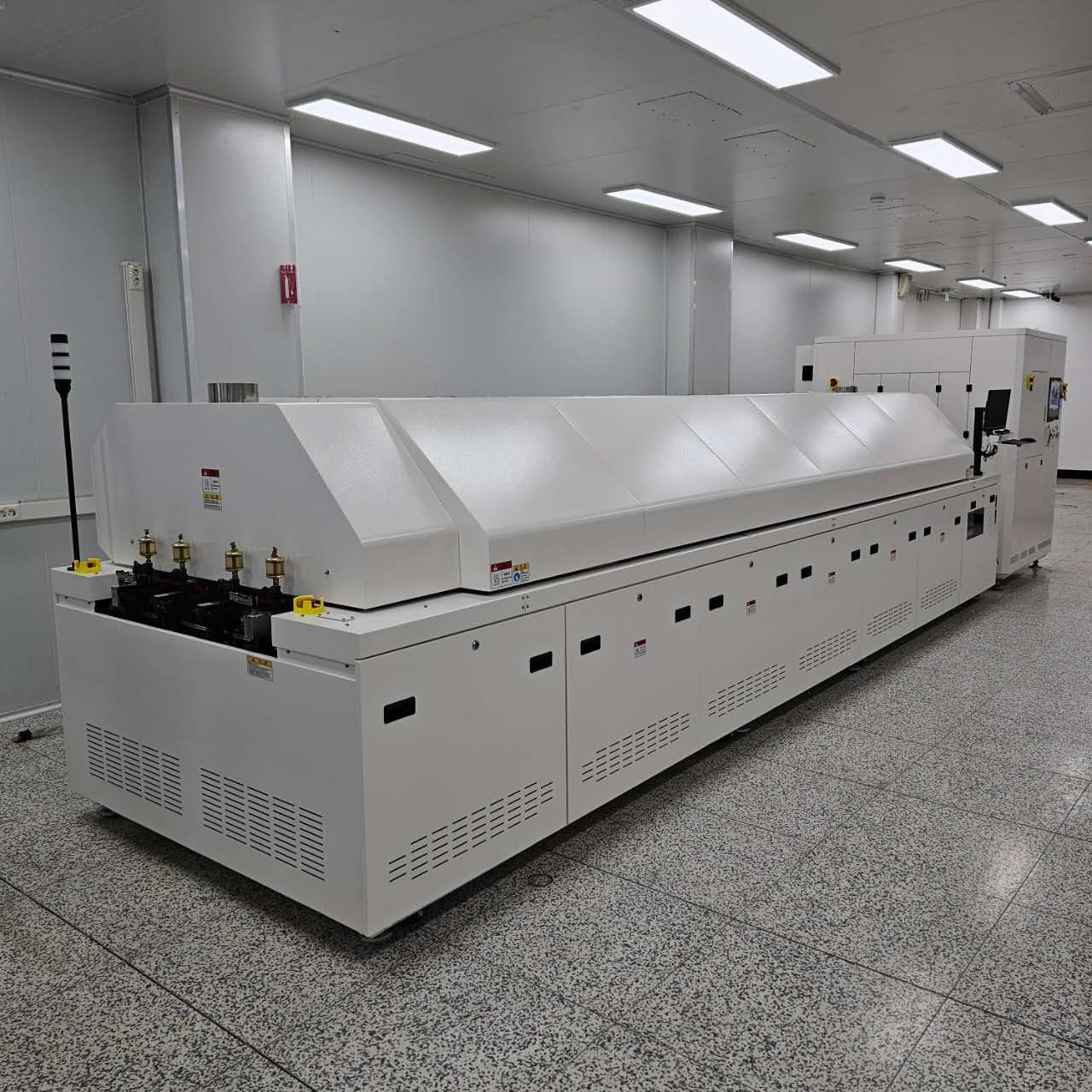

Cooling Zone Role

Controlled Cooling

You rely on the cooling zone in your reflow oven to solidify solder joints and protect your PCB assemblies. This zone gradually lowers the temperature of the board, usually from around 110°C down to room temperature. You must control this process carefully. If you cool too quickly, you risk thermal shock and brittle joints. If you cool too slowly, you allow excessive grain growth, which weakens the solder. Industry standards recommend a cooling rate of about 4°C per second. This rate strikes a balance between mechanical strength and component safety.

Controlled cooling also shapes the microstructure of your solder joints. By managing the cooling rate, you influence how the solder solidifies. You can promote the formation of fine, interlaced microstructures that improve shear strength and resistance to fatigue. When you suppress unwanted nucleation events, you create more reliable joints. This attention to detail in the cooling zone helps you achieve consistent, high-quality results in reflow soldering.

Note: Always monitor your cooling zone temperatures. Typical ranges fall between 30°C and 110°C. Staying within these limits helps you avoid oxidation and ensures proper solidification.

Gradual vs. Rapid Cooling

You face a critical choice between gradual and rapid cooling. Each approach affects your solder joints differently:

• Gradual Cooling: This method reduces thermal stress on components. It allows the solder to solidify evenly, preventing warping and cracks. Gradual cooling is especially important for sensitive parts like BGAs and capacitors.

• Rapid Cooling: A faster rate can produce a fine-grain structure, which increases mechanical strength. However, if you cool too quickly, you risk thermal shock and internal cracks.

You must find the right balance. For most assemblies, a cooling rate between 3°C and 10°C per second works best. This range prevents excessive grain growth while protecting your components from damage.

Cooling Rate	Effect on Solder Joint	Risk Level
Too Slow (<3°C/s)	Coarse grains, weak joints	High (reliability)
Optimal (3-10°C/s)	Fine grains, strong joints	Low
Too Fast (>10°C/s)	Cracks, thermal shock	High (damage)

Thermal Shock Prevention

You must prevent thermal shock to maintain PCB reliability. Thermal shock occurs when you expose components to sudden temperature changes. This stress can cause cracks, warping, or even internal damage, especially in sensitive devices. By controlling the cooling rate in your reflow oven, you reduce the risk of these failures.

Thermal profiling helps you manage this process. You adjust oven temperature, conveyor speed, and zone settings to ensure gradual temperature changes. This approach protects your components and keeps your solder joints defect-free. Remember, improper cooling zone management can lead to brittle joints or cracked connections. You safeguard your assemblies by prioritizing gradual, controlled cooling.

Tip: Use real-time monitoring tools to track your cooling profile. Early detection of rapid temperature drops helps you prevent costly defects and maintain high production yields.

Reflow Soldering Cooling

Recommended Cooling Rate

You need to pay close attention to the cooling rate during reflow soldering. The industry recommends a cooling rate between 1.5°C/second and 4°C/second for most lead-free solder alloys, including SAC305. This range helps you achieve a fine-grain structure in the solder joint, which increases reliability and mechanical strength. If you cool faster than 4°C/second, you risk introducing stress and cracks into the joint. Cooling slower than 1.5°C/second can cause coarse grains and weak connections. Many manufacturers suggest a cooling slope about twice as steep as the preheat slope. This approach prevents PCB warping and reduces the chance of solder joint defects. For example, a typical reflow profile might show a cooling ramp rate of 1.4°C/second, which falls within the acceptable range. By following these guidelines, you ensure your solder joints remain strong and your assemblies last longer.

Airflow Methods

You have several options for managing airflow in the cooling zone. Most modern reflow ovens use forced air cooling. This method uses fans or blowers to move cool air across the PCB surface. Forced air cooling provides a consistent and controlled temperature drop, which helps you avoid thermal shock and uneven cooling. Some ovens allow you to adjust the airflow speed and direction. This flexibility lets you fine-tune the cooling process for different board designs and component densities. In some cases, you might use a combination of natural convection and forced air. Natural convection relies on the movement of air without fans, which works for less demanding applications. Forced air, however, remains the standard for high-volume production because it delivers uniform results and supports precise temperature control.

Tip: Adjust airflow settings based on your PCB layout and component sensitivity. High airflow can cool boards quickly but may increase the risk of thermal shock for delicate parts.

Temperature Control

You must maintain precise temperature control in the cooling zone to ensure reliable solder joints. The cooling zone represents the final stage where solder solidifies and defects are prevented. You want the temperature to drop gradually from the solder melting point to below 100°C, often reaching about 75°C or less. Modern reflow ovens use automated temperature monitoring systems. These systems rely on thermocouples and sensors placed at multiple points along the conveyor. Real-time data feeds into feedback loops and advanced algorithms, which adjust cooling rates and airflow as needed. Segmented temperature zones and controlled air circulation help you achieve uniform cooling across the entire PCB. Proper temperature control prevents thermal shock, supports the formation of strong intermetallic compounds, and reduces the risk of solder joint cracking. By using these technologies, you maintain high product quality and reduce the chance of costly rework.

• Key features of modern temperature control:

  • Automated feedback systems

  • Real-time monitoring with thermocouples

  • Segmented cooling zones

  • Adjustable airflow and temperature profiles

Note: Regularly check your oven’s temperature profile with profiling tools. Consistent monitoring helps you catch deviations early and maintain process stability.

Cooling Optimization

Equipment Calibration

You must calibrate your reflow oven equipment regularly to maintain optimal cooling performance and minimize defect rates. Calibration ensures every system component operates within precise specifications. When you neglect calibration, you risk uneven cooling, thermal shock, and solder joint fractures. You should focus on the cooling system, conveyor speed, heater functionality, and airflow consistency. Each aspect plays a critical role in the cooling phase of reflow soldering.

Aspect	Impact on Cooling Performance and Defect Rates	Consequences and Defects	Prevention and Calibration Importance
Cooling System	Controls cooling rate after soldering; failure causes rapid or uneven cooling	Thermal shock, cracks, delamination, solder joint fractures	Keep the cooling system clean and functional, regular maintenance, and real-time temperature monitoring to detect anomalies
Conveyor Calibration	Ensures correct PCB speed through temperature zones; drift causes improper heating duration	Poor solder reflow, thermal shock, solder bridging, and cracked components	Regular conveyor calibration, real-time speed tracking to prevent deviations
Heater Functionality	Provides uniform heat; failure causes uneven temperature distribution	Incomplete soldering, burnt components	Routine heater checks, use of measurement fixtures for even heat, and real-time monitoring for temperature fluctuations
Airflow Consistency	Ensures uniform heat distribution via even airflow	Solder balling, non-wet opens, excessive fillets	Clean filters and ducts regularly, measure heat transfer rates, and use real-time airflow monitoring
Mechanical Components	Wear of conveyor chains/gears causes inconsistent PCB transport and uneven heat exposure	Soldering defects, PCB misalignment, component shifting/dropping	Routine mechanical inspections and replacement, real-time vibration monitoring to detect excessive movement

Tip: Schedule calibration checks monthly. Use automated monitoring systems to catch deviations early and prevent costly defects.

Thermal Profiling

You need to use thermal profiling to optimize the cooling phase in reflow soldering. Thermal profiling maps temperature variations across the oven and PCB, helping you maintain precise heating and cooling cycles. This process prevents overheating and underheating, which can cause mechanical stress or fractures in solder joints. By monitoring temperature changes in real time, you can adjust cooling rates and airflow to achieve uniform cooling.

Thermal profiling ensures a controlled and gradual temperature decrease, which is critical for the proper solidification of solder joints. You should target cooling rates between 3°C and 10°C per second, with final temperatures below 75°C. When you maintain this range, you prevent dull, rough, or weak solder joints that result from slow cooling. You also avoid defects like cracks and warpage caused by rapid cooling. Use thermal profiling tools to monitor temperature at multiple points and adjust oven settings as needed. This approach improves solder joint integrity and enhances overall PCB reliability.

Note: Simulation-based optimization and Design of Experiments (DOE) help you refine cooling parameters. You can model different cooling profiles and test their impact on defect rates before applying changes to production.

Real-Time Monitoring

You must implement real-time monitoring to achieve consistent cooling optimization. Real-time monitoring systems collect data on thermal parameters continuously, giving you immediate feedback on process stability. You can detect process drifts or failures within seconds and take corrective action before defects occur.

1. Real-time monitoring enables continuous and automated data collection, improving accuracy and availability for analysis.

2. You can detect process deviations immediately, allowing you to intervene before defective PCBs are produced.

3. Continuous monitoring provides visibility into temperature profiles throughout the entire thermal process, acting like a “video camera” for your oven.

4. Early identification of subtle changes helps you prevent defects and supports zero-defect production goals.

5. Real-time statistical process control (SPC) simplifies trend analysis and highlights variations not visible to standard oven controls.

Callout: Use real-time monitoring tools with integrated alarms. These systems alert you to temperature drops or airflow changes, helping you maintain optimal cooling and reduce rework.

You should combine calibration, thermal profiling, and real-time monitoring to optimize cooling in reflow soldering. This strategy reduces defects, improves reliability, and supports high-yield manufacturing.

Cooling Strategies

Natural Cooling

You can use natural cooling in reflow soldering when you work with small batches or prototypes. This method relies on the surrounding air to cool your printed circuit boards after soldering. Natural cooling offers a simple and cost-effective approach. You do not need extra equipment or energy, which keeps your process affordable and easy to manage.

However, you must pay close attention to how you use natural cooling. If you place hot boards on cold surfaces or expose them to drafts, you risk sudden temperature drops. These rapid changes can cause thermal shock, leading to cracks or warping in your solder joints and components. Natural cooling does not allow you to control the cooling rate precisely. This lack of control can result in inconsistent solder joint quality, especially for lead-free alloys that require a specific cooling rate for optimal performance.

Tip: Always let boards cool in a stable, draft-free environment. Avoid placing them on metal tables or near open windows to prevent sudden cooling.

Forced Air

Forced air cooling stands as the mainstream technology in modern reflow ovens. You use fans or blowers to move cool air across the PCB surface, which helps you maintain a controlled cooling rate, typically between 2°C and 4°C per second for lead-free solder. This level of control is essential for preventing thermal stress and component damage. Forced air cooling allows you to adjust fan speed and airflow direction, so you can fine-tune the process for different board sizes and component layouts.

You benefit from forced air cooling because it provides better regulation of the cooling profile compared to natural cooling. This method supports high-volume production and ensures consistent results. Forced air systems often include features like flux recovery mechanisms, which help manage condensation and flux residues. These features improve cooling efficiency and solder joint quality.

While forced air cooling increases the cooling rate immediately after soldering, it does not change the way solder joints solidify. Most solidification happens within the first three seconds after the board leaves the soldering zone. Forced air cooling helps you avoid defects caused by thermal stress, but it cannot prevent issues like dull or matte solder joints, which result from other factors such as solder shrinkage or movement during the pasty phase.

Cooling Method	Control Level	Cost	Best Use Case	Risk Factors
Natural Cooling	Low	Low	Prototypes, small batches	Thermal shock, inconsistency
Forced Air	High	Moderate	High-volume, precise control	Overcooling, equipment needs

Liquid Cooling

You may consider liquid cooling for specialized applications that demand rapid and uniform temperature reduction. This method uses chilled water or coolant circulated through heat exchangers or cooling plates. Liquid cooling offers superior heat transfer compared to air-based methods. You achieve faster cooling rates and tighter temperature control, which can be critical for boards with high thermal mass or sensitive components.

Liquid cooling systems require more complex equipment and regular maintenance. You must monitor for leaks and ensure proper coolant flow. This method suits environments where you need to minimize thermal gradients and maximize process repeatability. While not common in standard electronics manufacturing, liquid cooling finds use in advanced or high-reliability sectors, such as aerospace or military electronics.

Note: Choose liquid cooling only if your process demands extreme precision and you have the resources to maintain the system.

Hybrid Methods

You may find that hybrid cooling methods offer unique advantages in reflow soldering, especially when you need to balance speed, precision, and reliability. Hybrid methods combine two or more cooling techniques to optimize the cooling profile for your printed circuit boards. By using these strategies, you can address the limitations of single-method cooling and achieve better control over the soldering process.

One of the most promising hybrid approaches is Microwave Hybrid Heating (MHH). This method uses both microwave energy and traditional convection heating to achieve selective and uniform heating during reflow. You benefit from MHH because it targets specific areas of the PCB, allowing for precise temperature control. Experimental studies show that MHH provides improved mechanical strength and enhanced corrosion resistance in solder joints. These qualities make it an excellent choice for applications where you require highly reliable connections.

When you use MHH with advanced solder pastes, such as Sn-3.0Ag-0.5Cu nano-solder, you see even greater improvements. Research demonstrates that this combination leads to better intermetallic bonding and a smaller heat-affected zone compared to conventional methods. The shear strength of joints produced by MHH can reach up to 44.8 MPa under optimal conditions. After 1200 thermal shock cycles, the joints retain much of their strength, decreasing by only 24.4%. This durability means your assemblies can withstand repeated temperature changes without failing.

MHH also uses special materials called susceptors, like graphite powder, to focus the microwave energy. Numerical simulations and experiments confirm that graphite powder offers stable and efficient heating. As a result, you achieve superior mechanical strength and corrosion resistance in your solder joints. These benefits support MHH as a viable hybrid method for improving joint quality and reliability.

You can also explore other hybrid cooling strategies, such as combining forced air with liquid cooling. This approach lets you quickly remove heat from high-mass components while maintaining gentle cooling for sensitive parts. By adjusting airflow and coolant flow rates, you tailor the cooling process to your specific board design.

Tip: When you consider hybrid methods, always evaluate your production needs and the reliability requirements of your assemblies. Hybrid strategies often require more complex equipment and careful calibration, but they deliver significant gains in joint strength and long-term performance.

Hybrid cooling methods give you the flexibility to meet demanding manufacturing standards. By integrating advanced techniques like MHH, you ensure your solder joints remain strong, reliable, and resistant to harsh operating conditions.

Troubleshooting

Cooling Defects

You may encounter several cooling-related defects during reflow soldering. These issues can compromise both the mechanical strength and reliability of your assemblies. Watch for the following common problems:

• Rapid cooling rates can cause component cracking due to stress concentration.

• Improper cooling rates often lead to solder joint cracks by forming brittle intermetallic compounds.

• Insufficient cooling rates result in thick, uneven intermetallic layers.

• Cooling too fast induces mechanical stresses in components.

• Solder joint cracks destroy the connection between the component and the pad, which affects circuit reliability.

• Causes of solder joint cracks include improper cooling rates, contamination, and mechanical damage.

To prevent these defects, always use appropriate cooling rates. This practice ensures smooth and moderate intermetallic compound formation. You should also reduce mechanical vibration during the soldering process to protect your joints.

Tip: If you notice cracks or dull solder joints, review your cooling profile and check for any sudden temperature changes during the cooling phase.

Uneven Cooling

Uneven cooling can lead to inconsistent solder joint quality and increase the risk of defects. You can detect uneven cooling by performing thermal analysis with thermocouples or specialized analysis boards attached to your PCB. These sensors measure temperature at multiple points, giving you a clear picture of temperature distribution during the reflow process.

To address uneven cooling, follow these steps:

1. Generate thermal profiles using thermocouples placed on the PCB to measure temperature variations across different zones.

2. Analyze the collected temperature data to identify any uneven cooling or temperature deviations.

3. Adjust parameters such as zone power, conveyor speed, and temperature offsets to correct the profile.

4. Use advanced ovens with closed-loop control systems for real-time adjustments based on sensor feedback.

5. Consider hardware upgrades like multi-zone convection ovens or directed forced air convection to improve uniformity.

6. Regularly calibrate and maintain sensors and oven components to ensure stable temperature profiles.

Note: Consistent thermal profiling and regular calibration help you maintain uniform cooling and prevent hidden defects.

Maintenance Tips

You need to maintain your cooling system regularly to ensure optimal performance and long-term reliability. Follow these best practices:

1. Inspect the cooling fan daily and check that air ducts remain free from obstructions to maintain proper airflow.

2. Clean the furnace chamber every day to remove flux, solder dross, and debris.

3. Perform weekly cleaning of heating elements and inspect sensors for accurate temperature control.

4. Lubricate moving parts weekly to keep the cooling system running smoothly.

5. Conduct monthly deep cleaning of the furnace chamber and air ducts using specialized cleaning agents.

6. Calibrate the temperature control system monthly to ensure the oven maintains the correct thermal profile.

Callout: Regular maintenance not only extends equipment life but also helps you avoid unexpected downtime and costly repairs.

By following these troubleshooting steps, you can quickly identify and resolve cooling issues, ensuring high-quality, reliable solder joints in every production run.

Reliability Improvement

Implementation Steps

You can enhance PCB reliability by following a structured approach to cooling system improvements. Start with these key steps:

1. Use cross-hatched copper connections to boost heat removal efficiency across the board.

2. Optimize component layout by placing heat-generating parts near airflow paths, thermal vias, or heat sinks.

3. Separate power components from sensitive analog circuits to reduce thermal interference.

4. Apply thermal barriers or insulation to shield delicate components from excessive heat.

5. Employ active cooling methods such as forced air, liquid cooling, or thermoelectric coolers for high-power designs.

6. Design PCB traces with proper width and spacing to minimize resistance and heat buildup.

7. Increase thermal mass using heat spreaders, enlarged ground planes, or embedded heat pipes.

8. Perform accurate thermal simulations before production to predict hot spots and optimize cooling.

Tip: Early thermal simulation helps you avoid costly redesigns and ensures your cooling strategy matches real-world conditions.

Best Practices

You should adopt best practices that support consistent reliability in your cooling systems. Begin by selecting high-thermal-conductivity materials for your PCB, such as metal-core substrates, when you expect high heat loads. Place high-power components near board edges or heat sinks to improve heat dissipation. Use copper-filled thermal vias under hot components to transfer heat efficiently between layers. Attach heat sinks and thermal pads to critical parts for better heat transfer.

Regularly test your prototypes under worst-case thermal conditions. This practice helps you verify that all components stay within safe temperature limits. Standardize thermal features like via sizes, copper thickness, and mounting holes across production batches. This consistency ensures uniform performance and simplifies quality control.

Step	Description	Effectiveness / Notes
Thermal Simulation Early in Design	Predict heat distribution and hot spots before prototyping	Prevents redesigns, improves accuracy within 5-10%
Optimize Component Placement	Place high-power parts near edges or heat sinks	Reduces temperature by 10-15°C, extends component life
Use Thermal Vias	Transfer heat between layers or to heat sinks	Reduces temperature by up to 20°C, ensures uniformity
Select High-Thermal-Conductivity Materials	Use metal-core PCBs for high-heat areas	Improves dissipation, increases cost by 20-30%
Incorporate Heat Sinks and Pads	Attach to components for enhanced heat transfer	Reduces temperature by 15-25°C, aids mass production

Continuous Improvement

You need to monitor and refine your cooling system to maintain high reliability over time. Track key metrics such as heat transfer rate, coolant flow rate, and temperature differences between inlet and outlet. Use environmental and durability testing to assess long-term performance. Computational fluid dynamics (CFD) simulations help you model airflow and heat transfer for ongoing optimization.

Metric	Description
Heat Transfer Rate (Q)	Measures how much heat your system removes from the PCB
Coolant Mass Flow Rate	Tracks the amount of coolant moving through your system
Temperature Difference (ΔT)	Shows the effectiveness of your cooling by comparing the inlet and outlet temperatures
RHI Index	Evaluates airflow management and thermal performance; values between 0 and 0.8 indicate success

Note: Regularly review your cooling data and adjust your process as needed. Continuous improvement ensures your assemblies remain reliable and defect-free as technology and requirements evolve.

You play a key role in ensuring reliable, defect-free PCB assemblies by optimizing your reflow oven’s cooling system. Gradual, controlled cooling and regular calibration help you prevent defects and maintain high product quality. For best results, you should:

• Monitor thermal profiles across all heating zones.

• Use fuzzy inference systems and neuro-fuzzy modeling for adaptive control.

• Apply genetic algorithm-based models to predict and refine temperature curves.

Stay proactive by evaluating and updating your cooling strategies as technology advances.

FAQ

What is the ideal cooling rate for reflow soldering?

You should target a cooling rate between 1.5°C/second and 4°C/second for most lead-free solders. This range helps you achieve strong, reliable solder joints and prevents thermal shock or grain coarsening.

How does improper cooling affect solder joints?

Improper cooling can cause cracks, voids, or weak joints. Rapid cooling may lead to thermal shock, while slow cooling can create coarse grains. Both issues reduce the reliability of your PCB assemblies.

Can you adjust the cooling rate in all reflow ovens?

Most modern reflow ovens let you adjust cooling rates by changing airflow speed, temperature settings, or conveyor speed. Always check your oven’s manual for specific adjustment options.

Why is thermal profiling important for cooling?

Thermal profiling helps you monitor temperature changes across your PCB. You can use this data to optimize cooling rates, prevent defects, and ensure consistent solder joint quality.

What maintenance does a reflow oven cooling system need?

You should clean fans, ducts, and sensors regularly. Calibrate temperature controls monthly. Inspect for blockages or wear. Routine maintenance keeps your cooling system efficient and prevents unexpected failures.

Are hybrid cooling methods suitable for all PCB types?

Hybrid cooling methods work best for complex or high-reliability assemblies. For standard PCBs, forced air or natural cooling usually meets your needs. Evaluate your board’s requirements before choosing a method.

How do you detect uneven cooling during reflow?

You can use thermocouples or thermal analysis boards to measure temperature at different PCB points. This approach helps you spot uneven cooling and adjust your process for better uniformity.

Does cooling impact lead-free and leaded solder differently?

Yes. Lead-free solder requires tighter cooling control because it solidifies at higher temperatures and is more prone to defects. You must follow recommended cooling rates for each solder type to ensure quality.
