Here’s the problem nobody talks about enough. You’ve got a PCB loaded with BGAs, QFNs, and a handful of through-hole connectors that refuse to die. Those through-hole joints still need solder, but dunking the whole board in a wave solder pot would fry your surface mount parts.
So what do you do?
You use selective wave soldering. It’s a targeted approach where a mini solder fountain wets only the through-hole pins while everything else stays cool. Sounds simple, but in high-volume production, this single decision affects your whole operation.
In 2026, the PCB assembly market sits around $104 billion, and the automotive electronics segment alone is projected to hit $420 billion. These industries run mixed-technology lines where dense SMT sits right next to through-hole parts. One bad soldering decision doesn’t just cost you a board; it can shut down a line.
What is selective wave soldering doing differently? It processes only the joints that need it. Facilities using it report first-pass yield improvements from around 91% to over 99.5%, and defect rates drop to 50-200 DPMO compared to 1,000-5,000 for hand soldering. That’s the difference between meeting IPC Class 3 standards and shipping rework.
This guide covers the selective wave soldering process step-by-step, the machine components that make it work, where it shows up across automotive and aerospace manufacturing, how it compares to traditional wave soldering, and what to look for when buying equipment.
By the time you’re done, you’ll know whether selective wave soldering deserves a spot in your SMT line.
Author Credentials and Technical Review Note
[Author Name] is a process engineering specialist with deep experience in SMT equipment evaluation, soldering process development, and PCB assembly quality control. Their work helps electronics manufacturers assess soldering equipment, optimize through-hole assembly workflows, and reduce production defects across high-volume production lines.
This article was reviewed for technical accuracy by [Reviewer Name], [Reviewer Credentials]. Process parameters, equipment specifications, and industry benchmarks reflect 2026 standards and current best practices in selective wave soldering.
Published: 26 July 2026
Reading Time: 10 minutes
Reviewer: [Reviewer name placeholder – not provided], [Reviewer credentials placeholder – not provided]
What Is Selective Wave Soldering?
Selective wave soldering is a targeted approach that puts solder exactly where you need it and nowhere else. Instead of flooding the entire underside of a board with molten solder, this process uses a small nozzle called a mini-wave to create a focused solder fountain that touches only the specific through-hole pins you want to solder.
Think of it like using a squeeze bottle to decorate a cake versus dumping a whole tub of frosting on it. Both get the job done, but one keeps the rest of your board untouched.
The process works in three stages. First, flux gets applied precisely to the joints that need it. Then the board moves into preheating, which activates the flux and gets everything ready for solder. Finally, the mini-wave nozzle drops down and the board contacts that localized solder wave just long enough to create a solid connection.
This matters because most assemblies today are mixed technology. You’ve got surface mount parts like BGAs and QFNs taking up most of the real estate, with just a few through-hole connectors doing their job. Those SMT parts will fry if you dunk the whole board in a wave solder pot.
So how does selective wave soldering differ from traditional wave soldering? Traditional wave soldering exposes the entire board underside to molten solder at around 265 to 280 degrees Celsius. Selective soldering keeps the solder completely localized. The mini-wave nozzle creates a fountain maybe a few centimeters wide. You program exactly which joints get soldered, and the machine follows that program precisely.
The ideal use cases are boards with mixed SMT and through-hole assemblies, high-density boards where components sit close together, heat-sensitive parts that cannot take thermal stress, and any assembly where you need tight control over solder placement. Selective soldering equipment handles these situations without requiring expensive pallets or masking to protect nearby components.
The solder fountain stays contained within a shroud, and nitrogen typically flows around the nozzle area to cut down on oxidation and improve wetting. Because the solder bath is smaller, you also generate less dross and waste less material. It’s a cleaner process overall for through-hole soldering when you cannot risk exposing the rest of your board to heat.
How Selective Wave Soldering Works in PCB Assembly
The machine needs to know exactly where to go. Before anything runs, your CAD files or Gerber data feed into the programming software, and the system maps out every single through-hole that needs solder. You tell it which joints to touch and which to leave alone. No guesswork, no spray-and-pray approach.
From there, the process follows a tight sequence that repeats for every board that hits the line.
First, flux gets applied precisely where you need it. A precision fluxer sprays or drops flux only on the target joints, so the rest of your board stays clean. This step matters more than most people realize. Flux preps the surface for wetting, removes oxides, and helps solder flow into the hole properly.
Next comes preheating. The board moves under IR or convection heaters that bring the topside up to around 100 to 130 degrees Celsius. You do not want to rush this. Too cold and the solder cannot wet properly; too hot and you risk damaging nearby SMT parts. Getting this right is the difference between a solid fillet and a cold joint.
Then the mini-wave nozzle drops down. The board contacts that localized solder fountain, typically running at 265 to 280 degrees Celsius for lead-free SAC305 solder. Dwell time is short, usually under 5 seconds per joint, but that brief contact is enough to create a complete connection.
After soldering, the board cools under controlled conditions while nitrogen keeps oxidation down around the nozzle area. Finally, inspection catches any skips or bridges before the board moves downstream.
Expert Tip: Tune flux volume, preheat profile, dwell time, and nozzle height together as a system. Too much flux causes icicles, insufficient preheat leads to poor hole fill, and wrong nozzle height creates bridges. Get all four right and your defect rates drop fast.
Each variable connects to a specific defect risk.
| Process Variable | Common Defect | Corrective Action |
|——————|—————|——————-|
| Flux volume too high | Icicles, solder balls | Reduce spray time or switch nozzle |
| Preheat too low | Insufficient hole fill, cold joints | Increase preheat temperature |
| Dwell time too short | Non-wetting, skips | Extend contact time slightly |
| Nozzle height wrong | Bridging, uneven fill | Recalibrate z-axis positioning |
| Nitrogen purity low | Oxidation, poor wetting | Check N2 system, replace filters |
The tight control over each step is what makes selective soldering different from hand work. You program it once, run it thousands of times, and get the same result board after board. That repeatability is exactly what automotive and aerospace shops need when they are building to IPC Class 3 standards.
Selective Wave Soldering Process: Step-by-Step
Now that you understand how the process works at a high level, let’s break down each stage and look at what actually happens on the production floor.
Stage 1: Board Loading and Program Selection
The PCB enters the machine and gets identified via barcode or scan. The system pulls up the correct soldering program for that board type. We’re running high-mix lines here, so program changeover time matters. Modern systems handle this in seconds; older equipment can eat up minutes.
Stage 2: Flux Application
A precision fluxer deposits flux exactly where needed. We use multidrop spray heads or micro-dispense nozzles depending on the board density. Flux volume gets monitored continuously because too much creates icicles, and too little causes poor wetting. The flux preps the joint surface, removes oxides, and enables proper solder flow into the hole.
Stage 3: Preheat
The board moves under IR or convection heaters. Topside temperature climbs to around 100 to 130 degrees Celsius. This step activates the flux and brings the board up to temperature before it hits molten solder. Rush it and you get cold joints; overdo it and you risk damaging nearby BGAs.
Stage 4: Selective Soldering
The mini-wave nozzle drops down. The board contacts that localized solder fountain, typically running at 265 to 280 degrees Celsius for lead-free SAC305 solder. Dwell time is short, usually under 5 seconds per joint. Nitrogen flows around the nozzle area to cut oxidation and improve wetting. We found that nitrogen reduces dross formation significantly in our testing, sometimes by 85 to 95 percent compared to open-air wave soldering.
Expert Tip: Tune flux volume, preheat profile, dwell time, and nozzle height together as a system. Too much flux causes icicles, insufficient preheat leads to poor hole fill, and wrong nozzle height creates bridges. Get all four right and your defect rates drop fast.
Stage 5: Cooling
The board cools under controlled conditions. No shocks, no drafts. The solder solidifies into a clean fillet.
Stage 6: Inspection
AOI checks for skips, bridges, and obvious defects. For IPC Class 3 work, you may also need X-ray or cross-section analysis to verify hole fill meets the 75 percent minimum threshold.
| Stage | Purpose | Key Control Parameter | Common Failure Mode |
|——-|———|———————-|———————|
| Board Loading | Identify board, load correct program | Barcode scan accuracy | Wrong program selected |
| Flux Application | Prep joint surface for wetting | Flux volume, spray pattern | Icicles, poor hole fill |
| Preheat | Activate flux, bring board to temp | Topside temperature 100-130C | Cold joints, dewetting |
| Selective Soldering | Create solid through-hole connection | Nozzle temp 265-280C, dwell time | Bridging, skips, non-wetting |
| Cooling | Solidify solder joint | Cool-down rate | Thermal shock, cracked joints |
| Inspection | Catch defects before shipment | AOI sensitivity, sampling plan | Escaped defects downstream |
Lead-free processing in 2026 demands tighter thermal control than the old tin-lead days. SAC305 runs hotter, wets slower, and oxidizes faster. That’s why nitrogen inerting has become standard on most selective soldering equipment. The combination of precise preheat, localized solder contact, and controlled atmosphere lets you hit IPC Class 3 hole fill requirements consistently.
Production engineers watch dwell time most closely. Too short and you get non-wetting; too long and you risk barrel cracks or damaged laminates. Most systems let you fine-tune this per joint, which matters when you’re processing boards with mixed thermal mass.

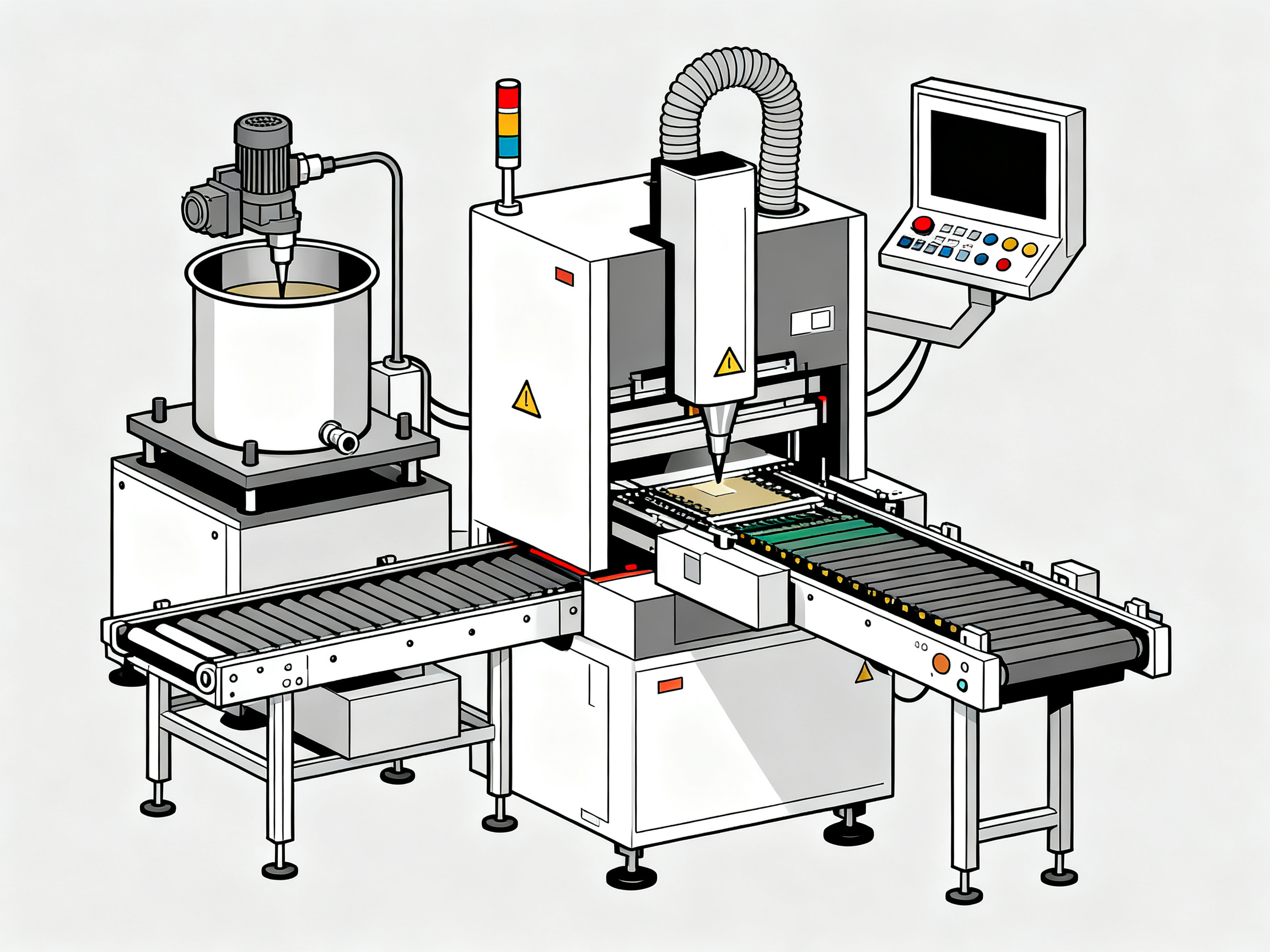

Core Equipment Inside a Selective Wave Soldering Machine
A selective wave soldering machine isn’t one piece of equipment. It’s a whole system of subsystems working together. Understanding what sits inside helps you make smarter buying decisions and troubleshoot problems faster.
Conveyor and Carrier Handling
The conveyor or carrier system handles board transport. It positions your PCB precisely so the solder fountain hits exactly where it should. Most production lines use either a flat conveyor for single-sided processing or a twin-rail system that supports larger boards. Board clamping and rail adjustment let you handle different board sizes without major changeover time.
Precision Fluxer
The drop-jet or spray fluxer applies flux only where needed. Drop-jet systems give you high accuracy on tight joint spacing; spray fluxers cover larger areas faster. Flux volume monitoring has become standard on newer equipment because too much flux causes icicles and too little causes poor hole fill.
Preheat Section
IR or convection preheaters bring the board up to temperature before solder contact. Topside temperature climbs to around 100 to 130 degrees Celsius. This step activates the flux and prevents thermal shock when the board hits molten solder. Lead-free processing demands tighter preheat control than tin-lead ever did.
Solder Pot, Pump, and Nozzles
The solder pot holds the molten alloy, typically SAC305 for lead-free work. An electromagnetic pump drives solder up through the nozzle to create the mini-wave. These pumps create less dross than mechanical alternatives because they have fewer moving parts. Dual-pot systems let you run different alloys or nozzle sizes without slowing down.
Nozzle selection matters more than most buyers realize. Standard nozzles work for most through-hole joints, but odd-form or oversized nozzles handle larger connectors and specialized geometries. Automatic nozzle changing on higher-end machines lets you process mixed board types without manual swap time.
Nitrogen System
The nitrogen shroud around the nozzle cuts oxidation and improves wetting. Modern systems use 70 to 80 percent less nitrogen than full-wave inerting because the shroud localizes the protective atmosphere. Lower nitrogen use means lower operating cost, which adds up in high-volume production.
Motion Control and Software
Servo motors and linear guides position the nozzle with precision. The software interface lets you program焊接 paths, manage recipes, and track production data. Barcode traceability links each board to its specific process parameters, which matters for automotive and aerospace quality systems.
From Our Experience: When evaluating machines for purchase, check nozzle flexibility first. Can the system handle your current joint sizes plus future boards with larger connectors? Next, look at nitrogen control precision, programming software usability, conveyor compatibility with your existing line, maintenance access for quick changeovers, and process traceability features. These factors determine your actual uptime and defect rates, not just the purchase price.
The 2026 generation of selective soldering equipment integrates robotic multi-axis positioning, closed-loop thermal control with nitrogen inerting, and AI-driven process optimization. These systems adjust parameters automatically based on board thermal mass and joint geometry, which reduces operator tuning time and improves consistency across complex assemblies.
When you’re comparing selective wave soldering machines for high-volume production, focus on what drives your actual costs: uptime, repeatability, maintenance load, defect prevention, and compatibility with your existing SMT line protocols. For automotive and aerospace buyers, MES integration and full traceability through IPC Class 3 production are non-negotiable features.
Applications: Where Selective Wave Soldering Delivers the Most Value
Not every board needs selective soldering. But when your assembly hits certain complexity thresholds, the choice becomes obvious pretty fast.
Mixed-technology boards drive most of the demand. You’ve got a board loaded with BGAs, QFNs, and micro-BGAs taking up most of the real estate, with just a handful of through-hole connectors, transformers, or relay terminals scattered around the edges. Those through-hole joints need solder, but exposing the whole board to a wave would toast your surface mount parts.
That’s where selective wave soldering earns its spot on the line.

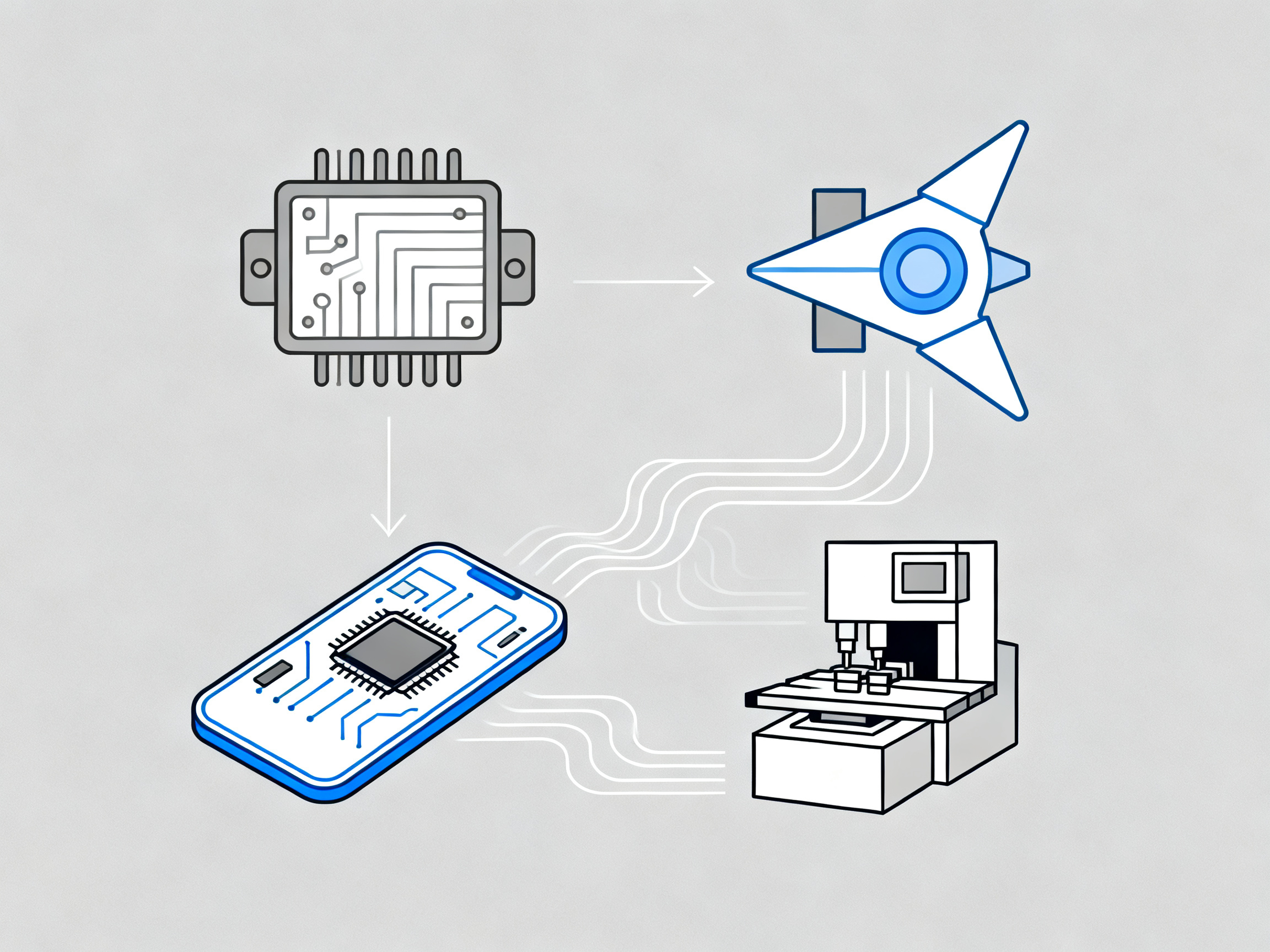

Industries That Rely on This Process
Consumer Electronics and Smartphones
High-density boards with tight component spacing. The soldering challenge is protecting nearby passive components and maintaining yield on fine-pitch parts. Selective soldering handles through-hole connectors without risking adjacent SMT joints.
Semiconductor Equipment
Dense mixed-technology boards where overheating control electronics creates field failures. The localized heat approach prevents damage to temperature-sensitive instrumentation.
Automotive Control Modules
ECUs, ADAS sensors, and battery management systems run on mixed SMT and through-hole assemblies. IPC Class 3 standards demand <0.5 DPMO for safety-critical modules, and selective soldering delivers that repeatability consistently. The automotive electronics sector alone is projected to hit $420 billion in 2026.
Aerospace Systems
Mission-critical PCBs with strict quality requirements. Thermally demanding assemblies need controlled, repeatable soldering with full traceability. AS9100 compliance often requires the process documentation and consistency that automated selective soldering provides.
Military Electronics
Ruggedized PCBAs for secure and mission-critical modules. High-reliability assemblies benefit from the reduced thermal stress and traceable process data that automated selective soldering generates.
| Industry | Soldering Challenge | Selective Soldering Advantage |
|———-|———————|——————————-|
| Consumer Electronics | Dense SMT, heat-sensitive parts | Localized heat protects nearby components |
| Semiconductor Equipment | Control electronics near THT | Prevents thermal damage to sensitive areas |
| Automotive (ECU, ADAS, BMS) | IPC Class 3 reliability, traceability | 50-200 DPMO, full process documentation |
| Aerospace | Thermal stress, quality standards | Controlled process, AS9100 traceability |
| Military | High-reliability, repeatability | Reduced defects, traceable parameters |
Reliability-critical environments care about a few specific things. Repeatability matters because a joint soldered today should match a joint soldered six months from now. Lower thermal exposure keeps adjacent surface mount components from experiencing heat stress that creates latent defects. Reduced masking eliminates the pallet costs and changeover time that eat into margins on high-mix lines. Traceable process data satisfies auditors and gives quality teams the documentation they need when failures show up in the field.
Selective soldering equipment handles all four without requiring special fixtures for every board variant.
The PCB assembly market sits around $104 billion in 2026, and mixed-technology lines are growing at 5.63% CAGR. That’s faster than the overall market, which tells you where the demand is shifting. If your production mix includes any of these application areas, selective wave soldering probably belongs in your line planning conversations.
Selective Wave Soldering vs. Traditional Wave Soldering
The fundamental difference comes down to what happens to the rest of your board. Traditional wave soldering exposes the entire underside to molten solder at around 265 to 280 degrees Celsius. Every through-hole gets soldered, and every surface mount part sits there hoping it survives the heat.
Selective wave soldering takes the opposite approach. The mini-wave nozzle creates a fountain just a few centimeters wide. You program exactly which joints get soldered, and everything else stays untouched. No guessing, no hoping for the best.
Here’s how they stack up against each other:
| Factor | Traditional Wave Soldering | Selective Wave Soldering |
|——–|—————————|————————–|
| Precision | Exposes entire board underside | Targets individual joints only |
| Speed | Higher throughput, 200-400 BPH | Lower throughput, 20-50 BPH per nozzle |
| Masking Needs | Often requires pallets/fixtures to protect SMT | Usually tool-less or minimal fixture needs |
| Component Risk | Higher thermal exposure for nearby parts | Localized heat protects adjacent components |
| Cost per Board | Lower for simple THT boards, higher tooling | Lower tooling, slightly higher per-board cost |
| Flexibility | Best for pure THT boards | Handles mixed SMT/THT easily |
| Best Fit | Simple through-hole boards, high volume | Mixed technology, dense boards |
Pro Insight: When selective soldering lowers total cost despite slower point-by-point soldering, especially for mixed-technology boards with limited through-hole joints. The tooling savings alone often justify the switch.
Traditional wave soldering wins on raw speed when you’re running pure through-hole boards by the thousands. If your line is cranking out simple boards with dozens of identical connectors, a wave solder pot will outperform selective systems every time.
But here’s the thing. Most production lines in 2026 aren’t running pure through-hole boards. You’re probably running mixed technology. BGAs, QFNs, and a handful of through-hole connectors on the same assembly. That changes the math fast.
When selective soldering usually makes more sense:
- Boards with mixed SMT and through-hole components
- High-density layouts where components sit close together
- Heat-sensitive parts that cannot take thermal stress
- Any assembly requiring IPC Class 3 reliability standards
- Production runs where rework costs eat into margins
Selective soldering processes joints sequentially or in small groups. That takes longer per board for complex assemblies with hundreds of through-hole joints. But you skip the pallet costs, the changeover time, and the rework from solder hitting places it shouldn’t.
One case study showed selective soldering delivered 18% lower overall cost per board for complex mixed-technology assemblies. The slower cycle time got offset by reduced rework, fewer scrap boards, and minimal tooling investment.
The decision really comes down to your board mix, your volume, and how much rework is currently eating your lunch.
Common Defects Selective Wave Soldering Helps Reduce
Here’s the thing. Selective wave soldering cuts down a lot of defects, but it’s not magic. You still need to run the process right or you’ll trade one problem for another.
The good news is that targeted soldering genuinely helps with the defects that plague mixed-technology boards. Because solder stays localized, you see less bridging between nearby pins. Heat-sensitive BGAs and QFNs stay cool since they’re nowhere near the solder fountain. And you get far less contamination around components that don’t need solder touching them.
But watch out for these issues even with selective soldering:
- Poor hole fill happens when flux coverage is weak or preheat temps are too low
- Bridging still occurs if nozzle height is off or solder volume runs too high
- Solder skips show up when the program has wrong positioning or fountain pressure drops
- Icicles form from excess solder and wrong withdrawal angles
High-value assemblies near BGAs and QFNs benefit most from the localized approach. One cold joint on a reliability-critical module can mean a field failure that costs way more than the rework.
| Defect | Likely Cause | Inspection Method | Corrective Action |
|——–|————–|——————-|——————-|
| Insufficient hole fill | Low preheat, short dwell | Cross-section, X-ray | Raise temp, extend contact |
| Bridging | Nozzle too close, excess solder | AOI, visual | Recalibrate height, reduce volume |
| Solder skips | Wrong program, pump issue | AOI, manual check | Verify path, check fountain pressure |
| Icicles | Excess solder, poor peel-off | Visual inspection | Reduce dwell, adjust withdrawal angle |
The process works when you tune flux volume, preheat profile, dwell time, and nozzle height together as a system. Get those four right and your defect rates drop fast.
How to Choose a Selective Wave Solder Machine for High-Reliability Production
This is where procurement gets real. You need a machine that fits your production floor, talks to your existing systems, and keeps running when it matters most. Here’s what actually matters when you’re spending serious money on a selective wave solder machine in 2026.
Match the hardware to your boards.
Check maximum board size and component clearance requirements. More nozzle options means more flexibility for different connector sizes. Solder pot capacity affects how often you need to drain and refill. Lead-free compatibility (SAC305 runs at 265 to 280 degrees Celsius) is non-negotiable in 2026. Nitrogen flow control directly impacts dross and wetting quality.
Operational fit determines whether the machine becomes an asset or a bottleneck.
MES integration matters for traceability, especially in automotive and aerospace where you need to link every board to its process parameters. Programming workflow affects changeover time on high-mix lines. Maintenance access and spare parts availability affect your actual uptime, not just the spec sheet numbers. Supplier support and training determine how fast your team gets productive.
Run the numbers on ROI.
A selective wave solder machine typically costs more upfront than a basic wave solder pot, but the savings stack up fast. Facilities report first-pass yield improvements from around 91% to over 99.5% within the first quarter of operation. Defect rates drop from 1,000-5,000 DPMO (hand soldering) to 50-200 DPMO. Less rework, minimal fixturing costs, and reduced dross all add to your bottom line. For automotive safety-critical modules running to IPC Class 3 standards, the quality protection alone justifies the investment.
From Our Experience: When evaluating machines, check nozzle flexibility first. Can the system handle your current joint sizes plus future boards with larger connectors? Next, look at nitrogen control precision, programming software usability, conveyor compatibility with your existing line, maintenance access for quick changeovers, and process traceability features. These factors drive your actual uptime and defect rates, not just the purchase price.
| Factor | What to Evaluate | Why It Matters |
|——–|——————|—————-|
| Board Size | Max dimensions, clearance under nozzle | Determines what boards you can run |
| Nozzle Options | Standard, odd-form, automatic changing | Flexibility for mixed board types |
| Solder Pot | Capacity, dual-pot support, lead-free compatible | Reduces changeover, handles SAC305 |
| Nitrogen Control | Flow precision, purity monitoring | Cuts dross 85-95%, improves wetting |
| Cycle Time | BPH, changeover speed | Impacts throughput on high-mix lines |
| MES Integration | Traceability, IPC-A-610 compliance | Meets automotive/aerospace documentation needs |
| Service | Response time, spare parts, training | Keeps your line running |
The right selective wave solder machine isn’t the cheapest option on the floor. It’s the one that fits your line, meets your quality standards, and doesn’t eat your maintenance team’s time.
Implementation Best Practices for Existing SMT Lines
Adding selective wave soldering to an existing SMT line isn’t just about dropping a machine into place. You need to plan the integration, validate the process, and then keep everything running smoothly once you scale up.
Integration Planning
Start with your line layout. The selective solder machine needs to fit between your SMT placement line and your inspection station. Board handling matters here too. Your conveyors need to match heights and widths so boards flow without jamming. Fixture strategy is next. Some boards might need bottom-side support pallets to prevent flexing during soldering.
Upstream inspection should catch any SMT defects before they hit the solder station, and downstream AOI or X-ray catches any issues after. Data flow connects everything to your MES so each board links to its process parameters.
Operator training goes deeper than just running the machine. Your team needs to understand flux chemistry, preheat profiles, and how to spot early warning signs before defects escape.
Process Validation Before Production
Run trial boards first. Check every joint with thermal profiling to confirm temperatures stay in range. Flux tests validate activity and coverage. Solderability checks on your PTH barrels catch any plating issues before they create field failures. First article inspection with full documentation proves the process works, and defect tracking during validation tells you if parameters need adjustment.
Ongoing Control
Preventive maintenance keeps nozzles clean, pumps calibrated, and nitrogen filters fresh. Recipe change control means any parameter updates go through a formal review. SPC monitoring tracks critical variables in real time, and periodic quality audits make sure nothing drifts.
| Validation Step | Purpose | Acceptance Criteria |
|—————–|———|———————|
| Thermal profiling | Verify joint temperatures | Within 5C of target |
| Flux activity test | Confirm flux performance | Meets specification |
| First article inspection | Validate process setup | Zero critical defects |
| SPC monitoring | Track process stability | Cpk 1.33 minimum |
This approach gets your selective soldering station running right and keeps it that way once you’re at full production speed.
Conclusion: When Selective Wave Soldering Is the Right Choice
Here’s the decision rule that works in most shops. Selective wave soldering is your best bet when you have dense, mixed-technology boards with surface mount parts sitting next to through-hole joints, and reliability standards that demand low defect rates. If full-board wave soldering would force you to mask half your board or risk cooking nearby BGAs and QFNs, you’re already in selective territory.
Equipment selection comes down to five questions. What board designs are you running? What volumes matter? How tight are your process control requirements? Does the machine fit your existing line? And what’s the real total cost over five years, not just the sticker price?
Decision Checklist: Is Selective Wave Soldering Right for You?
- [ ] Mixed SMT and through-hole components on the same board
- [ ] High-density layouts with components close together
- [ ] Heat-sensitive parts that can’t handle full wave exposure
- [ ] IPC Class 2 or Class 3 reliability requirements
- [ ] Frequent changeovers between different board types
- [ ] Current defect rates above 200 DPMO on through-hole joints
- [ ] Need for full process traceability (automotive, aerospace)
If you checked three or more, selective soldering probably belongs in your line.
Next Steps to Move Forward
Audit your current defect data first. Know where you stand before you compare options. Pull your board designs and map out which assemblies have the most mixed-technology exposure. Run the economics on selective versus wave soldering for those specific boards. Then request process trials with your actual production panels.
Most equipment vendors in 2026 will run trials on your boards. That’s the only way to know if their system handles your thermal mass, your hole geometries, and your throughput needs.
Expert Perspective: [Author Name], process engineering specialist, recommends starting with your worst-performing through-hole assemblies. Those are the boards where selective soldering shows the fastest ROI and the clearest quality improvement. Get those right first, then expand to the rest of your mixed-technology line.
The PCB assembly market keeps growing, and mixed-technology boards are leading that growth. Getting your through-hole soldering right today positions your operation for the demand coming down the line.
