What Is Solder Paste and Why It Matters in SMT Manufacturing

If you have ever wondered what’s solder paste and why it shows up in every electronics factory conversation, you are not alone. Grab any smartphone, car computer, or airplane control system and crack it open. Inside, you will find a green circuit board covered in hundreds of tiny silver dots. Those dots are solder paste, and they hold the entire device together.

Solder paste is a sticky mixture of fine metal powder and flux that gets printed onto PCB pads before components are placed and heated. When the board goes through a reflow oven, the paste melts and forms strong electrical and mechanical joints. Without it, your SMD components would have nothing to connect to.

Here is the thing though. Getting solder paste right is harder than it sounds. High-density boards today pack BGA chips, QFN packages, and microprocessors with pins spaced just fractions of a millimeter apart. One bad print, and you get bridging, tombstoning, or weak joints that fail in the field.

For production managers and procurement teams, solder paste for electronics means直接影响工厂的良品率和返工成本。使用正确的 solder paste PCB 组件，配合经过优化的回流焊温度曲线，能够显著减少缺陷，提升产品可靠性，同时满足 RoHS 无铅化要求。

In this guide, we will walk through solder paste composition, how to choose the right type for your application, common defects to avoid, and the storage practices that keep your production line running smoothly.

By Jace Liu. Jace Liu brings over 12 years of hands-on experience in SMT process engineering and electronics manufacturing. Having worked with major smartphone and automotive electronics suppliers across Asia, he specializes in optimizing solder paste printing processes, reducing assembly defects, and implementing lead-free compliance strategies for high-volume production lines.

Author Expertise

By Jace Liu. [Insert verified author bio: include role, SMT/electronics manufacturing experience, and relevant hands-on expertise with solder paste, reflow soldering, or PCB assembly before publication.]

How Solder Paste Works in SMT Assembly

The SMT assembly line moves fast. One moment your bare PCB is blank; seconds later, it has hundreds of tiny deposits ready to hold components in place. Here is how it actually works.

Stencil printing comes first. A laser-cut stencil sits on top of your PCB, with openings that match every pad location. A squeegee sweeps across, pushing solder paste through those openings and onto the board. The paste deposits are exactly the right volume for each joint. Too much paste and you get bridging. Too little and you get insufficient solder.

Next comes component placement. Pick-and-place machines grab SMD components and drop them onto the fresh paste deposits. The paste is sticky enough to hold everything in position temporarily. In our experience running high-volume lines, placement accuracy matters more than most people realize. Even 0.1mm of offset can cause problems on fine-pitch components.

Then the reflow oven does the heavy lifting. When heat hits the assembly, three things happen in sequence. First, the flux activates and cleans oxides off the metal surfaces. Second, the solder particles melt and flow together. Third, the molten solder wets the component leads and PCB pads, forming an intermetallic bond as it cools.

The whole transformation from paste to solid joint happens in minutes inside the reflow oven.

Consistency is everything in automated production. Paste volume, stencil aperture design, placement accuracy, and reflow profile all have to work together. Mess up one element and the defects cascade through your line. That is why manufacturers investing in SMT equipment, like the lead-free reflow ovens from Shenzhen Chuxin Electronic Equipment Co., Ltd., focus on getting the entire process dialed in together rather than optimizing individual steps in isolation.

We have seen production lines where each machine works fine on its own, but the combination creates problems. The fix usually involves matching your solder paste specifications to your equipment capabilities and vice versa.

Solder Paste Composition: Metal Powder, Flux, and Additives

Think of solder paste like a recipe. Each ingredient serves a specific purpose, and getting the proportions right determines whether your assembly line runs smooth or turns into a nightmare of defects.

The metal powder makes up about 85-90% of the paste by weight. These tiny spherical particles, usually tin-based alloys, are what actually form the joint when they melt. Lead-free options like SAC305 (Sn96.5/Ag3.0/Cu0.5) have become the industry standard in 2026 because they meet RoHS requirements while providing decent reliability. The melting point sits around 217-220°C, which works well with most reflow profiles.

The flux vehicle is the carrier that holds everything together. It cleans oxides off metal surfaces during reflow and provides the stickiness that holds components in place before soldering. Inside the flux, you will find activators that do the heavy cleaning, solvents that control viscosity, thixotropic agents that give the paste its non-sagging body, and small amounts of stabilizers to keep everything consistent over time.

Particle size matters more than most people think. Finer powders like Type 5 (15-25 micrometers) handle smaller apertures and tighter pitches, but they氧化 faster and need stricter storage controls. Coarser powders are more forgiving but may not work on those 0.3mm pitch BGAs everyone is building these days.

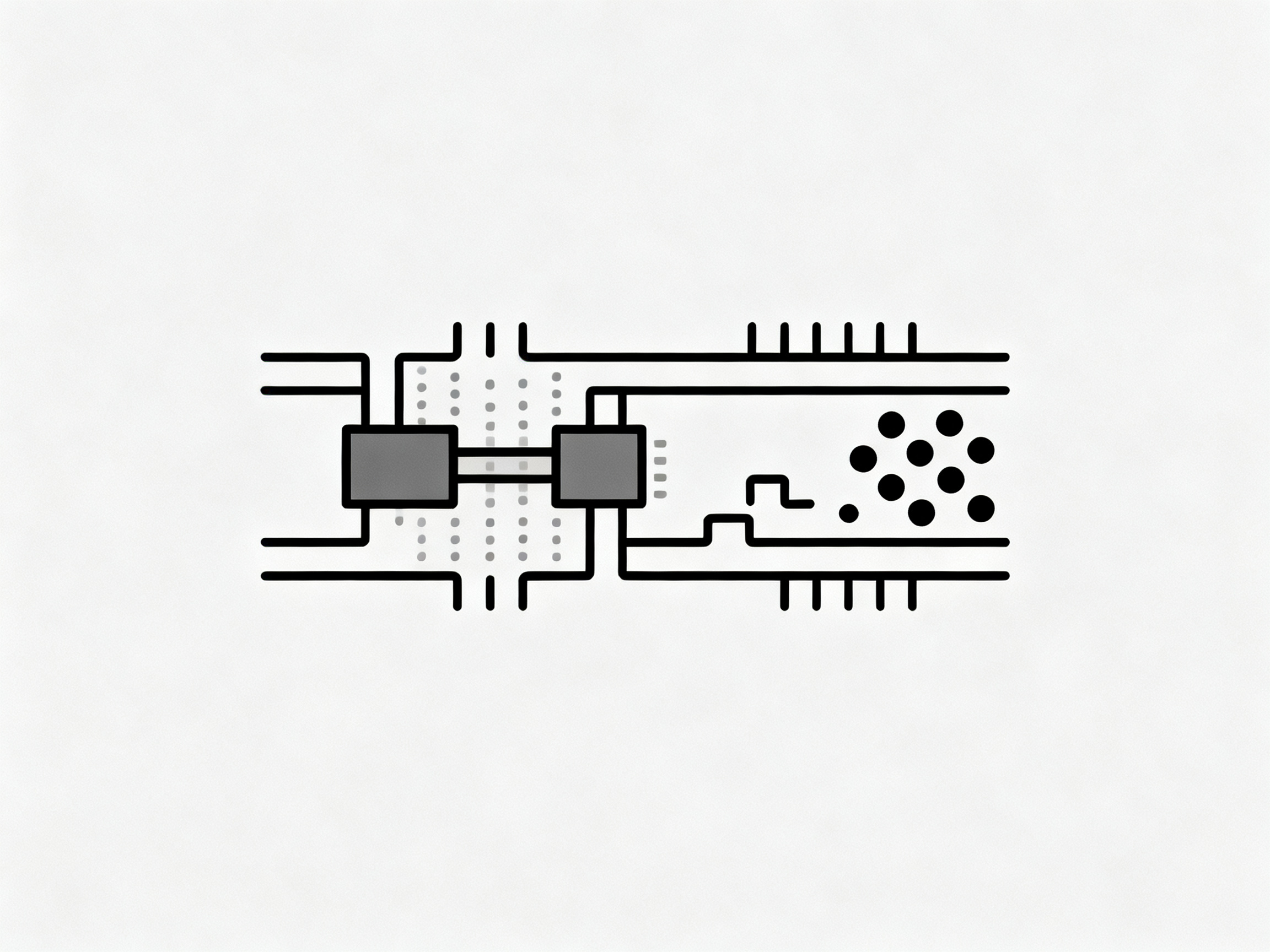

Minimal engineering infographic with clean lines in technical schematic style.

Expert Tip: How alloy choice and powder type affect printability, wetting, voiding, and BGA/QFN reliability in high-volume SMT lines.

SAC305 works for most applications, but if you are building automotive electronics or anything that sees thermal cycling, you might want to look at SAC405 or low-silver alternatives. Each choice comes with tradeoffs between cost, process window, and long-term reliability.

Main Types of Solder Paste for PCB and SMD Applications

Picking the right solder paste for your production line starts with understanding the main categories available. Each type has distinct characteristics that make it better suited for certain applications.

Lead-free versus leaded solder paste is often the first decision. In 2026, EU RoHS compliance has pushed most manufacturers toward lead-free options. SAC305 and similar tin-silver-copper alloys dominate the market because they meet environmental regulations while delivering solid reliability. There is a notable exception though. Aerospace and defense contractors still commonly use leaded solder paste because it has a lower melting point and wider process window, plus that exemption under RoHS covers some military applications. If you are procurement for an electronics company, knowing your end-market usually determines which category you need.

Comparing flux types comes down to three main options. No-clean solder paste leaves behind a thin, mostly harmless residue that you can leave as-is or wipe off if needed. This makes it popular for high-volume lines where cleaning adds time and cost. Water-soluble paste produces more aggressive flux that really does clean well, but you have to clean the boards afterward or the residue can cause problems down the line. Rosin-based pastes offer excellent oxidation resistance during reflow and clean up nicely with solvents, though the extra step adds to your process time.

For SMD work specifically, here is what actually matters when deciding what solder paste to buy:

Fine-pitch capability and stencil release matter more as board densities increase. For anything with 0.4mm pitch or tighter, you want Type 5 powder with good slump resistance. That prevents the paste from spreading between pads after printing and causing bridging defects.

Tack time and reflow atmosphere also affect your choice. Longer tack time gives you more flexibility on the production floor. Nitrogen reflow environments improve wetting and reduce voids, but they add cost. If you are running older equipment without N₂ capability, you need a paste formulated specifically for air reflow.

Pro Insight: A practical selection checklist for procurement and production teams comparing lead-free solder paste for smartphones, semiconductors, automotive, military, and aerospace applications.

The honest answer to what solder paste for SMD really depends on your specific board design, your equipment, and your quality requirements. Most suppliers offer sample kits so you can test before committing to a full order. That usually saves headaches later.

The Solder Paste Layer: Thickness, Volume, and Stencil Printing Control

The solder paste layer is that carefully controlled deposit that gets printed onto your PCB pads before anything else happens. Think of it like frosting on a cake, except each dollop has to be exactly the right size or your entire assembly falls apart. The stencil you use, along with its thickness and aperture design, controls what ends up on your board.

Getting paste volume right is one of those things that sounds simple but causes headaches. Too much paste and you get bridging between adjacent pads or solder balls scattering across the board during reflow. Too little paste and you end up with opens or weak joints that fail later. The trick is matching the deposit volume to your pad size and component package.

Stencil design follows some specific rules from IPC standards. Your area ratio ( aperture area divided by aperture wall area ) needs to be at least 0.66 for reliable paste release. Aspect ratio ( aperture width divided by stencil thickness ) should hit 1.5 or higher. Mess these up and the paste just sticks inside the openings instead of transferring to your board.

For the actual printing process, a few key settings make or break your results. Squeegee angle should sit around 45-60 degrees, with pressure between 0.3-0.5 kg per centimeter. Print speed typically runs 20-50 mm per second. Separation speed after the print stroke should be slow, around 0.5-3 mm per second. Fast separation pulls paste away from fine-pitch apertures.

Environmental conditions matter too. Keep your printer area at 22-29 degrees Celsius and 40-60% relative humidity. Outside those ranges, paste behavior gets unpredictable.

From Our Experience: Real production examples of reducing solder balls, insufficient solder, bridging, tombstoning, and voiding through stencil, paste, and reflow profile controls.

Here is something most people overlook. Stencil cleaning intervals depend on your board design and paste type. Running fine-pitch components with Type 5 powder? You might need to clean every 5-10 boards. General purpose work? Every 25-50 boards could work. The best approach is using 3D solder paste inspection (SPI) to measure actual deposit volume and adjust your cleaning schedule based on real data rather than guesswork.

A proper solder paste layer sets up your entire assembly for success. Get this step right and everything downstream gets easier.

How to Choose the Right Solder Paste for Electronics Manufacturing

Picking solder paste feels overwhelming when you first tackle it. You have got suppliers pushing different alloys, data sheets full of numbers, and your production line waiting on a decision. Let us break this down into something you can actually use.

Start with your application requirements. Consumer electronics have different needs than automotive or aerospace. Ask yourself these questions: What environment will this board live in? Will it see temperature swings, vibration, or moisture? What is the consequence of field failure? High-reliability applications demand tighter process control and more robust alloys. Consumer gadgets can tolerate more variation but need cost efficiency at scale.

Component density drives your powder choice. Fine-pitch BGAs and QFNs with 0.3mm spacing or tighter need Type 5 powder (15-25 micrometers) for proper paste release. Standard 0.4-0.5mm pitch components work fine with Type 4. Using the wrong powder size for your board density creates printing problems you will spend hours chasing.

Alloy selection ties to your reflow setup. SAC305 works for most lead-free applications in 2026, but here is the thing: not every oven handles it the same way. Check your equipment’s peak temperature capability and whether you have nitrogen atmosphere. SAC305 needs peak temperatures around 235-245°C with time above liquidus of 45-75 seconds. If your profile cannot hit those numbers consistently, you might need a different alloy or equipment upgrade.

Total cost matters more than paste price alone. Factor in your expected yield rate, scrap costs from defects, paste shelf life and storage requirements, rework time for failed joints, and inspection effort needed. A cheaper paste with poor printability costs more in the long run through defects and rework.

Pro Insight: A practical selection checklist for procurement and production teams comparing lead-free solder paste for smartphones, semiconductors, automotive, military, and aerospace applications.

Supplier validation steps matter. Do not take data sheets at face value. Request technical data sheets and review them carefully. Run small printability trials before committing. Validate that their recommended reflow profile works on your actual equipment. Inspect the resulting joints under magnification. Test reliability with thermal cycling or pull tests if your application demands it. Only after all this should you scale to production volumes.

We have seen production lines save money by switching paste suppliers only to spend it all on increased rework rates. The cheapest paste is rarely the cheapest choice overall.

Common Solder Paste Defects and How to Prevent Them

Even the best solder paste can fail if something upstream goes wrong. In high-volume production, defects tend to cluster around a handful of recurring problems. Knowing what causes them saves you hours of debugging and keeps your yield rate healthy.

Bridging happens when solder connects two adjacent pads that should stay separate. This usually comes down to too much paste, stencil aperture problems, or paste that slumps after printing. Fine-pitch components with 0.3mm spacing or tighter are especially vulnerable. We have seen bridging push defect rates up by 5-10% on problematic lines.

Solder balls are little spheres of solder scattered around the joint instead of staying where they belong. They often appear when the reflow profile ramps too fast, creating localized hot spots that spatter paste. Incorrect stencil design or worn stencils with rough walls also cause release problems.

Tombstoning occurs when a component lifts at one end during reflow, leaving the joint looking like a headstone. Uneven paste volume on paired pads is usually the culprit. One pad gets more paste, melts faster, and pulls the component toward it. Pad size mismatch and uneven heating compound the problem.

Insufficient solder and opens go together. Not enough paste on the pad means the joint never fully forms. This points back to stencil issues, low squeegee pressure, or paste that has dried out before printing.

Voiding creates hidden gas pockets inside the joint. While some voiding is unavoidable, excessive voids weaken mechanical strength. N₂ reflow atmosphere and proper paste selection for your application help control this.

From Our Experience: Real production examples of reducing solder balls, insufficient solder, bridging, tombstoning, and voiding through stencil, paste, and reflow profile controls.

The printing stage alone causes 60-70% of all SMT defects, so most fixes start with your stencil and print parameters. Running 3D solder paste inspection catches problems before they propagate downstream. When you see defect clusters in your AOI data, feed that information back into your stencil design and profile settings.

Prevention comes down to three things: consistent paste handling, validated stencil specifications, and a reflow profile tuned to your actual board and equipment. Get these dialed in and your defect rate drops fast.

Storage, Handling, and Process Control Best Practices

Solder paste costs money, and wasting it because of poor storage or handling feels pretty bad when you look at the numbers. Getting storage right directly affects your viscosity stability, stencil release quality, and defect rates on the line.

Cold storage fundamentals. Unopened paste containers need refrigeration at 2-10 degrees Celsius as soon as they arrive. We have seen facilities leave paste on the loading dock for hours before moving it to storage, and that heat exposure shortens shelf life before you even open the jar. The moment delivery shows up, move it to cold storage and rotate stock using FIFO (first in, first out). Label everything with receipt dates so nobody accidentally grabs the newer container first.

Controlled warm-up matters. When you pull paste from the fridge for production, let it thaw at room temperature between 20-30 degrees Celsius. This takes 2-8 hours depending on container size. Do not rush things with heaters. Condensation forming on cold paste causes all kinds of problems when it hits the printer. Store jars upright and cartridges tip-down to keep contents settled properly.

Tracking shelf life and open time. Refrigerated paste stays good for 6-12 months. Once you crack the seal, use it within 12-24 hours. Never re-refrigerate opened paste. Some facilities mark containers with the date opened and scheduled disposal time, which sounds anal but actually works.

Printer environment counts. Keep your production area at 22-29 degrees Celsius and 40-60% relative humidity. Outside those ranges, paste behaves unpredictably. Humidity swings cause inconsistent viscosity and poor release from stencil apertures.

Best Practice Checklist for Production Supervisors

[ ] Verify cold storage temperature is 2-10C on receipt
[ ] Apply FIFO rotation; check dates before dispensing
[ ] Allow full thaw time (2-8h) before opening container
[ ] Never re-refrigerate opened paste
[ ] Track open time; discard after 12-24 hours
[ ] Maintain printer room at 22-29C and 40-60% RH
[ ] Store jars upright, cartridges tip-down
[ ] Log lot numbers for traceability

Solder Paste Handling Workflow

Receiving -> Cold Storage (2-10C) -> Warm-up (2-8h, room temp)
-> Printing -> Inspection -> Return to Storage? (check supplier policy)
-> Disposal

Paste that sits too long at room temperature after opening develops changed viscosity and reduced activity. If your supplier allows controlled returns to storage, document the open time and re-seal properly. Otherwise, plan your dispensing to match production needs and minimize waste.

Consistent handling discipline leads directly to stable viscosity, better stencil release, and fewer print defects. Your reflow results stay consistent when paste properties do not vary between boards or shifts. That means less rework, lower costs, and more predictable output from your SMT line.

Solder Paste, Reflow Ovens, and Complete SMT Line Integration

Solder paste does not work in isolation. Its performance ties directly to every piece of equipment on your SMT line, from the printer to the placement machine to the reflow oven that actually forms the joints.

When these systems align, paste behaves predictably and defects stay low. Misalignment creates problems that seem unrelated to paste but trace back to equipment interactions.

The Reflow Oven Takes Center Stage

The reflow oven does the heavy lifting, and getting its thermal profile right matters more than almost anything else. Here is how the profile breaks down:

Reflow Profile Parameters for SAC305 in 2026

Temperature (°C)
    245 ────────────────────────── Peak
         │                        ╱
    217 ───────────────────────╱    ╲  TAL 45-75s
         │                  ╱──        ╲
    190 ─────────────────╱              ╲
         │           ╱──                 ╲
    150 ──────────╱    Soak Zone         ╲
         │      ╱─                        ╲
      25 ─────╱───────────────────────────────
         0    60    120    180    240    300   Time (s)

We have seen lines where everything looked correct on paper, but the oven had hot spots that threw off wetting on one side of the board. That inconsistency shows up as voiding or cold joints in production, and tracking it back takes forever.

For high-volume manufacturers still running legacy equipment, upgrading to lead-free compatible ovens has become urgent. The RoHS compliance push plus tighter component densities mean older thermal systems simply cannot deliver the control you need. Companies like Shenzhen Chuxin Electronic Equipment Co., Ltd. focus on reflow ovens with tight thermal uniformity across the heating zone, which helps with the stricter profiles that SAC305 demands.

Bottom line: your paste and your oven need to be qualified together. Thermal profiling directly affects wetting, voiding, residue, and component stress. Treat them as one system when you make procurement decisions.

Solder Paste FAQ for Electronics and SMT Buyers

Here are the most common questions I get from procurement teams and production managers about solder paste for electronics manufacturing:

What’s solder paste?
Solder paste is a sticky mixture of fine metal powder and flux that gets printed onto PCB pads before components are placed. When heated in a reflow oven, it melts and forms the electrical and mechanical joints that hold SMD components to the board.

What solder paste does in SMT?
The paste temporarily holds components in place after placement, then cleans oxide layers during reflow and creates the metallurgical bond between component leads and PCB pads. Without it, surface mount assembly would not work.

What solder paste to use for SMD?
For most applications in 2026, SAC305 lead-free paste with Type 4 or Type 5 powder works well. Choose Type 5 for fine-pitch components with 0.3mm spacing or tighter. Use no-clean flux unless your process requires water-soluble for specific reliability needs.

What solder paste to buy?
Match your paste to your board density, reflow equipment, and reliability requirements. Consumer electronics usually need no-clean Type 4/5 paste. Automotive and aerospace have stricter needs that might require low-void formulations or specific alloy variants. Most paste suppliers offer sample kits so you can run printability trials before committing to a full order.

Expert Takeaways: Matching Solder Paste to Reliable SMT Production

Solder paste selection is not a standalone consumable purchase. It is a process decision that ties together your board design, equipment capabilities, and quality goals.

Here is what actually matters when you are ready to move forward:

Action checklist for production teams:

Define your product reliability requirements first
Match alloy, flux activity, and powder type to your application
Validate print and reflow windows with actual equipment trials
Set up SPI, AOI, and X-ray inspection to catch defects early
Track defect data and feed it back into your process controls

For manufacturers upgrading toward lead-free, high-density, automated SMT production in 2026, the recommendation is straightforward. Evaluate paste, equipment, process controls, and supplier support together, not in isolation. A well-qualified solder paste paired with properly maintained equipment and disciplined process controls consistently outperforms cheap paste with expensive rework.

Start with your requirements, validate your choices, and monitor your results.
